Cisco ASR 1002 Hardware Installation Guide

•
Three Cisco ASR 1000 Series SPA Interface Processors (SIPs)
•
Twelve SPA slots
•
Two embedded services processors (Cisco ASR1000-ESP10, Cisco ASR1000-ESP20, Cisco
ASR1000-ESP40, or Cisco ASR1000-ESP100)
Cisco ASR1000-ESP40 and Cisco ASR1000-ESP100 are supported on Cisco ASR 1006 Router only if
Cisco ASR1000-RP2 is installed on the router.
Note
•
Two Cisco ASR 1000 Series Route Processors (Cisco ASR1000-RP1 or Cisco ASR1000-RP2
)
•
Dual (redundant) AC and DC power supplies
This section contains the following topics:
Front View
The following image shows the Cisco ASR 1006 Router with modules and filler plates installed.

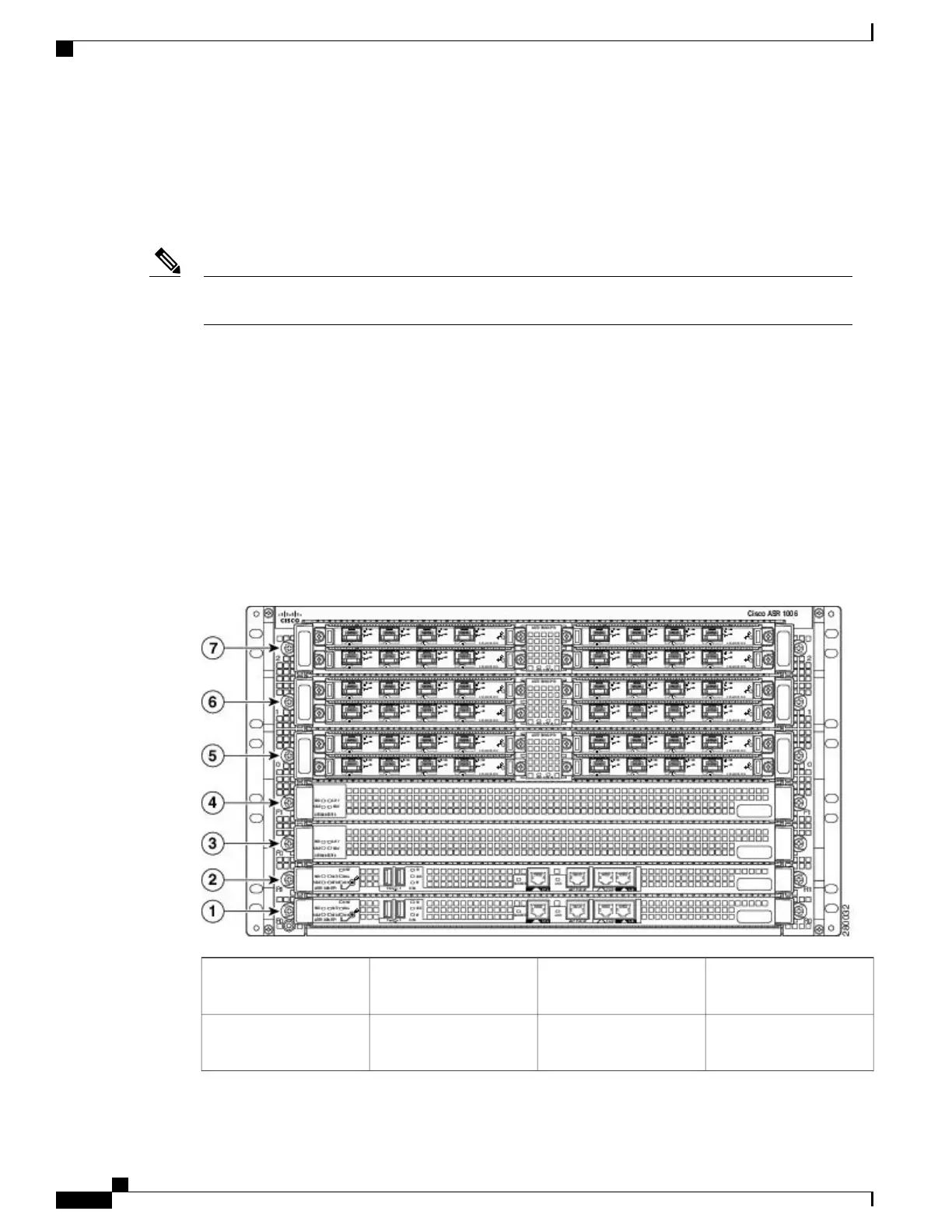

Figure 34: Cisco ASR 1006 Router — Front View
ASR 1000 Series SIP slot
0
5Slot R0 with ASR 1000
Series RP
1
ASR 1000 Series SIP slot
1
6Slot R1 with ASR 1000
Series RP
2
Cisco ASR 1000 Series Router Hardware Installation Guide
140
Cisco ASR 1006 Router Overview and Installation
Front View

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
