Cisco ASR 1002 Hardware Installation Guide

Rear View

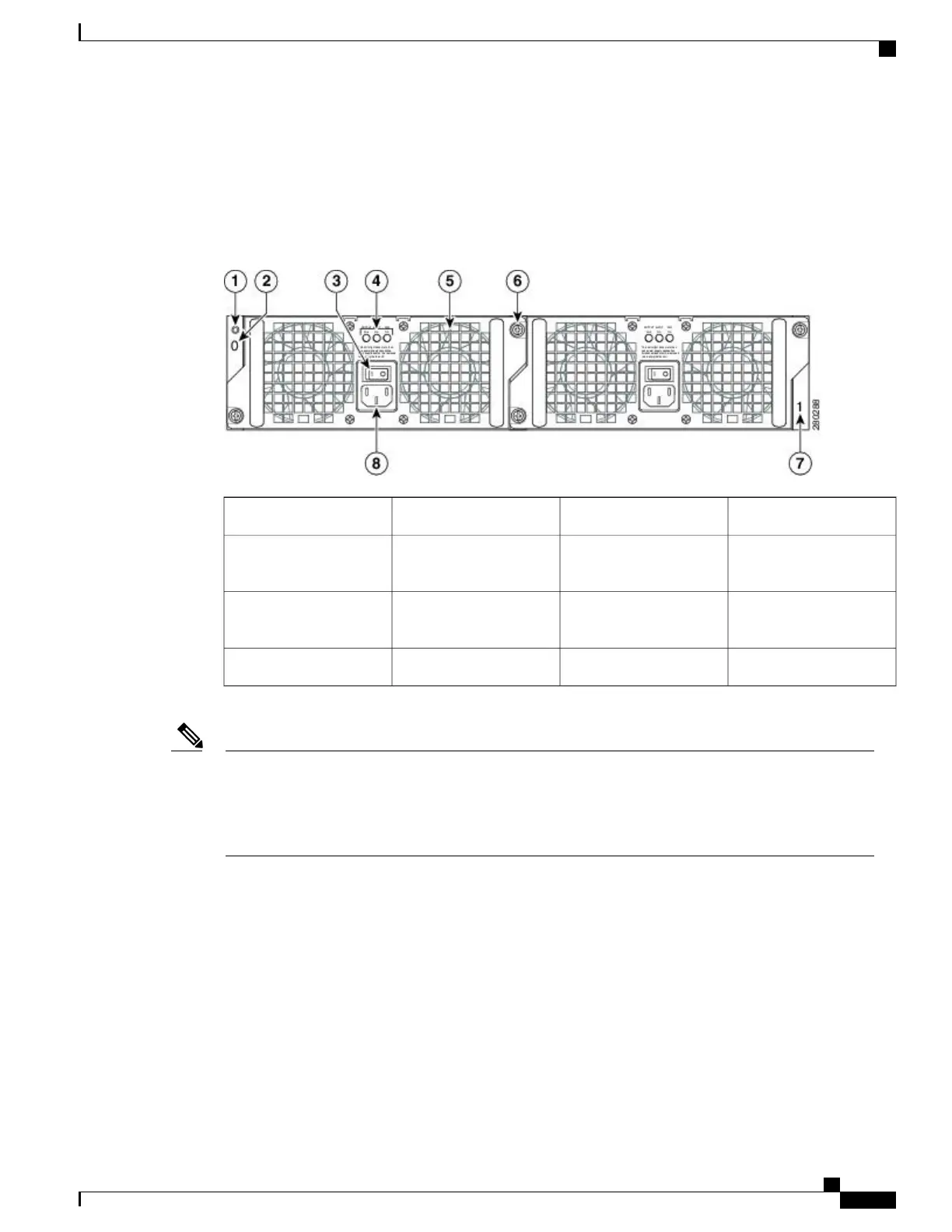

The following image shows the rear of the Cisco ASR 1002-F Router with AC power supplies installed.
Figure 116: Cisco ASR 1002-F Router With AC Power Supplies — Rear View
Fan5Chassis ESD socket1
Captive installation screw6AC power supply slot 0
label
2
AC power supply slot 1
label
7AC power supply On
(|)/Off (O) switch
3
AC power inlet8AC power supply LEDs4
On the side of the Cisco ASR 1002-F Router there is an eUSB panel door and the grounding lug as shown
in the “Cisco ASR 1002-F Router Chassis Ground Lug Location and eUSB Side Panel Door” figure in the
Attaching a Chassis Ground Connection section. This panel door must not be opened. There is a Do Not
Tamper label on the panel door. Do not remove the label. If there is a problem with the eUSB flash card,
then the chassis should be returned.
Note
Cisco ASR 1000 Series Router Hardware Installation Guide
277
Cisco ASR 1002-F Router Overview and Installation
Rear View

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
