Cisco ASR 1002 Hardware Installation Guide

The follwing image shows the rear of the Cisco ASR 1002-F Router with DC power supplies installed.

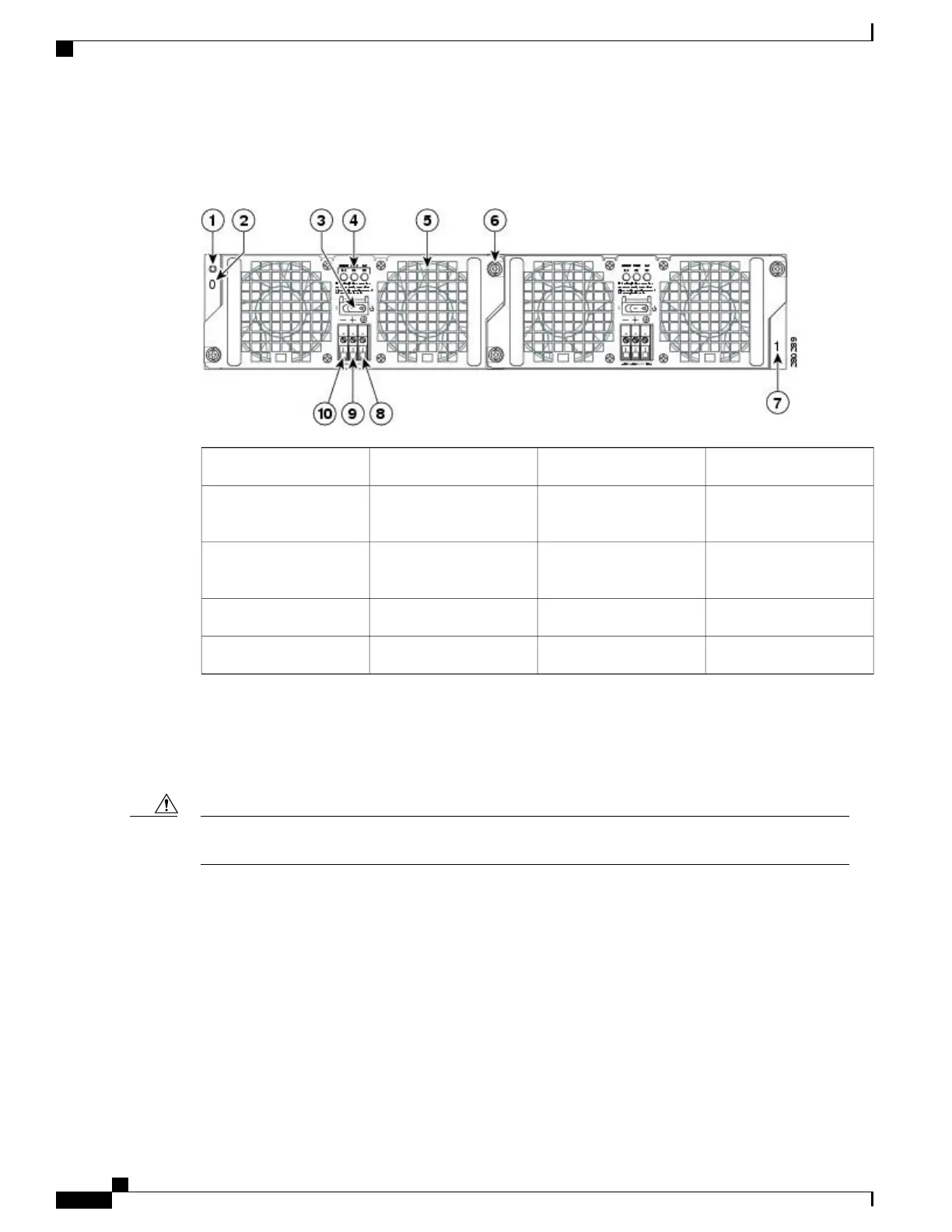

Figure 117: Cisco ASR 1002-F Router With DC Power Supplies — Rear View
Captive installation screw6Chassis ESD socket1
DC power supply slot 1
label
7DC power supply slot 0
label
2
Ground lead8DC power supply
Standby/On (|) switch
3
Positive lead9DC power supply LEDs4
Negative lead10Fan5
Internal fans draw cooling air into the chassis and across internal components to maintain an acceptable
operating temperature. The fans are located at the rear of the chassis. A two-hole ground connector lug is
located on the side of the chassis. Two power supplies, either two AC power supplies or two DC power
supplies, are accessed from the rear of the router.
Use only AC power supplies or DC power supplies in the Cisco ASR 1002-F Router. Do not mix power
supply types.
Caution
Cisco ASR 1002-F Router Slot Numbering
The Cisco ASR 1002-F Router contains:
• One Cisco integrated RP— R0
• One integrated Cisco ASR1000-ESP-F forwarding processor— F0
• One integrated ASR1002-SIP10-F—slot 0
• 4-Gigabit Ethernet built-in interface—slot 0/0
Cisco ASR 1000 Series Router Hardware Installation Guide
278
Cisco ASR 1002-F Router Overview and Installation
Rear View

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
