Cisco ASR 1002 Hardware Installation Guide

•
Connecting Power to Cisco ASR 1004 Router, page 208
•
Connecting a Terminal to the Cisco ASR Series 1000 Route Processor Console Port, page 215
•
Connecting the Network Management and Signal System Cables, page 218
Cisco ASR 1004 Router Description
The Cisco ASR 1004 Router system consists of the following system level components:
•
Two Cisco ASR 1000 Series SPA Interface Processor (Cisco ASR1000-SIP10 or Cisco ASR1000-SIP40)
•
One Cisco ASR 1000 Series Embedded Services Processor (Cisco ASR 1000-ESP10, Cisco ASR
1000-ESP20, or Cisco ASR1000-ESP40)
•
One Cisco ASR 1000 Series Route Processor (Cisco ASR1000-RP1 or Cisco ASR1000-RP2)
•
Dual (redundant) AC and DC power supplies
This section contains the following topics:
Front View
The following image shows the Cisco ASR 1004 Router with modules and filler plates installed.

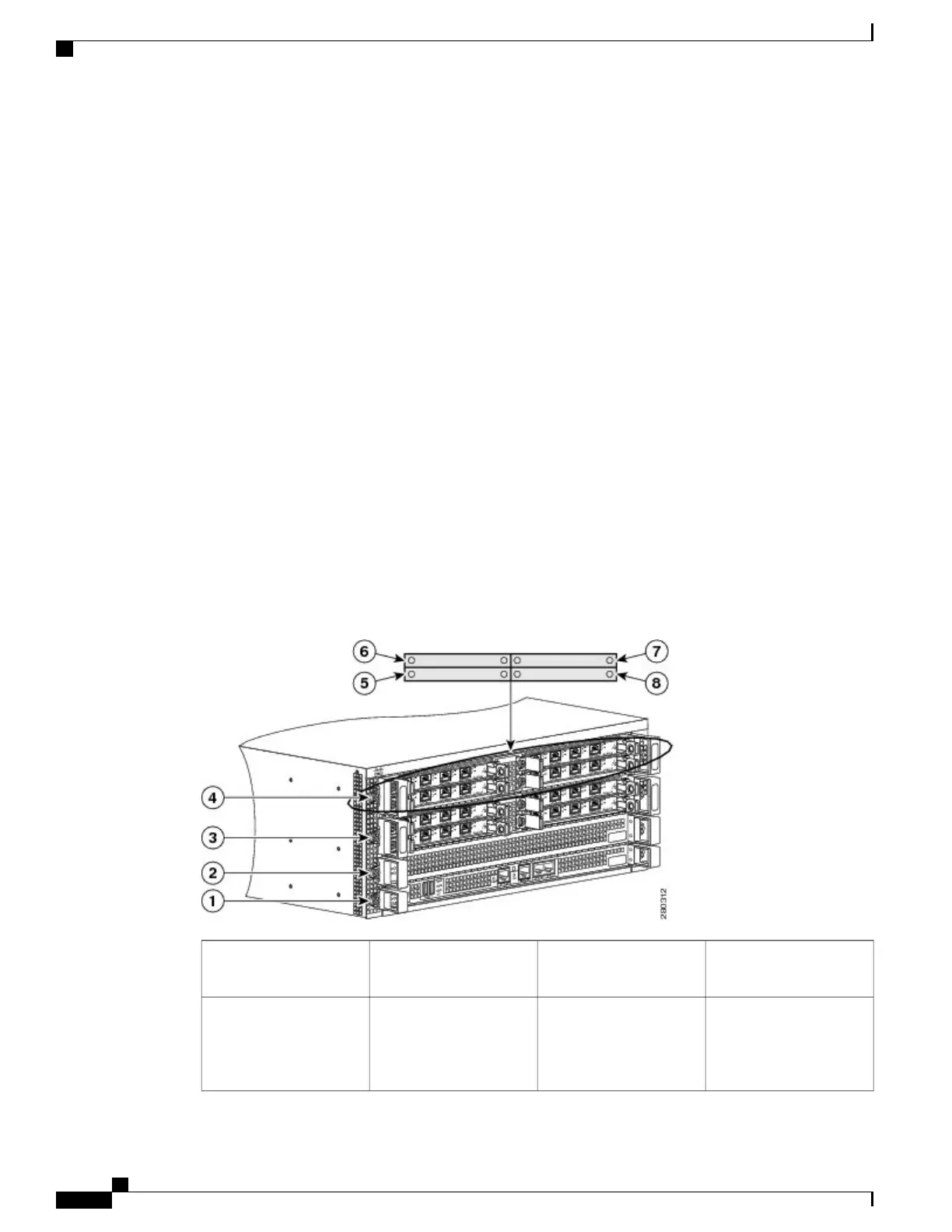

Figure 58: Cisco ASR 1004 Router — Front and Side View
SPA subslot 25Slot R0 with ASR 1000
Series Route Processor
1
SPA subslot 06Slot F0 with Cisco
ASR1000-ESP10, Cisco
ASR1000-ESP20, or
Cisco ASR1000-ESP40
2
Cisco ASR 1000 Series Router Hardware Installation Guide
182
Cisco ASR 1004 Router Overview and Installation
Cisco ASR 1004 Router Description

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
