Cisco ASR 1002 Hardware Installation Guide

Step 3
Attach the grounding lug to the wire on the left to avoid having the grounding wire overlapping the power supply.
Step 4
Locate the chassis ground connector on the side of your chassis.
Step 5
The following image shows how to attach the grounding lug to the chassis ground connector.

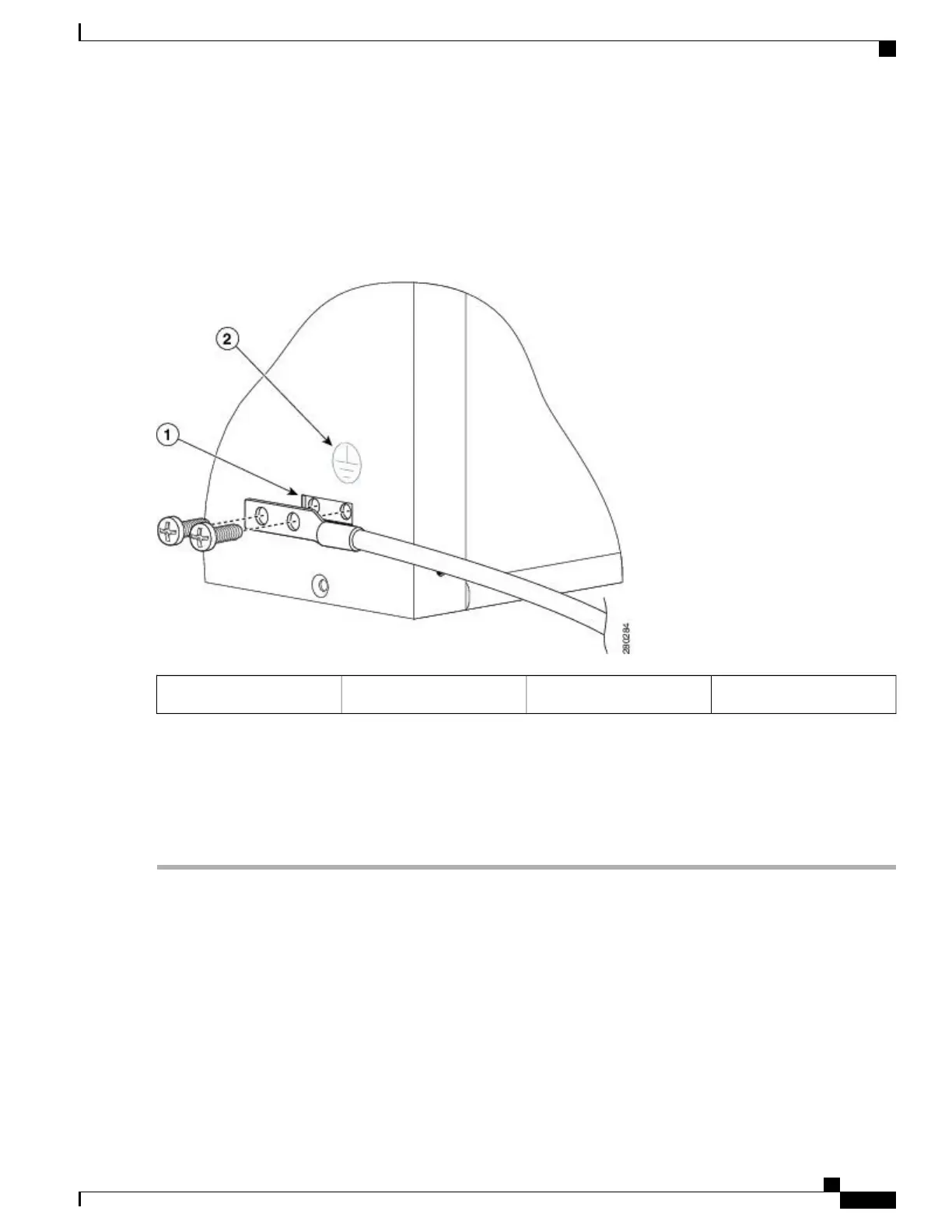

Figure 161: Attaching a Grounding Lug to the Chassis Ground Connector
Ground symbol2Chassis ground connector1
Step 6
Insert the two screws through the holes in the grounding lug.
Step 7
Use the Number 2 Phillips screwdriver to carefully tighten the screws until the grounding lug is held firmly to the chassis.
Do not overtighten the screws.
Step 8
Connect the opposite end of the grounding wire to the appropriate grounding point at your site to ensure an adequate
chassis ground.
What to Do Next
This completes the procedure for attaching a chassis ground connection. Go to the following cabling sections
for information on attaching cables.
Connecting the SPA Cables
The instructions for connecting the SPA cables installed in the Cisco ASR 1002-X Router are contained in
the respective configuration documents for each port adapter. For example, if you are connecting the optical
Cisco ASR 1000 Series Router Hardware Installation Guide
349
Cisco ASR 1002-X Router Overview and Installation
Connecting the SPA Cables

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
