Equipment Shelf or Tabletop Installation
At least two people are required to lift the chassis onto a tabletop or platform. To prevent injury, keep your
back straight and lift with your legs, not your back. Statement 164

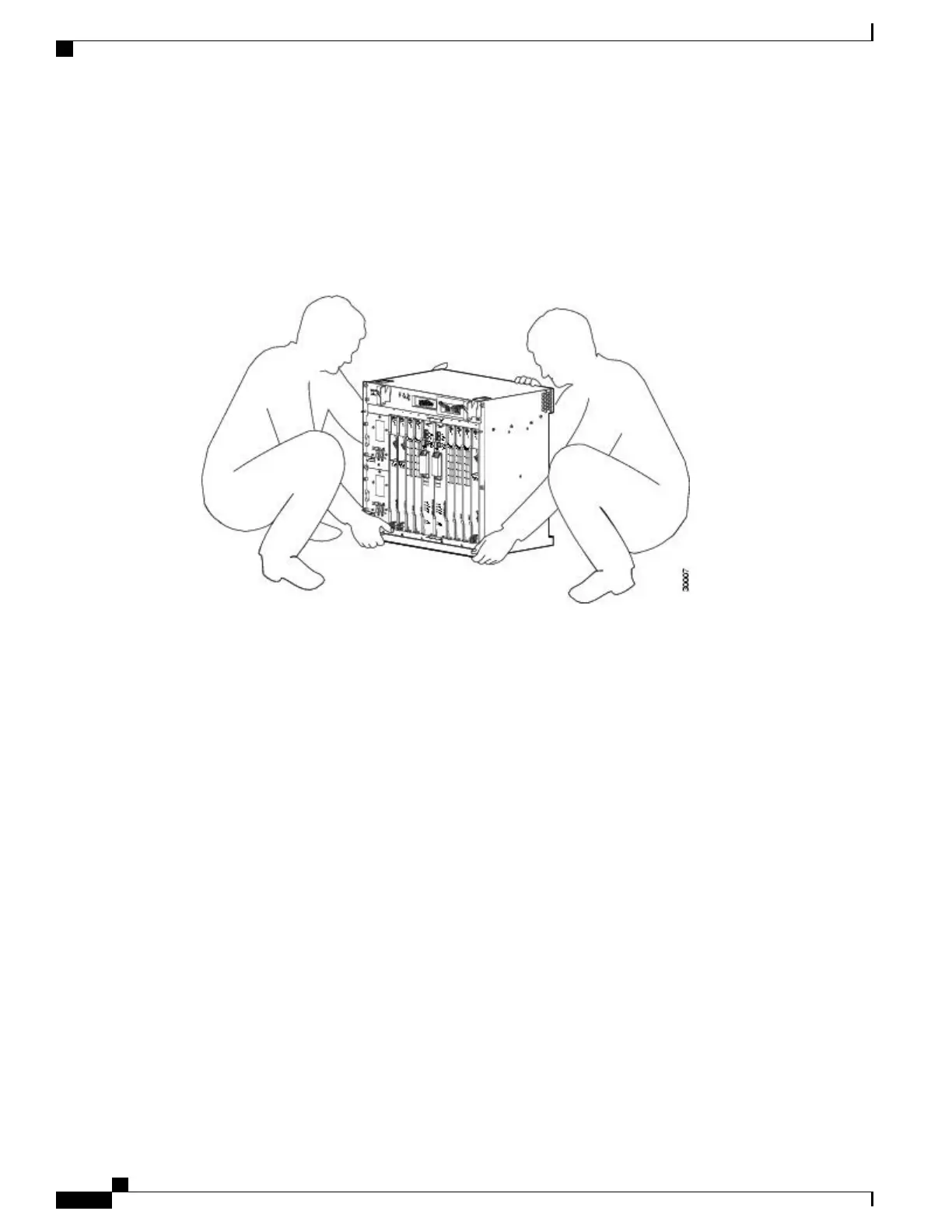

Figure 38: Lifting the Chassis
The chassis in the image does not represent the Cisco ASR 1000 Series Router. This is only an example of
how to lift a Cisco chassis.
SUMMARY STEPS
1.
Attach the front rack-mount brackets. Locate the threaded holes in the front sides of the chassis (first holes
beyond the vent holes) and use the package of black screws that shipped with the chassis.
2.
Align the front rack-mount bracket to one side of the chassis.
3.
Insert and tighten the screws on one side.
4.
Repeat Step 2 through Step 3 on the other side of the chassis. Use at least 4 screws to secure the rack-mount
brackets to the chassis.
5.
Gather the two cable-management brackets and screws shipped with the chassis. The following image
shows the cable-management brackets attached on the front of the Cisco ASR 1006 Router when the
chassis is placed on a table top or equipment shelf.
6.
Screw the cable-management bracket to each side of the rack-mount brackets already attached to the
chassis. For each cable-management bracket, use two screws from the package of four screws.
7.
Ensure that all the screws are securely tightened.
8.
Go to the Attaching a Chassis Ground Connection, on page 161 for instructions about completing the
installation.
Cisco ASR 1000 Series Router Hardware Installation Guide
146
Cisco ASR 1006 Router Overview and Installation
Equipment Shelf or Tabletop Installation

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
