Cisco ASR 1002 Hardware Installation Guide

DETAILED STEPS
Step 1
Attach the front rack-mount brackets. Locate the threaded holes in the front sides of the chassis (first holes beyond the
vent holes) and use the package of black screws that shipped with the chassis.
Step 2
Align the front rack-mount bracket to one side of the chassis.
Step 3
Insert and tighten the screws on one side.
Step 4
Repeat Step 2 through Step 3 on the other side of the chassis. Use at least 4 screws to secure the rack-mount brackets to
the chassis.
The cable-management brackets are installed on the chassis after you install the chassis rack-mount brackets.Note
Step 5
Gather the two cable-management brackets and screws shipped with the chassis. The following image shows the
cable-management brackets attached on the front of the Cisco ASR 1006 Router when the chassis is placed on a table
top or equipment shelf.
Make certain that the cable-management ‘U’ feature device has the open end pointing upwards when you attach
it to the chassis.
Note

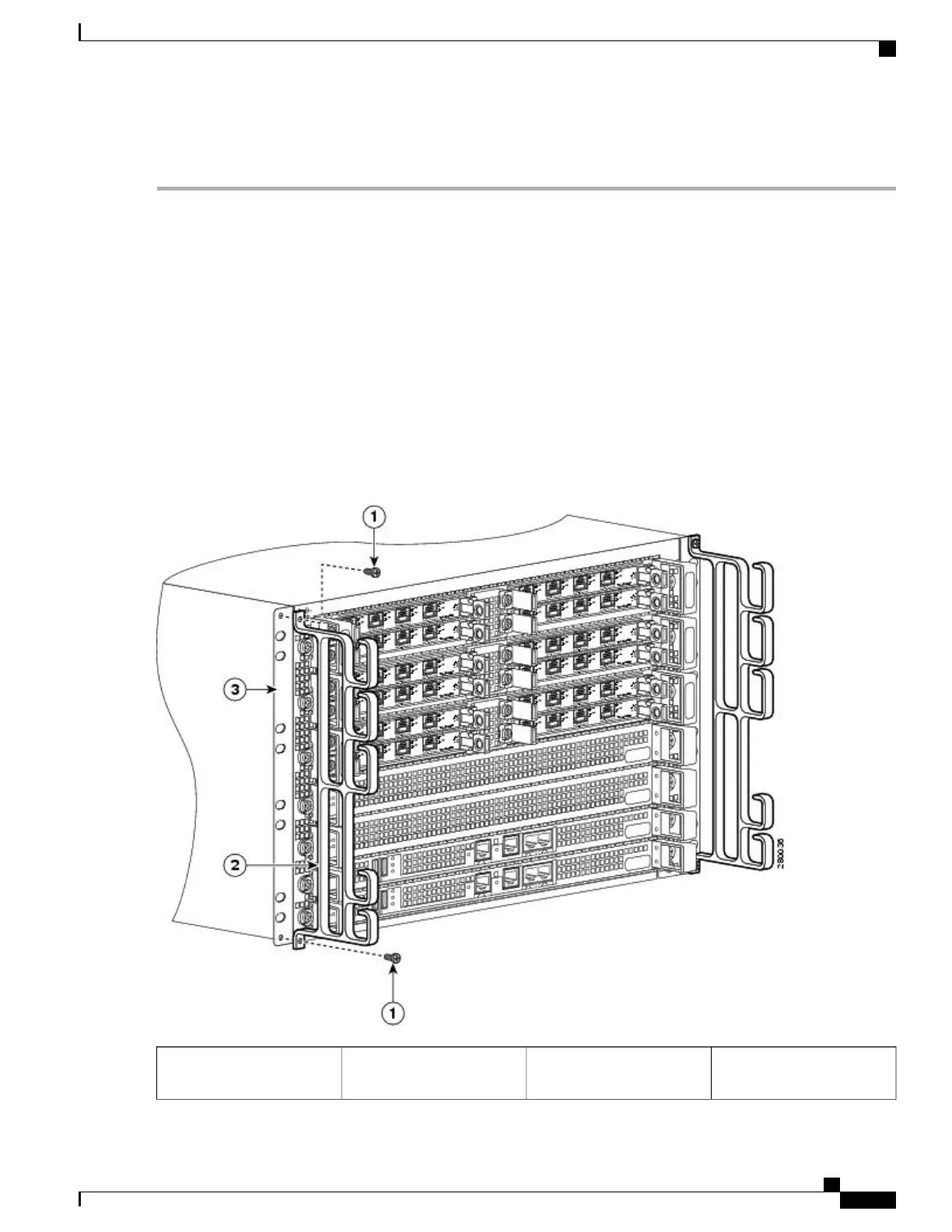

Figure 39: Attaching the Cable-Management Brackets to the Cisco ASR 1006 Router
Chassis front rack-mount
bracket
3Cable-management screws1
Cisco ASR 1000 Series Router Hardware Installation Guide
147
Cisco ASR 1006 Router Overview and Installation
Equipment Shelf or Tabletop Installation

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
