Cisco ASR 1002 Hardware Installation Guide

Do not run the AC power cord through the either power supply handles as shown in the following figure.Caution

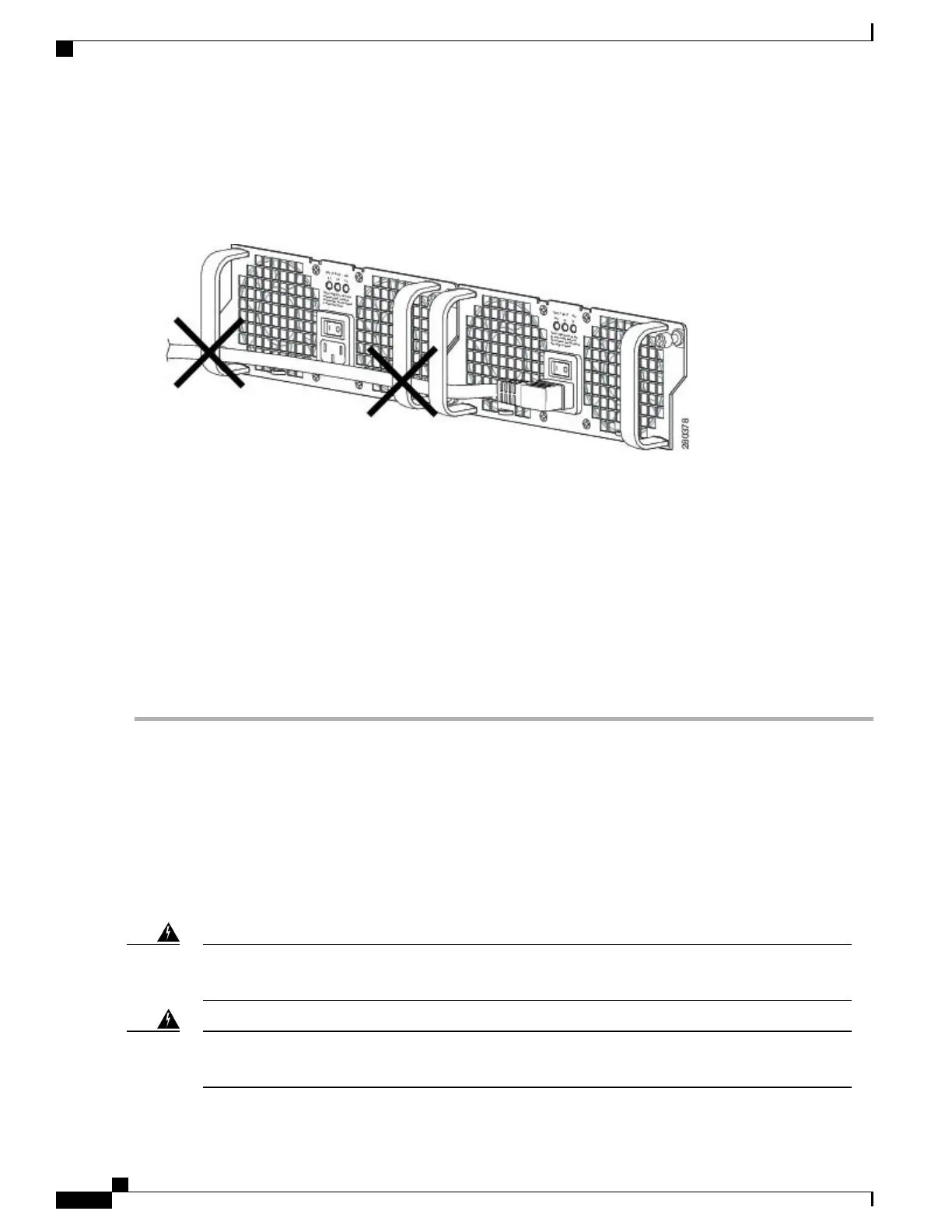

Figure 280: Cisco ASR 1002 Router Improper AC Power Cord Cabling
Using a tie wrap for the AC power cable is optional and not necessary. However, if you do attach the AC
power cable to a power supply tab and then you remove the AC power cable for some reason, check for any
damage to the cable after you cut the tie wrap off. If the power cord is damaged, replace it immediately.
Note
Step 4
Plug the AC power supply cable into the AC power source.
Two power supplies must be installed in the chassis at all times, with a minimum of one power supply connected
to the mains in order to power on the system and ensure sufficient cooling. The system fans are inside the power
supply units and must spin for cooling. Because all the system fans can be powered by one power supply, the
second power supply unit does not have to be powered on, but must be connected.
Note
If you remove a power supply from a system that are connected and powered on, the system can run only for
a maximum of five minutes before shutting down. However, because the fans and power elements are
independent within the power supply, the replacement power supply does not have to be energized within
five minutes. The only requirement is that the power supply be installed in the chassis in order to energize
the fans and maintain proper system cooling.
Caution
What to Do Next
This completes the procedure for installing the AC power supply in the Cisco ASR 1002 Router.
Removing and Replacing a –48 VDC Power Supply in Cisco ASR 1002 Router
This section provides information about removing and installing a –48 VDC power supply in the Cisco ASR
1002 Router.
When you install the unit, the ground connection must always be made first and disconnected last. Statement
1046
Warning
Before performing any of the following procedures, ensure that power is removed from the DC circuit.
Statement 1003
Warning
Cisco ASR 1000 Series Router Hardware Installation Guide
570
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing and Replacing a –48 VDC Power Supply in Cisco ASR 1002 Router

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U
