The following image shows the ASR1013/06-PWR-DC power supply for the Cisco ASR 1006 Router.

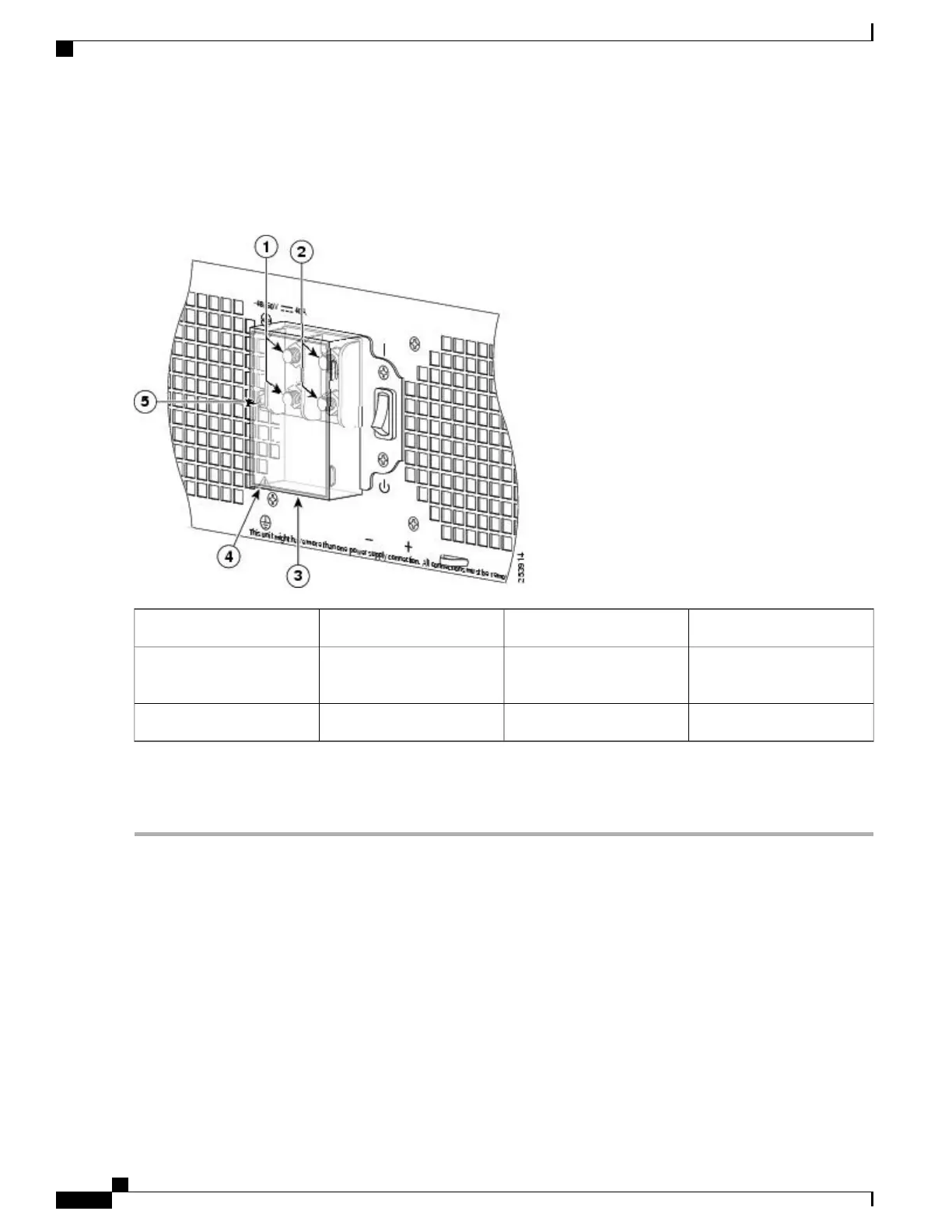

Figure 54: Cisco ASR 1006 Router DC Power Supply (ASR1013/06-PWR-DC) Terminal Block and Plastic Cover
Plastic cover slotted area4Negative terminal1
Terminal block plastic cover
single screw
5Positive terminal2
Terminal block plastic cover3
Step 10
Remove the tape from the circuit-breaker switch handle, and move the circuit-breaker handle to the On position.
Step 11
Move the circuit breaker switch to the On position.
What to Do Next
This completes the procedure for connecting the DC power supply in the Cisco ASR 1006 Router.
Connecting a Terminal to the Cisco ASR 1000 Series RP Console
Port
The Cisco ASR 1006 route processor has an asynchronous serial (EIA/TIA-232) RJ-45 console port labeled
CON on its front panel. You can connect this port to most types of video terminals through use of the console
cable kit that is included with your Cisco ASR 1006 Router. The console cable kit contains:
Cisco ASR 1000 Series Router Hardware Installation Guide
176
Cisco ASR 1006 Router Overview and Installation
Connecting a Terminal to the Cisco ASR 1000 Series RP Console Port

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
