Cisco ASR 1002 Hardware Installation Guide

If you are using a two-post rack, secure the rack to the floor surface to prevent tipping and avoid bodily
injury.
Note
•
Four-post, 19-inch equipment rack. Inner clearance (the width between the inner sides of the two posts
or rails) must be at least 19 inches (48.26 cm). The height of the chassis is 3.47 inches/8.8 cm). Airflow
through the chassis is from front to back.
The Cisco ASR 1002-F Router can be installed with both front or rear rack-mount brackets.
Verifying Rack Dimensions
Before you install the chassis, measure the space between the vertical mounting flanges (rails) on your
equipment rack to verify that the rack conforms to the measurements shown in the following image.
SUMMARY STEPS
1.
Mark and measure the distance between two holes on the left and right mounting rails. The distance should
measure 18.31 inches ± 0.06 inches (46.5 cm ± 0.15 cm).
2.
Measure the space between the inner edges of the left front and right front mounting flanges on the
equipment rack. The space must be at least 17.7 inches (45 cm) to accommodate the chassis, which is
17.25 inches (43.8 cm) wide and fits between the mounting posts on the rack.
DETAILED STEPS
Step 1
Mark and measure the distance between two holes on the left and right mounting rails. The distance should measure
18.31 inches ± 0.06 inches (46.5 cm ± 0.15 cm).
Measure for pairs of holes near the bottom, middle, and top of the equipment rack to ensure that the rack posts
are parallel.
Note
Step 2
Measure the space between the inner edges of the left front and right front mounting flanges on the equipment rack. The
space must be at least 17.7 inches (45 cm) to accommodate the chassis, which is 17.25 inches (43.8 cm) wide and fits
between the mounting posts on the rack.

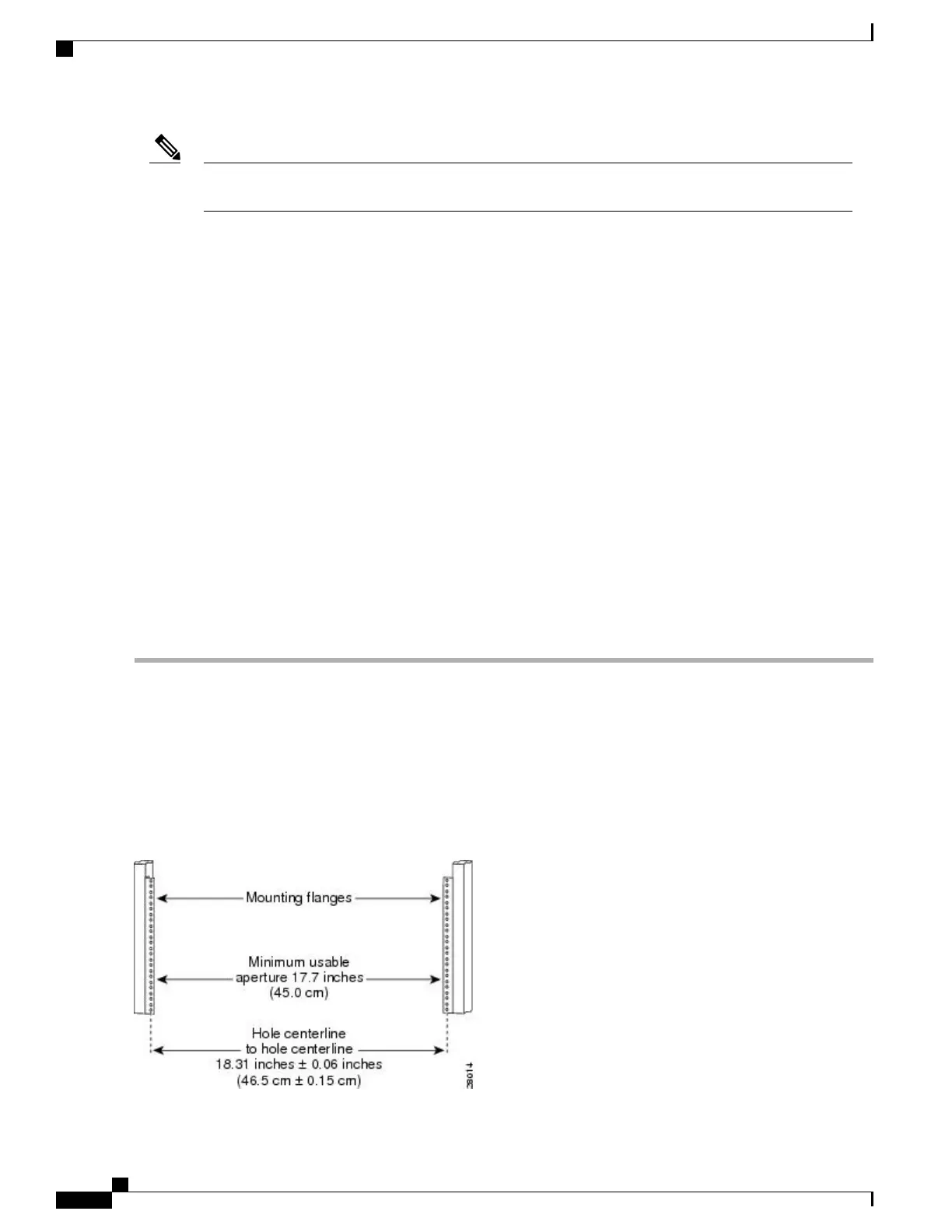

Figure 126: Verifying Equipment Rack Dimensions
Cisco ASR 1000 Series Router Hardware Installation Guide
292
Cisco ASR 1002-F Router Overview and Installation
Verifying Rack Dimensions

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
