SUMMARY STEPS
1.
Unplug the power cable from the power source.
2.
To remove the power cord from PS1, position the power supply cable in order to access the power supply
fasteners. Hold back the power supply cable in PS0, as shown in the following image, ensuring that you
do not unplug the power cable.
3.
Continue to hold back the power supply cable in PS0, to gain access to the fastener. Unscrew both fasteners
on the power supply in slot 1.
4.

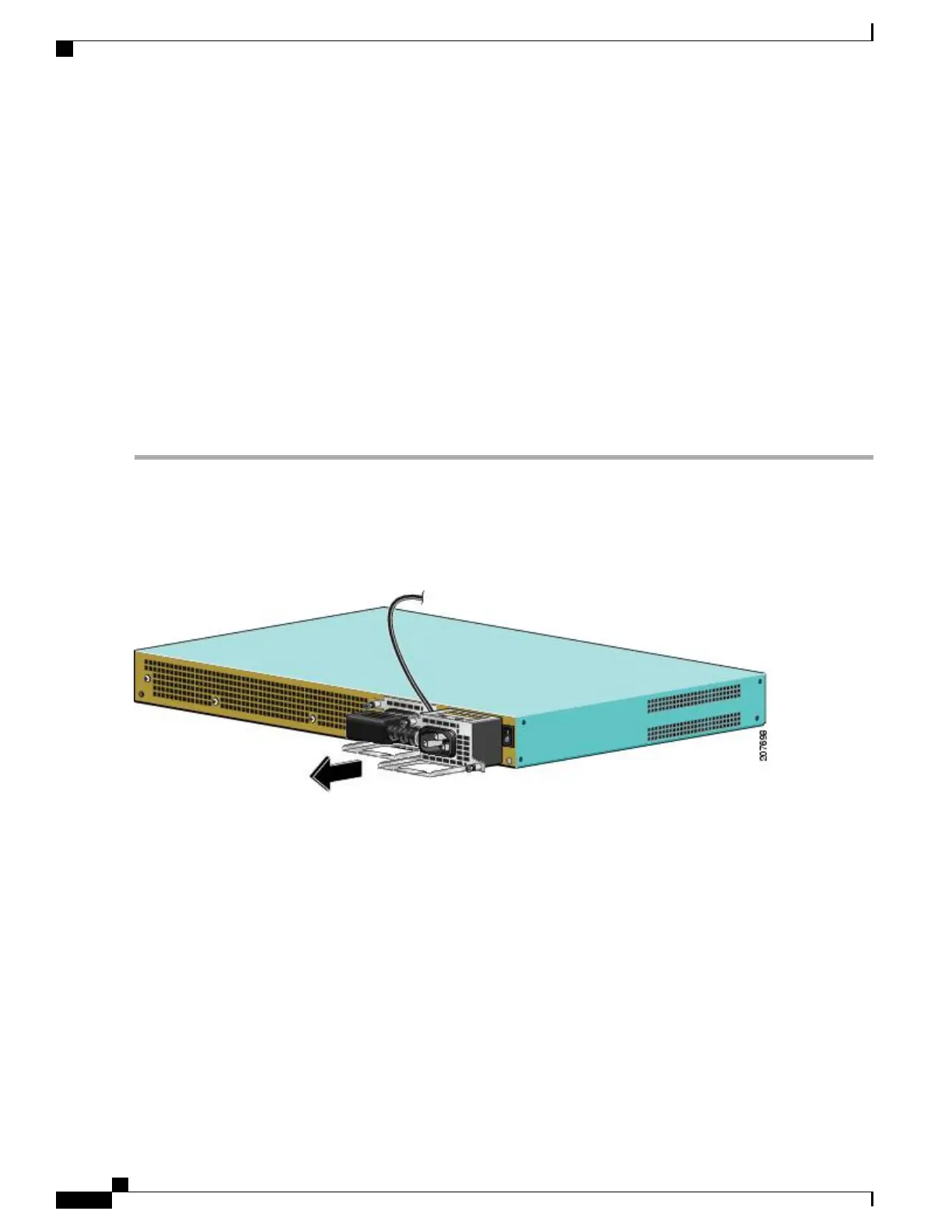

After the power supply fasteners are loosened, grasp the handle with one hand, support the weight of the
power supply with the other hand, and pull the power supply out of the slot. The following image shows
how to remove the Cisco ASR 1001 Router AC power supply cables.
5.
Repeat these steps to remove the AC power supply from Slot PS0.
DETAILED STEPS
Step 1
Unplug the power cable from the power source.
Step 2
To remove the power cord from PS1, position the power supply cable in order to access the power supply fasteners. Hold
back the power supply cable in PS0, as shown in the following image, ensuring that you do not unplug the power cable.
Figure 218: Positioning the AC Power Supply Cable in Slot PS0
Step 3
Continue to hold back the power supply cable in PS0, to gain access to the fastener. Unscrew both fasteners on the power
supply in slot 1.
The Cisco ASR 1001 power supplies are long and narrow. It is recommended that when you pull the power supply
out of the chassis, you support the power supply from the bottom with the other hand.
Tip
Cisco ASR 1000 Series Router Hardware Installation Guide
450
Cisco ASR 1001 Router Overview and Installation
Removing AC Power Supply from the Cisco ASR 1001 Router

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
