Cisco ASR 1002 Hardware Installation Guide

Inner clearance (the width between the inner sides of the two posts or rails) must be at least 19 inches
(48.26 cm). The height of the chassis is 3.47 inches (8.8 cm). Airflow through the chassis is from front to
back.
Note
Make sure the rack is stabilized.Caution
Step 1
(Optional) Install a shelf in the rack to support the Cisco ASR 1002-F Router. If you are using a shelf, raise the chassis
to the level of the shelf. Let the bottom of the chassis rest on the brackets, but continue to support the chassis. Lift the
chassis into the rack, grasping underneath the power supply bays.
Step 2
Position the chassis until the rack-mounting flanges are flush against the mounting rails on the rack.
Use the second hole up from the bottom of the rack-mount bracket and the second hole down from the top of
the rack-mount bracket. This will make it easier to attach the cable-management brackets to the chassis in the
equipment rack.
Note
Step 3
Hold the chassis in position against the mounting rails while the second person finger-tightens a screw to the rack rails
on each side of the chassis.
Step 4
Tighten the screws to the rack rails on each side of the chassis.
Step 5
Tighten all the screws on each side to secure the chassis to the equipment rack.
The following figure shows the Cisco ASR 1002-F Router on a four-post rack.

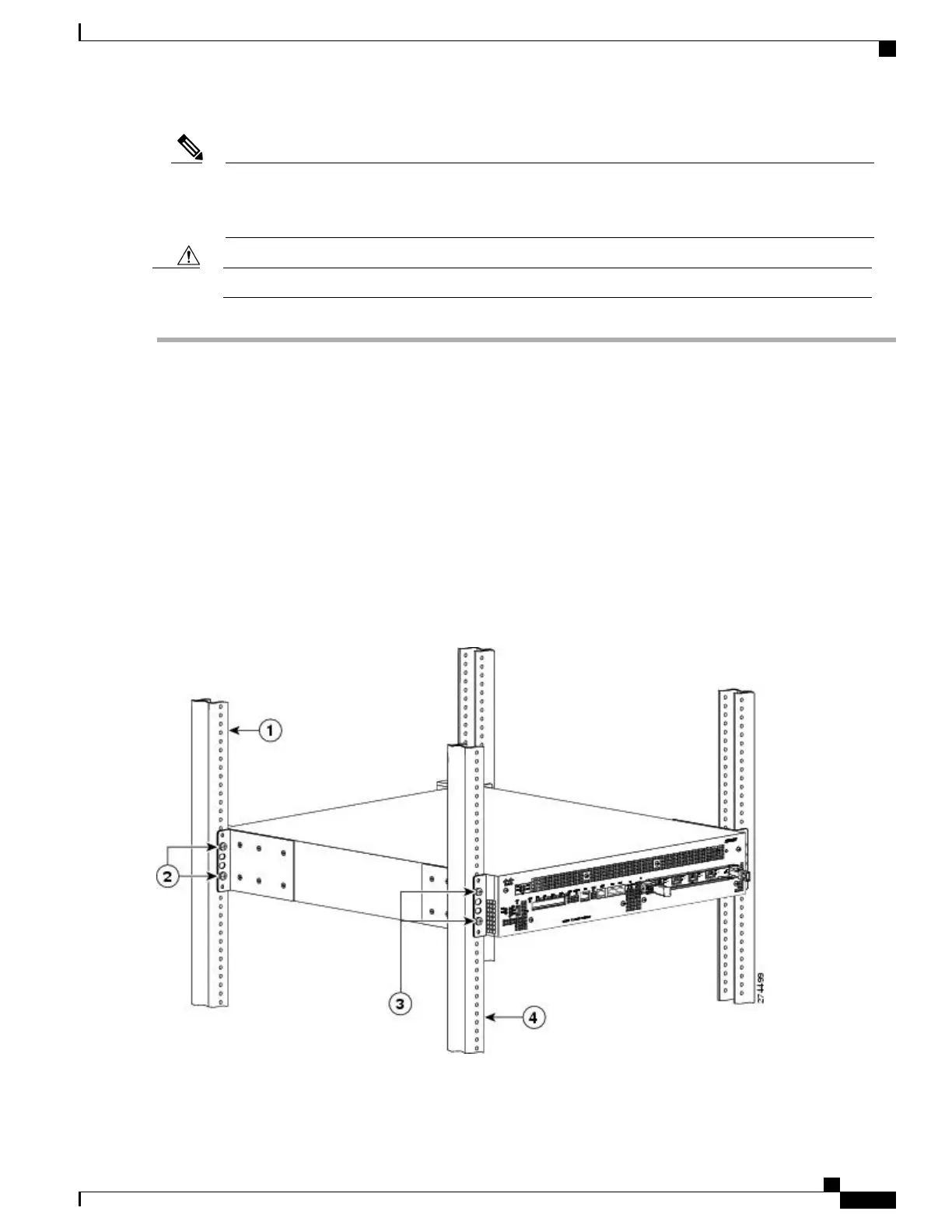

Figure 130: Installing the Cisco ASR 1002-F Router on a Four-Post Equipment Rack
Cisco ASR 1000 Series Router Hardware Installation Guide
299
Cisco ASR 1002-F Router Overview and Installation
Four-Post Rack Installation

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
