Cisco ASR 1002 Hardware Installation Guide

• Cisco ASR 1000-SIP40—This SIP supports:
◦
4 half height (¼ Rate or full rate or combination) SPAs with up to 24 ports per SPA
◦
2 full height (¼ Rate or full rate or combination) SPAs with up to 48 ports per SPA
◦
2 half height and 1 full height combination that does not exceed 96 ports
◦
Up to 40 Gbps aggregate bandwidth from the four SPA bays
◦
ESI bandwidth of 11 to 46 Gbps
◦
Ingress buffering at 128 MB and egress buffering at 6MB
For information about what hardware is supported and compatible and not compatible with the new ASR
1000 40G components and Cisco ASR 1013 Router, see Table 2-4 and Table 2-3 .
The Cisco SPAs provide the physical interfaces for router connectivity ranging from copper, channelized,
POS, ATM and Ethernet. The Cisco ASR 1000 Series SIP provides the physical termination for the SPAs
and accepts up to four half-height and 2 full height Cisco SPAs.
The is a list of characteristics of the Cisco ASR 1000 Series SPA Interface Processors for the Cisco ASR
1006, Cisco ASR 1004, and Cisco ASR 1013 routers:
•
A SIP is a carrier card that inserts into a router slot like a line card. It provides no network connectivity
on its own.
•
A SIP contains one or more subslots, which are used to house one or more SPAs. The SPA provides
interface ports for network connectivity.
•
During normal operation, the SIP should reside in the router fully populated either with functional SPAs
in all subslots, or with a blank filler plate (SPA-BLANK=) inserted in all empty subslots.
•
SIPs support online insertion and removal (OIR) with SPAs inserted in their subslots. SPAs also support
OIR and can be inserted or removed independently from the SIP.
Fully populate all slots and subslots with blank filler plates or functional SPAs for maximum efficiency
of the cooling system.
Note
This section describes the Cisco ASR 1000 Series SPA Interface (SIP) components and subslot

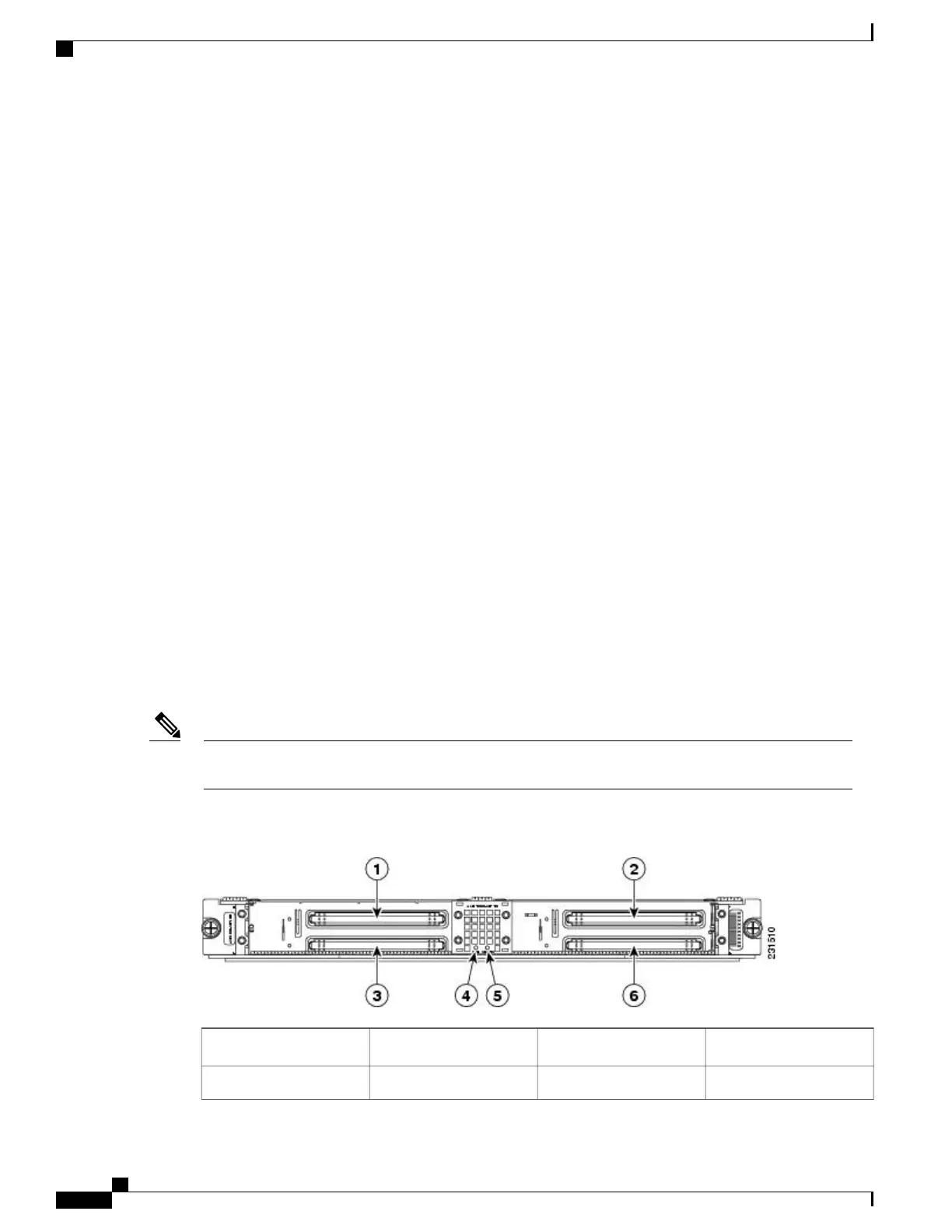

identification.Figure 4-1 shows an example of the Cisco ASR 1000 Series SPA Interface (SIP) module.
STATUS Led4SPA subslot 01
PWR Led5SPA subslot 12
Cisco ASR 1000 Series Router Hardware Installation Guide
102
Cisco ASR 1000 Series Router SPA Interface Processors (SIPs)
Cisco ASR 1000 Series SPA Interface Processor

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
