Cisco ASR 1002 Hardware Installation Guide

The following image shows the router installed on a four-post rack.

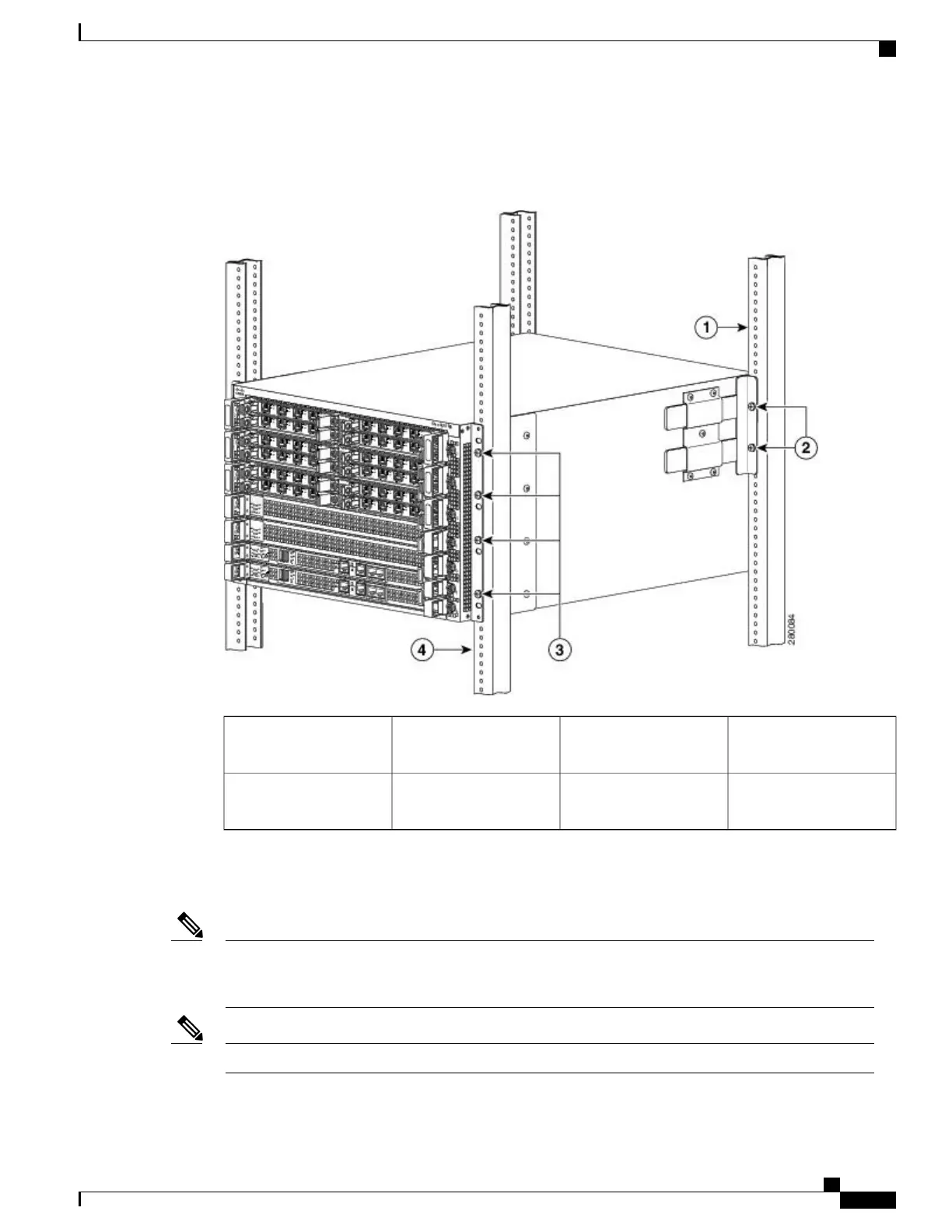

Figure 44: Installing the Cisco ASR 1006 Router in a Four-Post Equipment Rack
Cisco ASR 1006 front
rack-mount brackets
3Four-post equipment rack
rear rail
1
Four-post equipment rack
front rail
4Cisco ASR 1006 rear
rack-mount brackets
2
When handling the chassis, always follow proper lifting practices. See the “Chassis-Lifting Guidelines” section
on page 5-23 .
Inner clearance (the width between the inner sides of the two posts or rails) must be at least 19 inches
(48.26cm). The height of the chassis is 10.45 inches (26.543 cm). Airflow through the chassis is from
front to back.
Note
Make sure the rack is stabilized.Note
Cisco ASR 1000 Series Router Hardware Installation Guide
157
Cisco ASR 1006 Router Overview and Installation
Four-Post Rack Installation

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
