Cisco ASR 1002 Hardware Installation Guide

SUMMARY STEPS
1.
At the rear of the chassis, check whether the power switch on the power supply is in the Standby position.
2.
Plug the power cable into the inlet.
DETAILED STEPS
Step 1
At the rear of the chassis, check whether the power switch on the power supply is in the Standby position.
Step 2
Plug the power cable into the inlet.
For additional AC power cable strain relief, secure the cable to the power supply handle by inserting a nylon
cable tie through the hole in the handle and around the cable.
Note
The following image shows the ASR1006-PWR-AC power supply of the Cisco ASR 1006 Router.
Figure 47: Cisco ASR 1006 Router AC Power Supply (ASR1006-PWR-AC)
AC power supply handle5AC power supply fan1
AC power inlet6DB-25 alarm connector2
AC power supply Standby
switch
7Tie-wrap tab3
AC power supply LEDs8AC power supply captive
screw
4

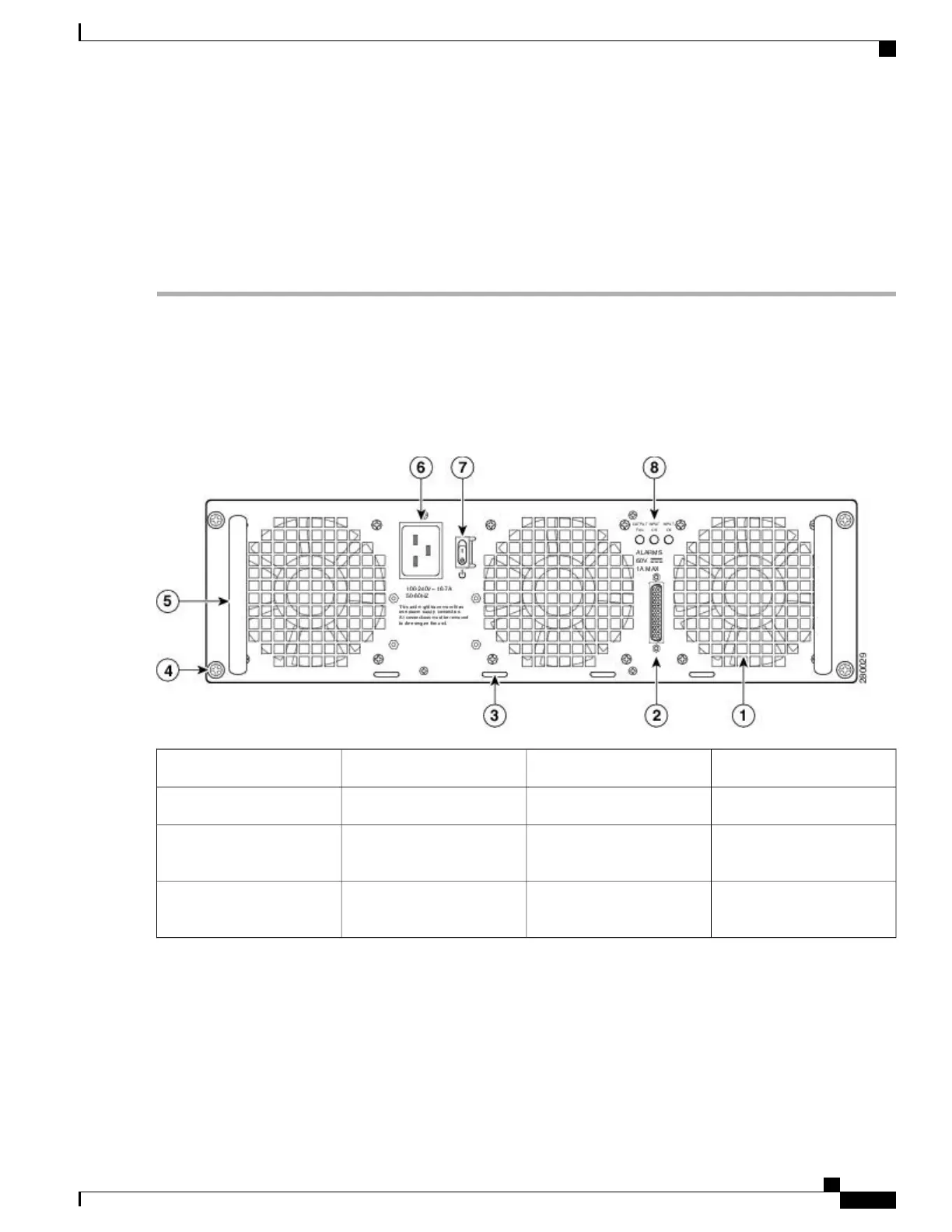

The following image shows the ASR1013/06-PWR-AC power supply of the Cisco ASR 1006 Router.
Cisco ASR 1000 Series Router Hardware Installation Guide
167
Cisco ASR 1006 Router Overview and Installation
Connecting AC Input Power to Cisco ASR 1006 Router

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
