Step 3
Hold the chassis in position against the mounting rails while the second person finger-tightens a screw to the rack rails
on each side of the chassis. The following image shows the rear rack-mount brackets and the front rack-mount brackets
on the Cisco ASR 1004 Router.

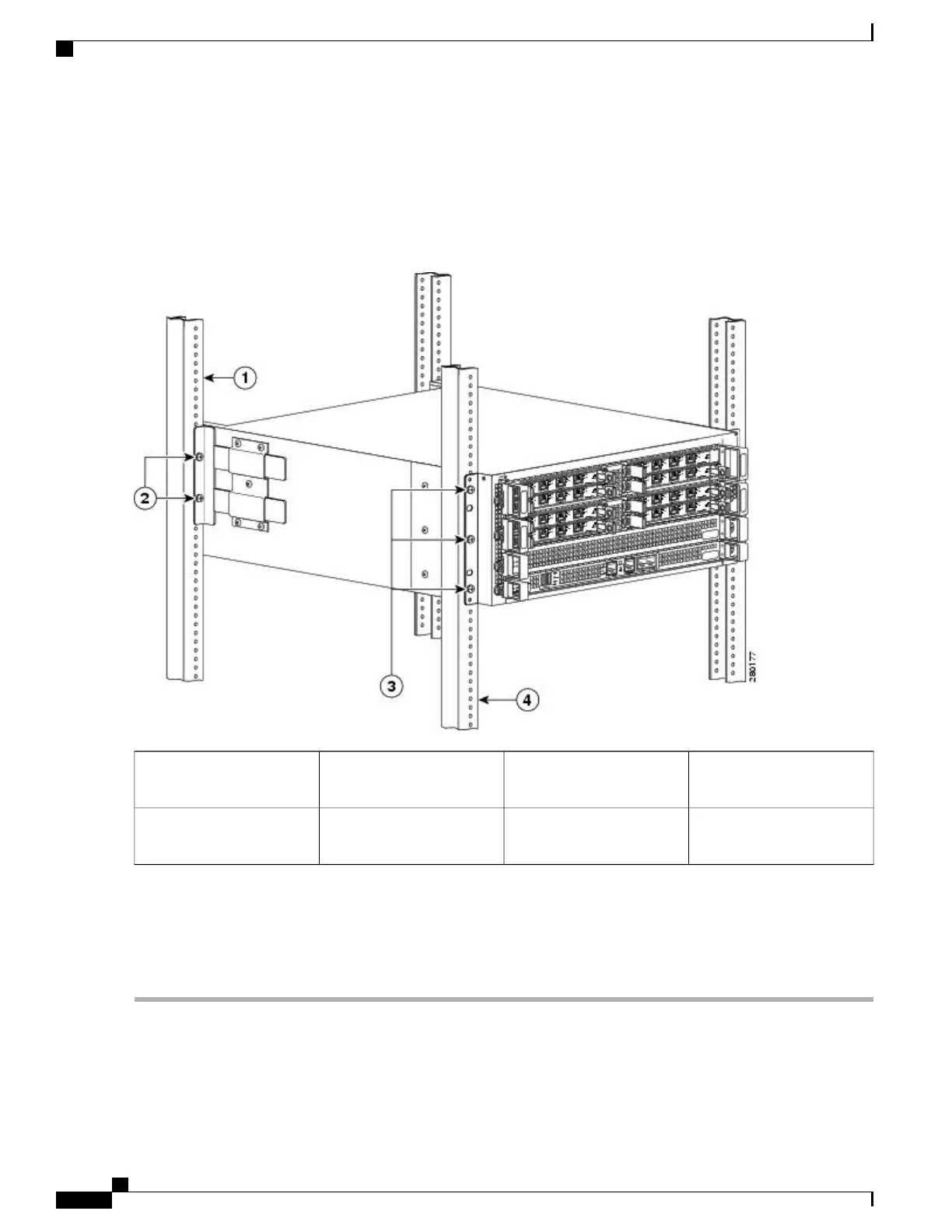

Figure 68: Cisco ASR 1004 Router on a Four-Post Rack — Front and Rear Rack-Mounting
Front rack-mount bracket ear
and holes
3Equipment rack rear rail1
Equipment rack front rail4Chassis rear rack-mount
bracket and ear holes
2
Step 4
Finger-tighten 4 more screws to the rack rails on each side of the chassis.
Step 5
Tighten all screws on each side to secure the chassis to the equipment rack.
Step 6
Use a level to verify that the tops of the two brackets are level, or use a measuring tape to verify that both brackets are
the same distance from the top of the rack rails.
What to Do Next
This completes the procedure for installing the chassis in the rack. Proceed to the Attaching a Chassis Ground
Connection, on page 201 to continue the installation.
