Cisco ASR 1002 Hardware Installation Guide

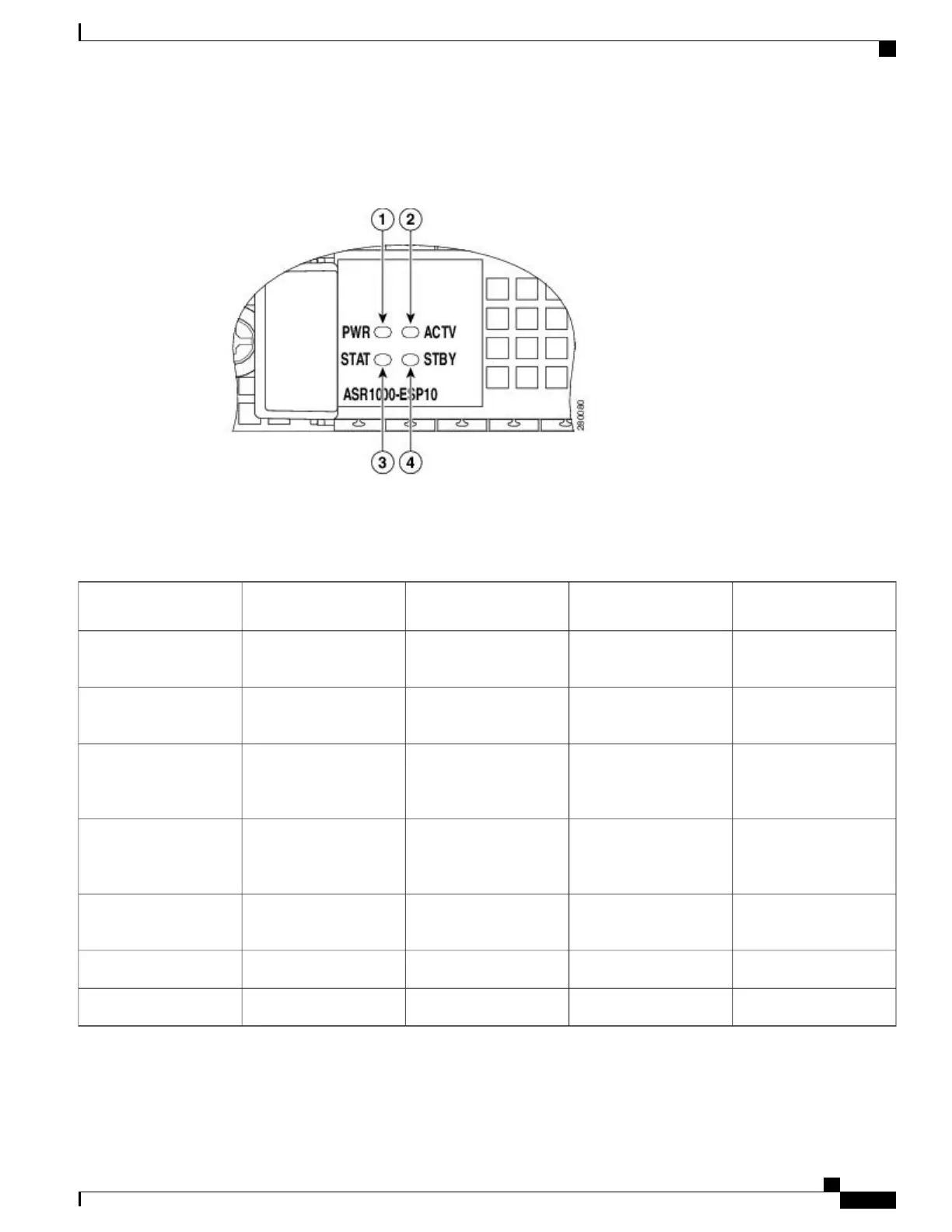

Cisco ASR1000-ESP10 image shows the LEDs on the Cisco ASR1000-ESP10.
Figure 83: Cisco ASR1000-ESP10 LEDs
c_Cisco_ASR1000-ESP5_and_ASR1000-ESP10_Description_1222814.xml describes the Cisco ASR1000-ESP5
and Cisco ASR1000-ESP10 LEDs.
Table 52: Cisco ASR1000-ESP5 and Cisco ASR1000-ESP10 LEDs
Behavior in the
Power-Up State
ColorLEDLED LabelNo.
All power supplies are
within operational limits.
Solid greenPowerPWR1
Off, the router is in
standby mode.
Off
The embedded services
processor is green when
active.
GreenActiveACTV2
Code has successfully
downloaded and is
operational.
GreenSTATUSSTAT3
BOOT ROM has
successfully loaded.
Yellow
Not booted.Red
Will always be off.NoneStandbySTBY4
Cisco ASR 1000 Series Router Hardware Installation Guide
225
Cisco ASR 1002 Router Overview and Installation
Cisco ASR 1002 Router Components

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
