Cisco ASR 1002 Hardware Installation Guide

This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the
absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority
or an electrician if you are uncertain that suitable grounding is available. Statement 1024
Warning
Before you connect power or turn on power to your chassis, you must provide an adequate chassis ground
(earth) connection for the chassis. The chassis ground lug (two) and the respective screws (four) are provided
in the accessory kit that ships with your Cisco ASR 1002 Router.
The grounding wire is always the first to be installed or connected and the last to be removed or
disconnected.
Caution
The following tools, equipment, and supplies necessary to connect the system ground to the chassis:
•
Phillips screwdriver
•
Dual-lug chassis ground component (two) and respective screws (four) (shipped with the accessory kit)
•
Grounding wire

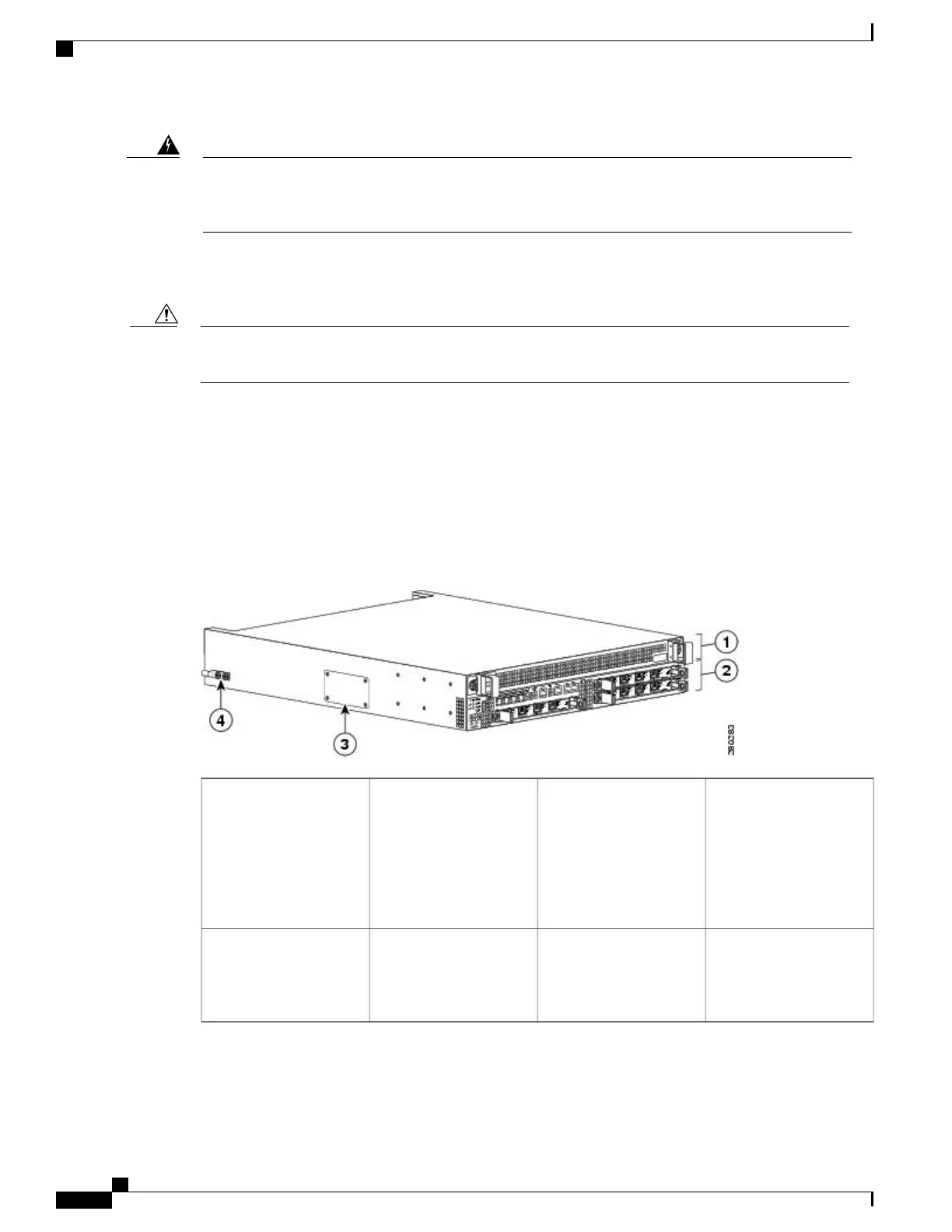

The follwing image shows the location of the dual ground lug on the side of the of Cisco ASR 1002 Router.
Figure 95: Cisco ASR 1002 Router Chassis Ground Lug Location and Side Panel Door
The eUSB panel door on
the side of the Cisco ASR
1002 Router must not be
opened. If there is a
problem with eUSB flash
card, the chassis should
be returned.
3F0 with ASR1000-ESP5
or ESP10.
1
Cisco ASR 1002 Router
ground stud location.
4R0 slot with embedded
ASR1000-RP1 and
embedded
ASR1000-SIP10.
2
To attach the grounding lug to the chassis ground connector on your chassis, follow these steps:
Cisco ASR 1000 Series Router Hardware Installation Guide
250
Cisco ASR 1002 Router Overview and Installation
Attaching a Chassis Ground Connection

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
