Cisco ASR 1002 Hardware Installation Guide

At least two people are required to lift the chassis onto a tabletop or platform. To prevent injury, keep your
back straight and lift with your legs, not your back. Statement 164
Warning

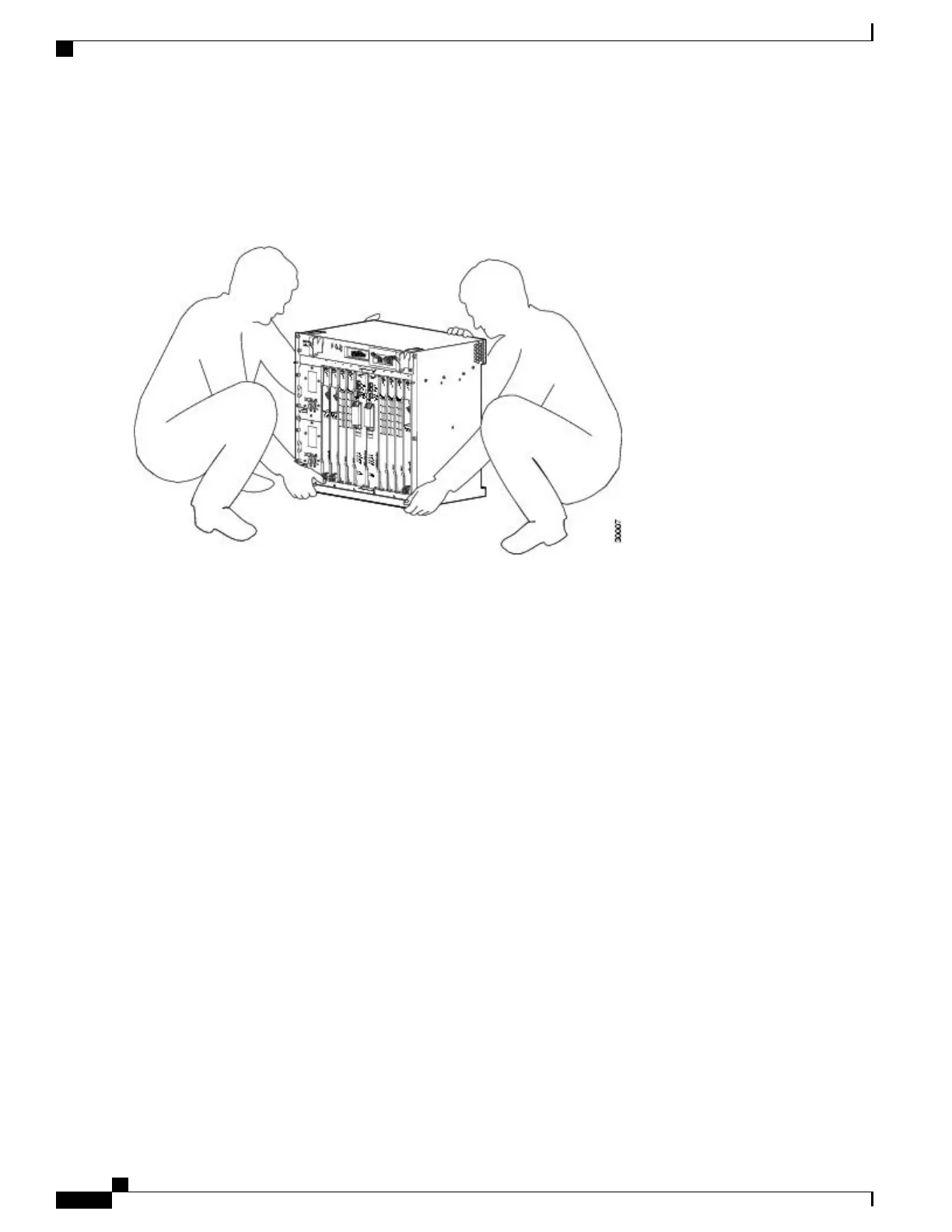

Figure 124: Lifting the Chassis
The chassis in the above image does not represent the Cisco ASR 1002-F Router. This is only an example of
how to lift a Cisco chassis.
Note
Step 3
Attach the front rack-mount brackets. Locate the threaded holes in the front sides of the chassis (first holes beyond the
vent holes) and use the package of black screws that shipped with the chassis.
Step 4
Align the front rack-mount bracket to one side of the chassis.
Step 5
Insert and tighten the screws on one side.
Step 6
Repeat Step 4 through Step 5 on the other side of the chassis. Use all the screws to secure the rack-mount brackets to
the chassis.
The chassis rack-mount brackets must be installed first so that you can attach the cable-management brackets
to the chassis rack-mount brackets after the chassis is installed in the rack.
Note
Step 7
Gather the two cable-management brackets and screws that shipped with your chassis. The following image shows
cable-management brackets attached on the front of the Cisco ASR 1002-F Router.
Cisco ASR 1000 Series Router Hardware Installation Guide
290
Cisco ASR 1002-F Router Overview and Installation
Equipment Shelf or Tabletop Installation

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
