Cisco ASR 1002 Hardware Installation Guide

SUMMARY STEPS
1.
Locate the threaded ear holes on the rear side of the chassis. Make certain that you hold the rear rack-mount
bracket with the ear and holes facing outward and towards the rear of the chassis.
2.
Position the rear rack-mount bracket top hole with the chassis top hole from the back.
3.
Insert and tighten the screws on one side.
4.
Repeat Step 1 through Step 3 on the other side of the chassis. Use the remaining screws to secure the rear
rack-mount brackets to the chassis.
DETAILED STEPS
Step 1
Locate the threaded ear holes on the rear side of the chassis. Make certain that you hold the rear rack-mount bracket with
the ear and holes facing outward and towards the rear of the chassis.
The following image shows where to attach the rear rack-mount brackets to the Cisco ASR 1002-F Router.

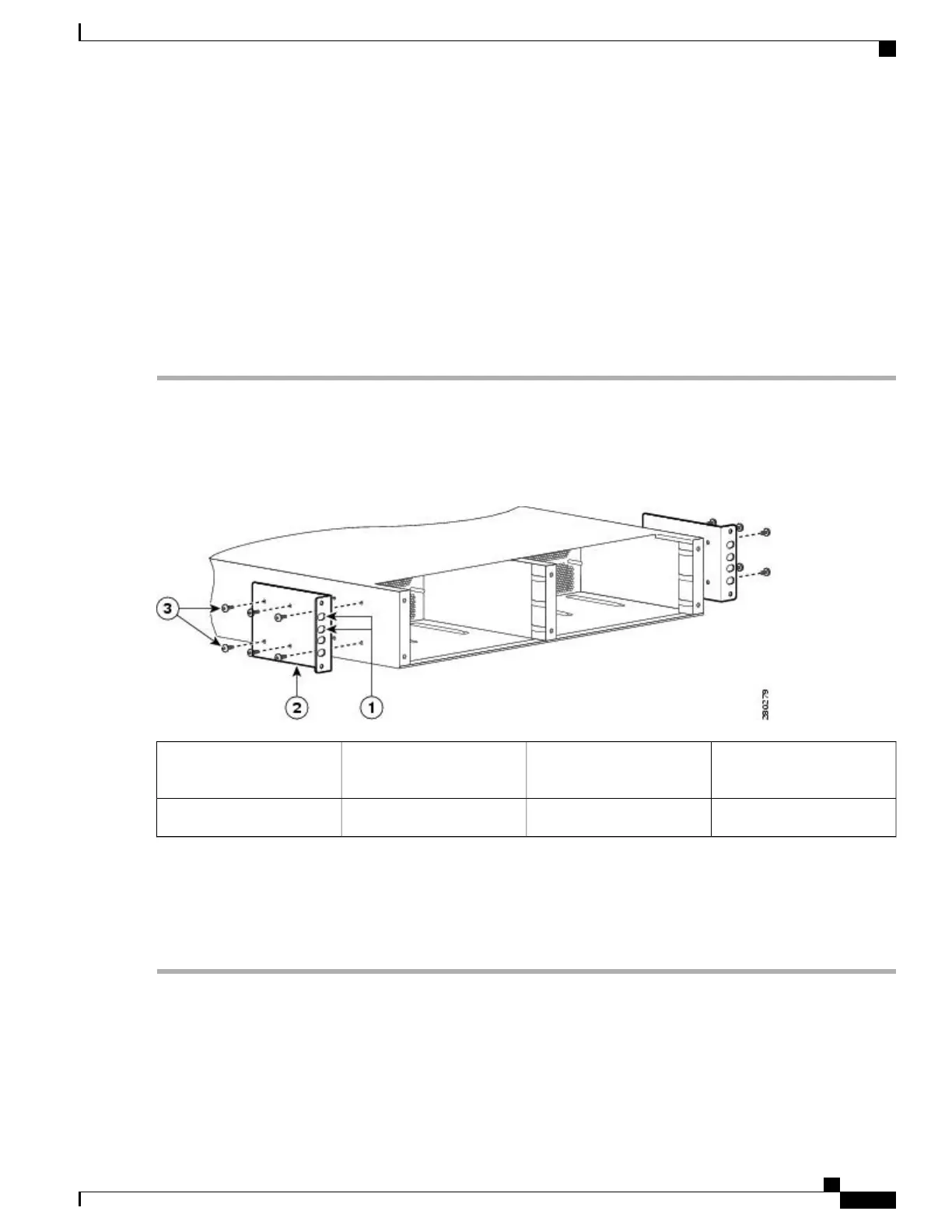

Figure 128: Attaching the Rear Rack-Mount Brackets to the Cisco ASR 1002-F Router
Rear rack-mount bracket
screws
3Rear rack-mount bracket ear
and holes
1
——
Rear rack-mount bracket2
Step 2
Position the rear rack-mount bracket top hole with the chassis top hole from the back.
Step 3
Insert and tighten the screws on one side.
Step 4
Repeat Step 1 through Step 3 on the other side of the chassis. Use the remaining screws to secure the rear rack-mount
brackets to the chassis.
What to Do Next
This completes the steps for attaching the rear rack-mount brackets to the Cisco ASR 1002-F Router.
Cisco ASR 1000 Series Router Hardware Installation Guide
295
Cisco ASR 1002-F Router Overview and Installation
Chassis Rear Rack-Mount Brackets

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
