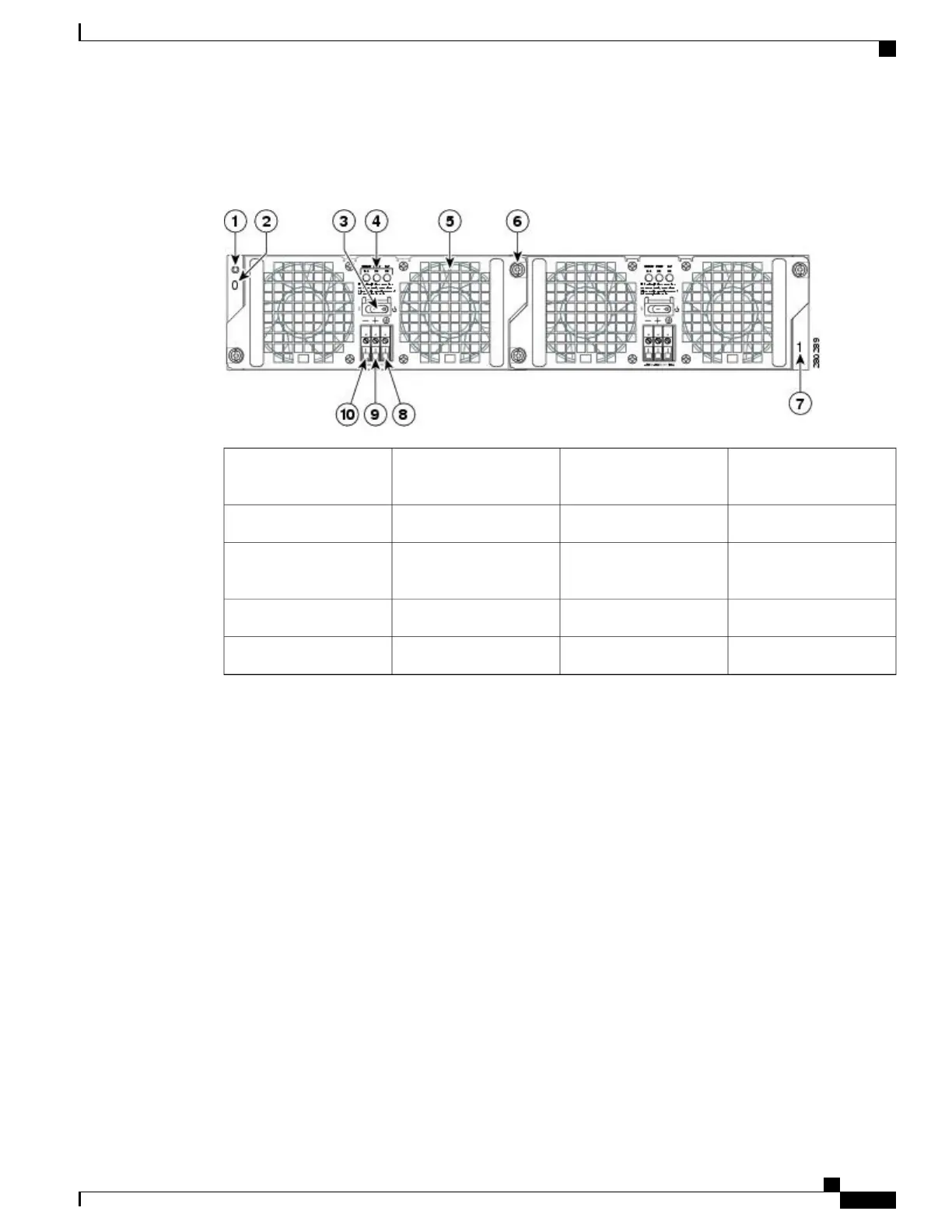

The following image shows the –48 VDC power supply for the Cisco ASR 1002-X Router.
Figure 149:
–
48 VDC Power Supply for the Cisco ASR 1002-X Router
Power supply captive
installation screw
6Chassis ESD socket1
Power supply slot 1 label7Power supply slot 0 label2
Ground lead8Power supply switch
Standby/On (|)
3
Positive lead9Power supply LEDs4
Negative lead10Fan5
The following table lists the Cisco ASR 1002-X Router –48 VDC power supply LEDs.
