Cisco ASR 1002 Hardware Installation Guide

SUMMARY STEPS
1.
Position the chassis such that the front is closest to you and lift it carefully into the rack.
2.
Slide the chassis into the rack, pushing it back until the brackets meet the mounting strips or posts on both
sides of the rack.
3.
Keeping the brackets flush against the posts or mounting strips, align the holes in the brackets with the
holes on the rack or mounting strips.
4.
For each bracket, insert and tighten two screws to the rack on both sides.
DETAILED STEPS
Step 1
Position the chassis such that the front is closest to you and lift it carefully into the rack.
To prevent injury, avoid any sudden twists or
moves.
Caution
The following image shows where to attach the rack mount brackets to the Cisco ASR 1002-X Router.

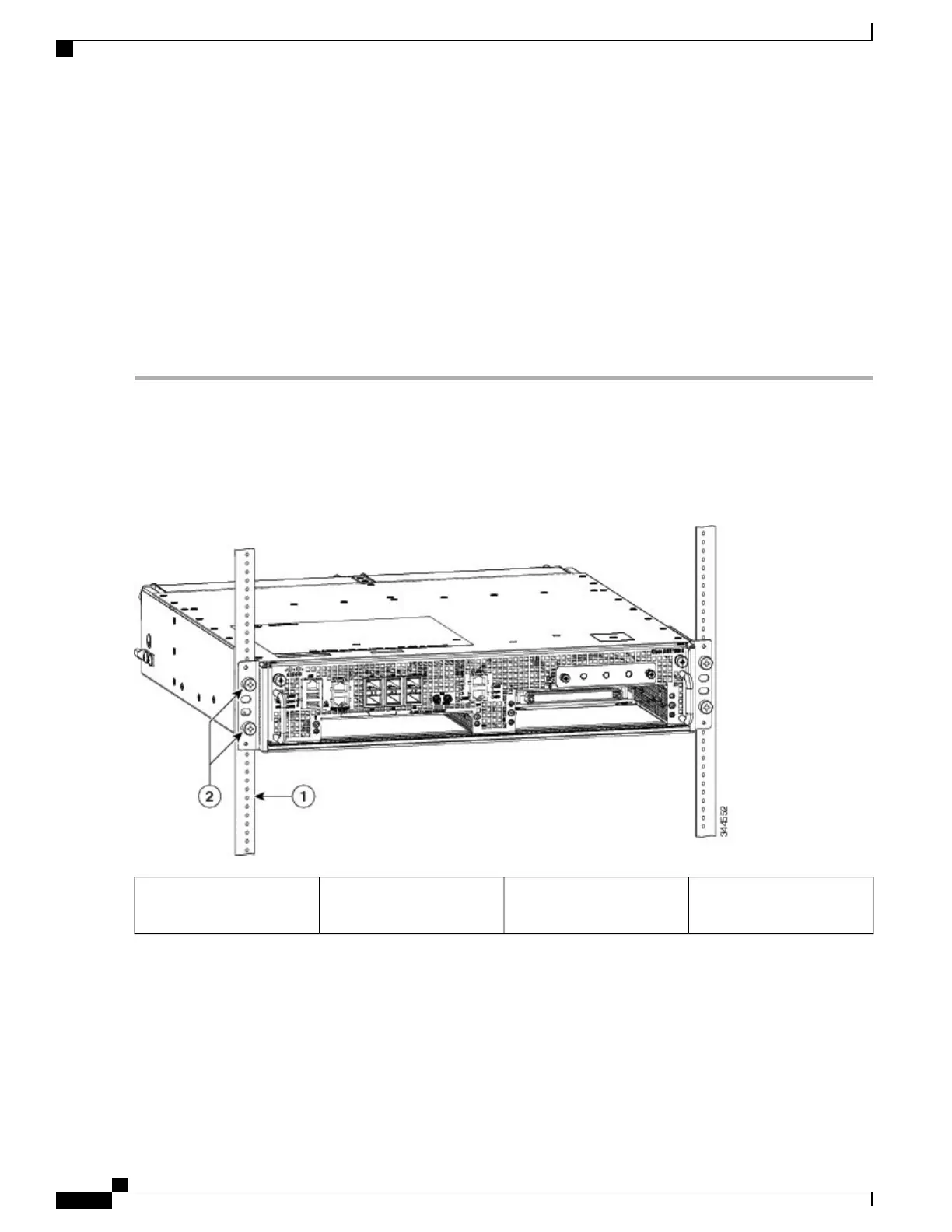

Figure 156: Attaching the Rack Mount Brackets to the Cisco ASR 1002-X Router
Rack mount bracket ear and
holes
2Rack equipment rail1
Step 2
Slide the chassis into the rack, pushing it back until the brackets meet the mounting strips or posts on both sides of the
rack.
Step 3
Keeping the brackets flush against the posts or mounting strips, align the holes in the brackets with the holes on the rack
or mounting strips.
Step 4
For each bracket, insert and tighten two screws to the rack on both sides.
Cisco ASR 1000 Series Router Hardware Installation Guide
342
Cisco ASR 1002-X Router Overview and Installation
Two-Post Rack Installation

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
