The following image shows the Cisco ASR 1013 Router installed on a four-post rack.

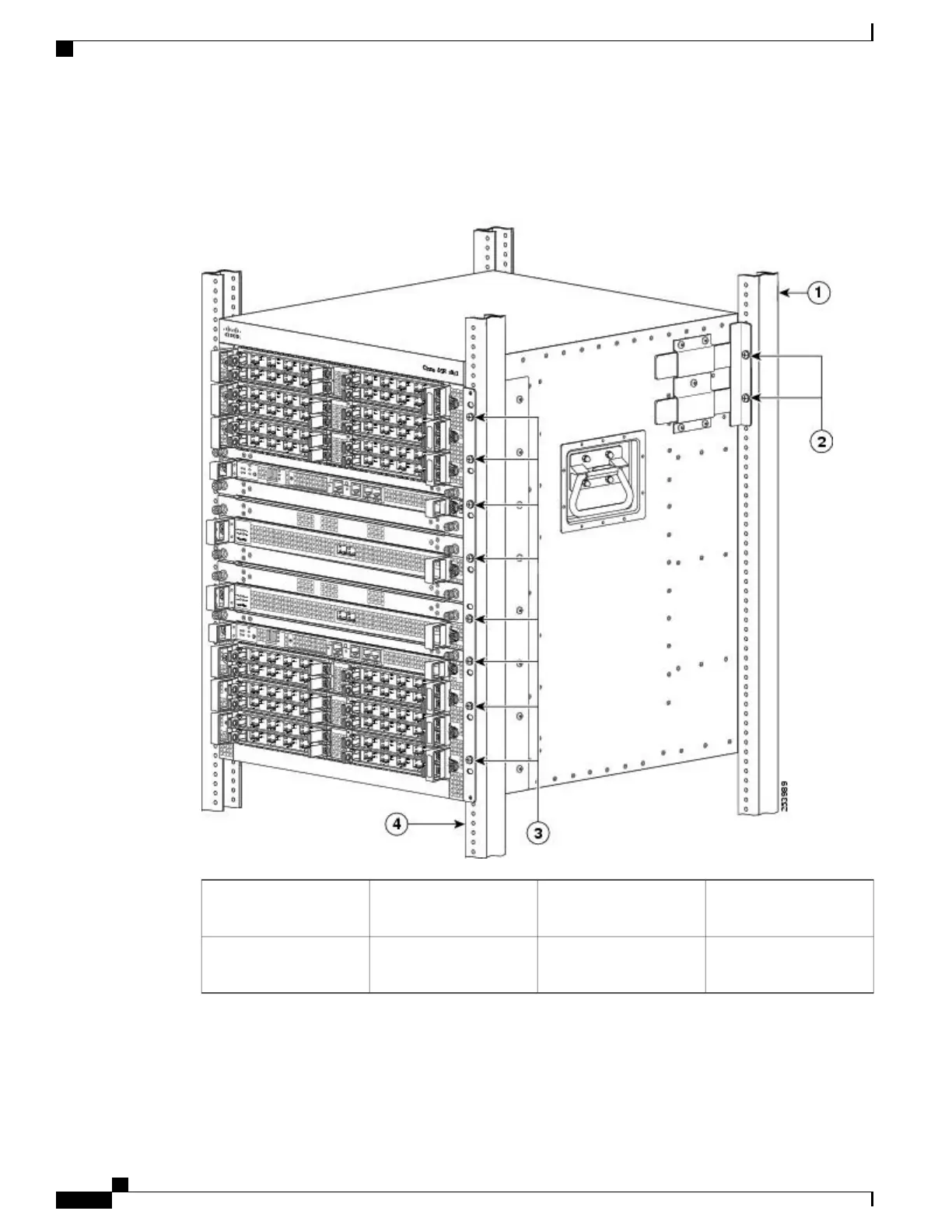

Figure 184: Installing the Cisco ASR 1013 Router on a Four-Post Rack
Cisco ASR 1013 front
rack-mount brackets
3Four-post equipment rack
rear rail
1
Four-post equipment rack
front rail
4Cisco ASR 1013 rear
rack-mount brackets
2
When handling the chassis, always follow proper lifting practices. See the “Chassis-Lifting Guidelines” section.
