The following image shows the cable-management brackets attached to the chassis in a rack.

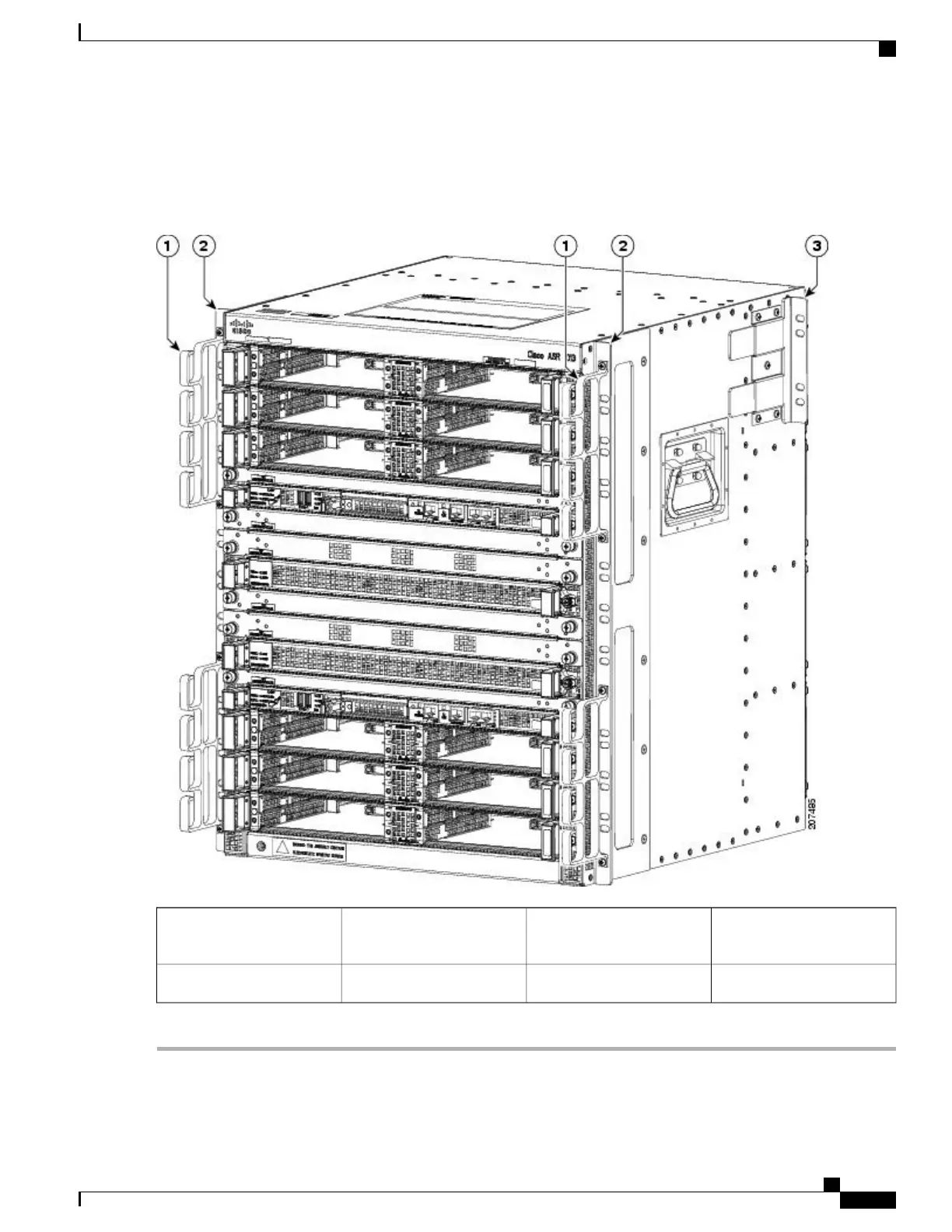

Figure 185: Cable-Management Brackets Installed on the Cisco ASR 1013 Router
Chassis front rack-mount
bracket
3Cable-management bracket
screw location
1
——
Cable-management bracket2
Cisco ASR 1000 Series Router Hardware Installation Guide
387
Cisco ASR 1013 Router Overview and Installation
Attaching the Cable-Management Bracket
