Cisco ASR 1002 Hardware Installation Guide

USB port—USB
high-speed (480 Mbps)
port used for secure key
storage, VPN credentials
storage, or bulk flash
storage of image and
configuration backup
This USB port is an A
port.
11
T3 RX Port—Receive
port 0
This T3 port uses a
1.0/2.3 RF connector with
75-ohm impedance.
4
STAT—Status LED
12
AUX—RS-232 auxiliary
port
5
PWR—Power LED
13
CON—RS-232 console
port
6
——MGMT—RJ-45
10/100/1000 management
Ethernet port
7
The following figures show the front panel of the Cisco ASR 1001 Router with the various IDCs. The following
image shows the LEDs that are common to all configurations of the Cisco ASR 1001 Router.

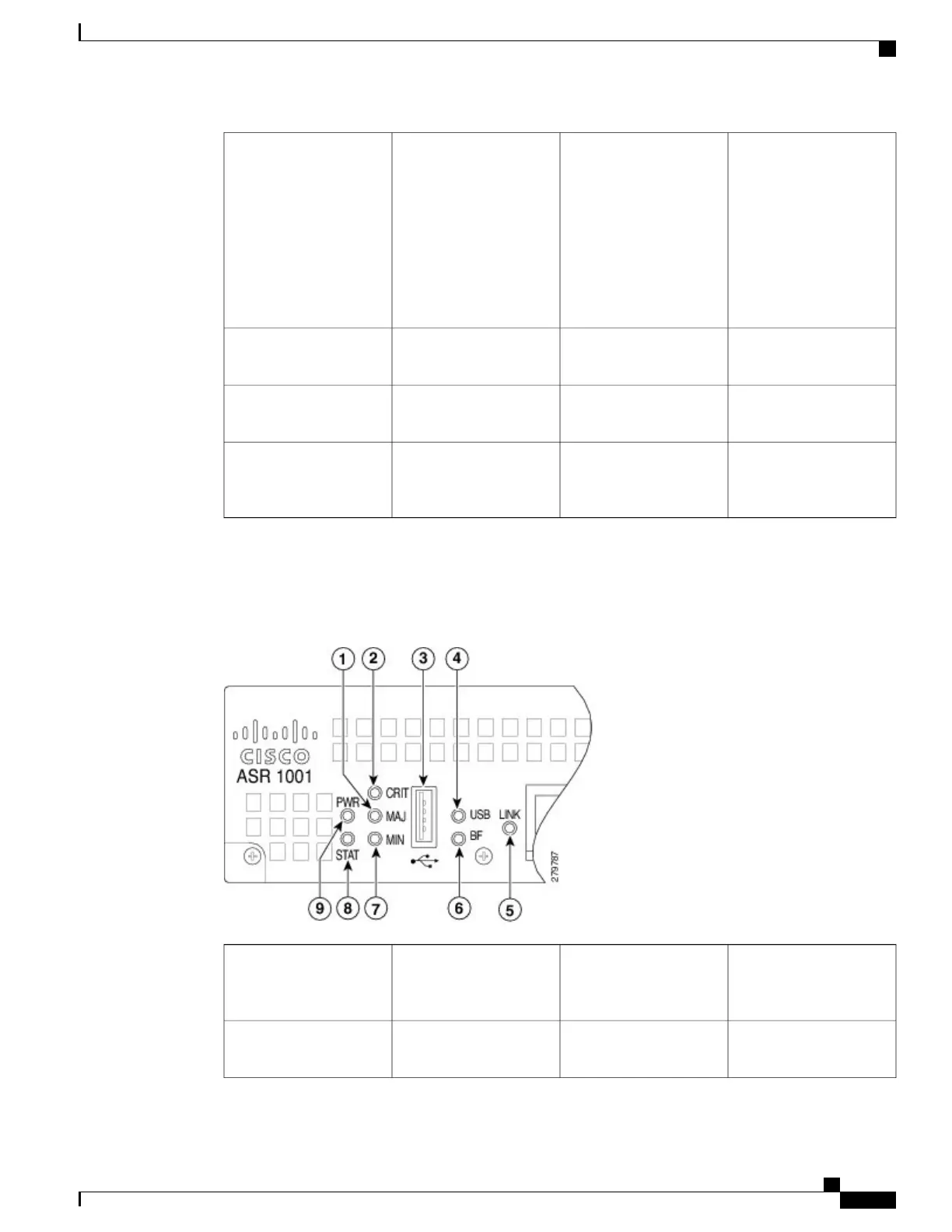

Figure 201: Common LEDs for Cisco ASR 1001 Route Processor
BF—Internal bootflash
LED indicates activity of
the EUSB device
6
MAJ LED—major alarm
indicator
1
MIN LED —minor alarm
indicator
7
CRIT LED—critical
alarm indicator
2
Cisco ASR 1000 Series Router Hardware Installation Guide
415
Cisco ASR 1001 Router Overview and Installation
Cisco ASR 1001 Router Architecture

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
