DETAILED STEPS
Step 1
At the front of the router, ensure that the power switch is in the Standby position.
Step 2
Move the circuit-breaker switch handle to the Off position, and apply tape to hold it in the Off position.
Step 3
Gather the DC power supply terminal block plug.
Step 4
Insert the lead wires before inserting the plug into the terminal block header on the DC power supply.
Step 5
Use a 10 gauge wire-stripping tool to strip each of the three wires coming from the DC input power source. If you are
using the connector plug with the raised screw holes, strip the wires to 0.39 inch (10 mm) + 0.02 inch (0.5 mm). If you
are using the connector plug with the screw holes that are not raised, strip the wires to 0.27 inch (7 mm) + 0.02 inch (0.5
mm). Do not strip more than the recommended length of wire because doing so could leave the wire exposed from the
terminal block plug. The following figure shows a stripped DC input power source wire.

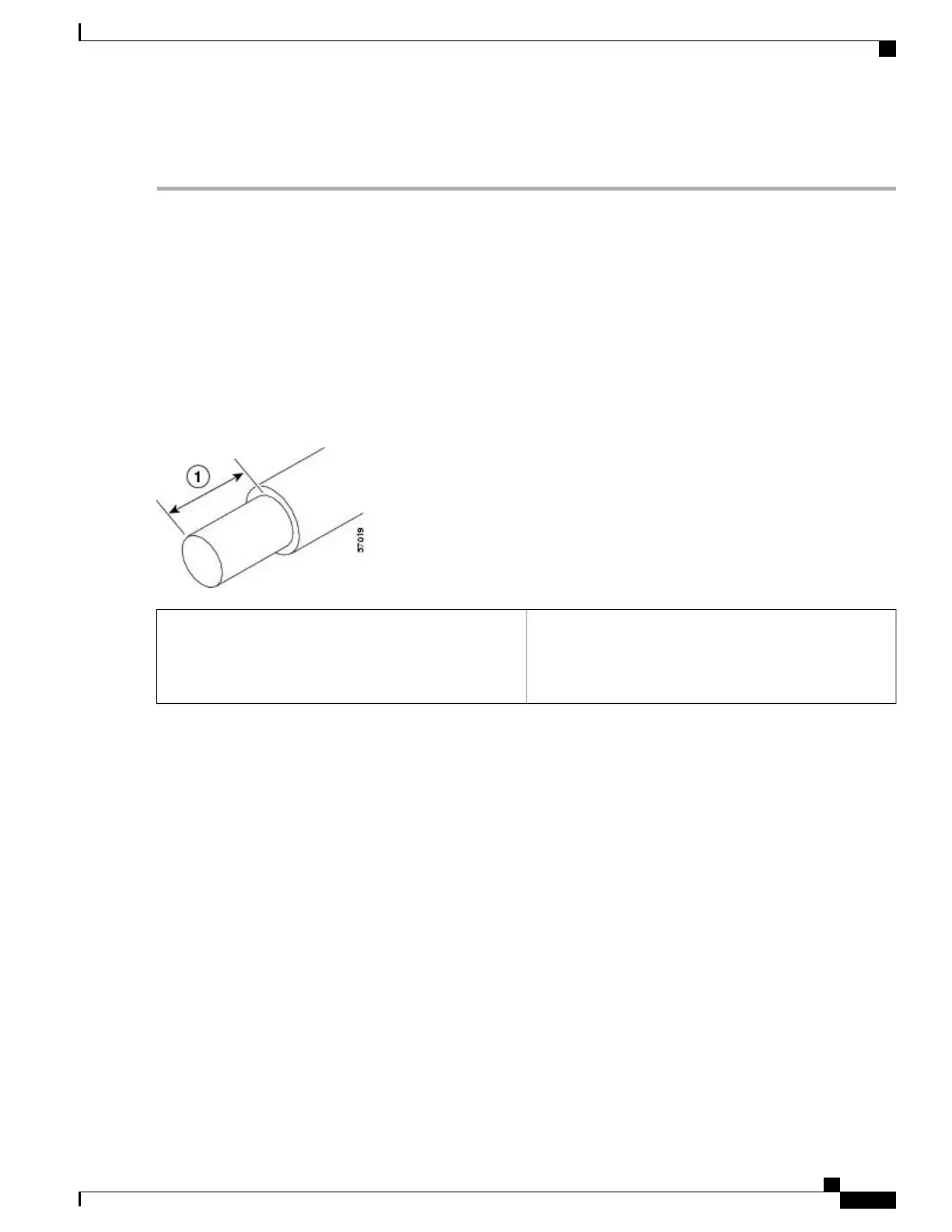

Figure 222: Stripping the DC Input Power Source Wire
0.39 inch (10 mm) is the recommended wire-strip length
for the connector plug that has raised screw holes. 0.27
inch (7 mm) is the recommended wire-strip length for the
connector plug that does not have raised screw holes.
1
An exposed wire lead from a DC input power source can conduct harmful levels of electricity. Be sure that
no exposed portion of the DC input power source wire extends from the terminal block plug. Statement 122
Danger
Step 6
Identify the positive, negative, and ground feed positions for the terminal block connection. The recommended wiring
sequence is:
•
Ground lead wire (right)
•
Positive (+) lead wire (middle)
• Negative (–) lead wire (left)
Cisco ASR 1000 Series Router Hardware Installation Guide
455
Cisco ASR 1001 Router Overview and Installation
Installing DC Input Power on the Cisco ASR 1001 Router

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
