Cisco ASR 1002 Hardware Installation Guide

DC power supply ground
lead wire
3DC power supply negative
(-) lead wire
1
——
DC power supply positive
(+) lead wire
2
Secure the wires coming in from the terminal block plug so that they cannot be disturbed by casual contact.Caution
Step 10
Use a tie wrap to secure the wires to the rack, so that the wires are not pulled from the terminal block plug by casual
contact. Make sure the tie wrap allows for some slack in the ground wire. The following figure shows the DC terminal
block plug inserted and the tie wrap secured.

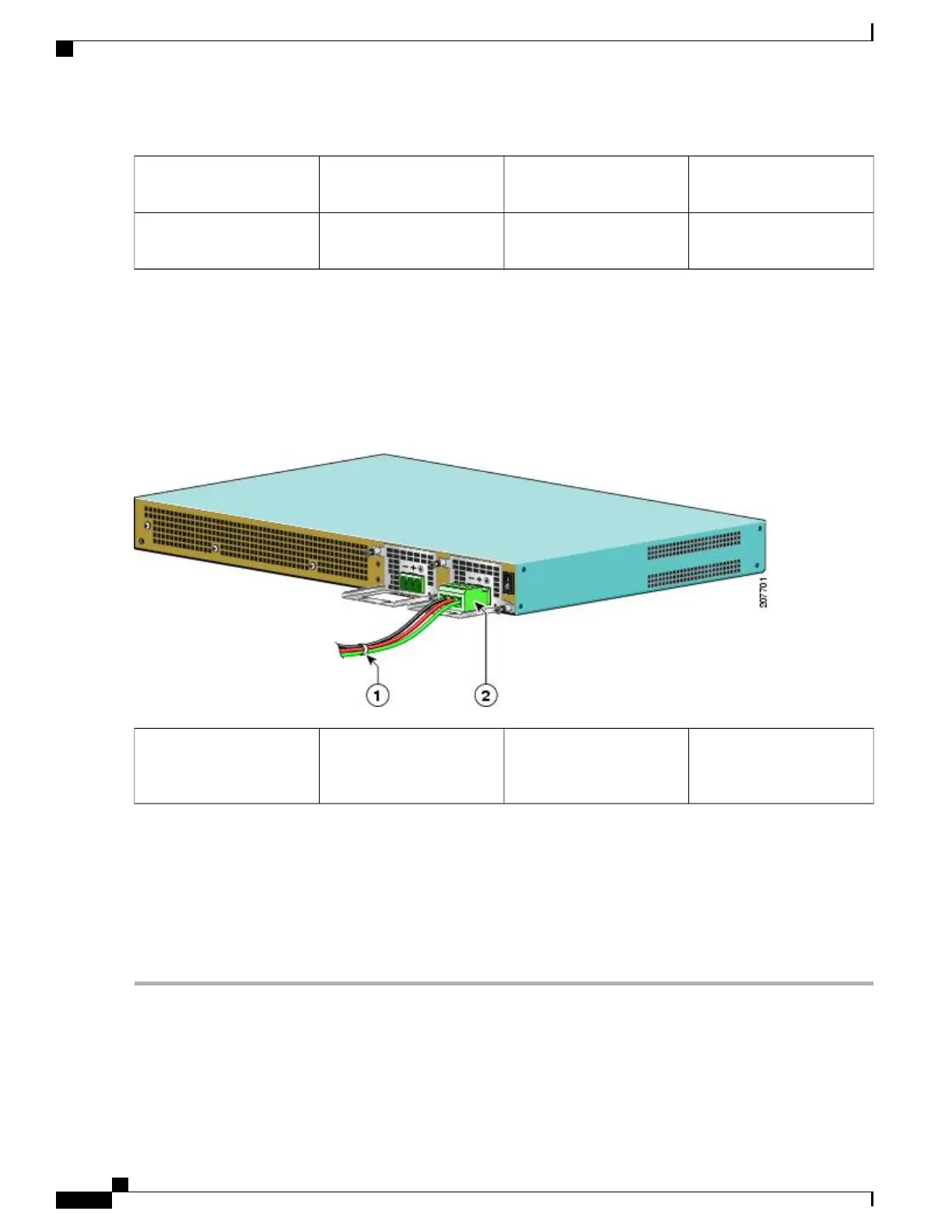

Figure 226: Complete DC Terminal Block Plug Insertion and Secure Tie Wrap
DC power supply terminal
block plug being inserted
into terminal block header.
2Lead wires secured with a
tie wrap
1
Step 11
Ensure that the terminal block plug is fully seated in the terminal block header on the DC power supply panel. You will
hear a snap or click when installed properly.
Step 12
Remove the tape (if any) from the circuit breaker switch handle, and move the circuit breaker switch handle to the On
position.
Step 13
At the rear of the router, place the power supply Standby switch in the On position to turn on the router.
The power supply LEDs light up when power is supplied to the router.
What to Do Next
This completes the procedure for connecting the DC power supply in the Cisco ASR 1001 Router.
Cisco ASR 1000 Series Router Hardware Installation Guide
458
Cisco ASR 1001 Router Overview and Installation
Installing DC Input Power on the Cisco ASR 1001 Router

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
