The following figure shows the terminal block ground lugs for the ASR1006-PWR-DC power supply of the Cisco ASR
1006 Router.

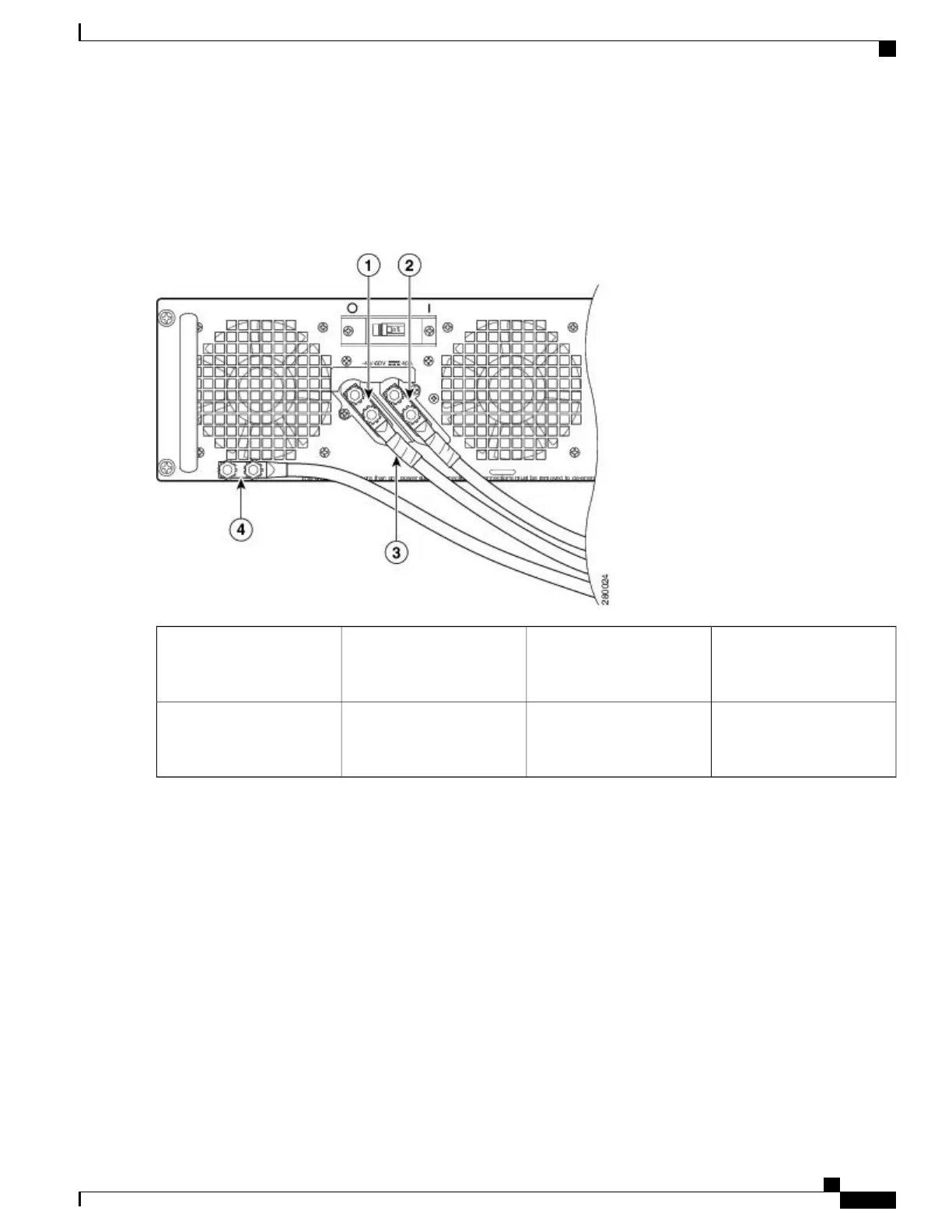

Figure 271: Cisco ASR 1006 Router DC Power Supply (ASR1006-PWR-DC) Terminal Block Ground Lugs
Protective sleeving area3Negative lug and wire with
sleeving wrapped around the
wire and end of lug
1
Ground stud and cable4Positive lug and wire with
sleeving wrapped around the
wire and end of lug
2
