Cisco ASR 1002 Hardware Installation Guide

SUMMARY STEPS
1.
On the rear of the router, turn the power switch to the Standby position.
2.
Unplug the power cable from the power source.
3.
You must remover the top cover from the chassis before you remove any power supply.
4.
To remove the power cord from PS1, you must position the power supply cable in order to access the
power supply fasteners. Hold back the power supply cable in PS0, as shown in the following figure making
sure not to unplug the power cable.
5.
Continue to hold back the power supply cable in PS0, to gain access to the fastener. Unscrew the both
fasteners on the power supply in slot 1.
6.

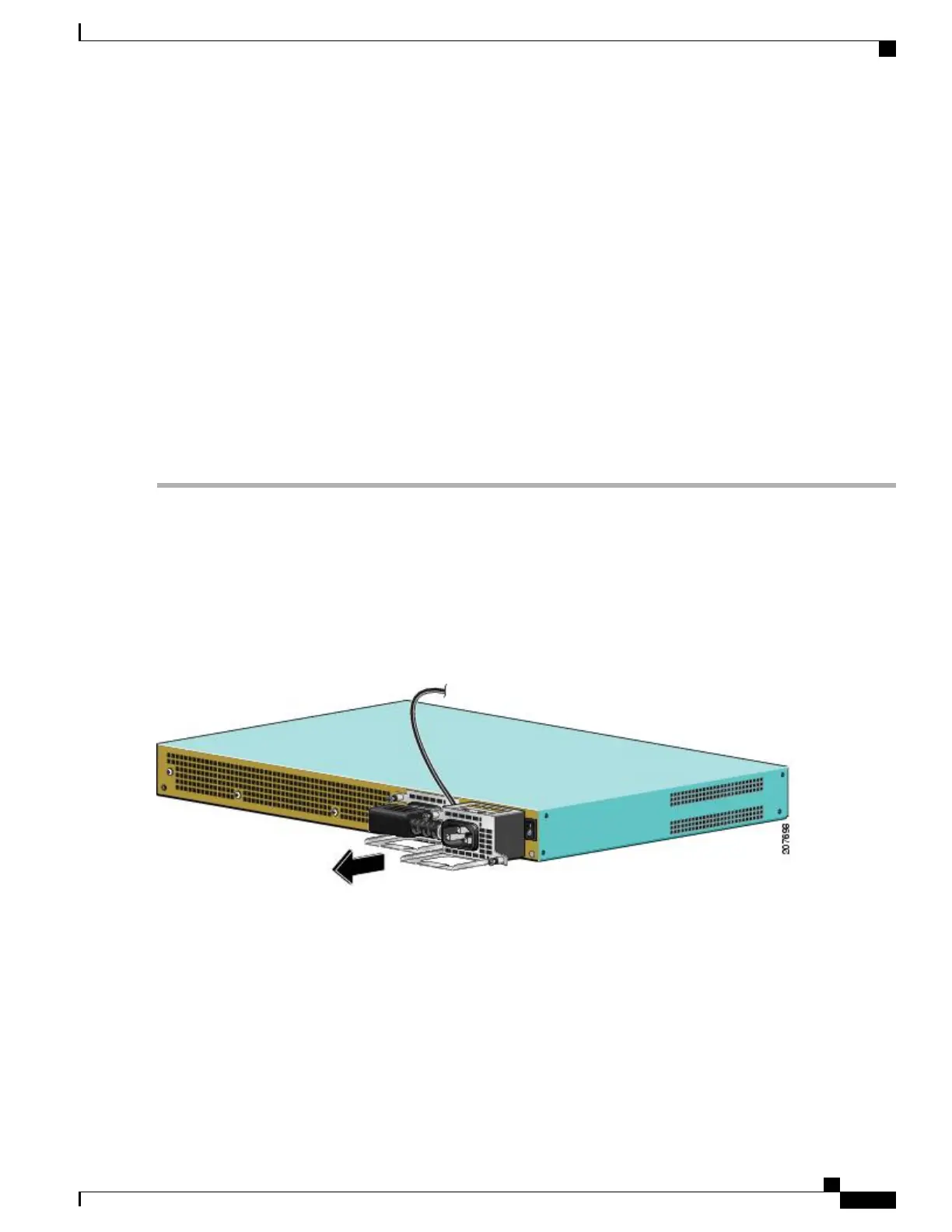

Once the power supply fasteners are loosened, grasp the handle with one hand and support the weight of
power supply with the other hand and pull the power supply out of the slot (see the following figure).
7.
Repeat the same steps to remove the AC power supply from Slot PS0.
DETAILED STEPS
Step 1
On the rear of the router, turn the power switch to the Standby position.
Step 2
Unplug the power cable from the power source.
Step 3
You must remover the top cover from the chassis before you remove any power supply.
Step 4
To remove the power cord from PS1, you must position the power supply cable in order to access the power supply
fasteners. Hold back the power supply cable in PS0, as shown in the following figure making sure not to unplug the
power cable.
Figure 303: Positioning the AC Power Supply Cable in Slot PS0
Step 5
Continue to hold back the power supply cable in PS0, to gain access to the fastener. Unscrew the both fasteners on the
power supply in slot 1.
The Cisco ASR 1001 power supplies are long and narrow. It is recommended that while you pull the power supply
out of the chassis, support the power supply from the bottom with the other hand.
Tip
Cisco ASR 1000 Series Router Hardware Installation Guide
603
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing AC Power Supply from the Cisco ASR 1001 Router

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
