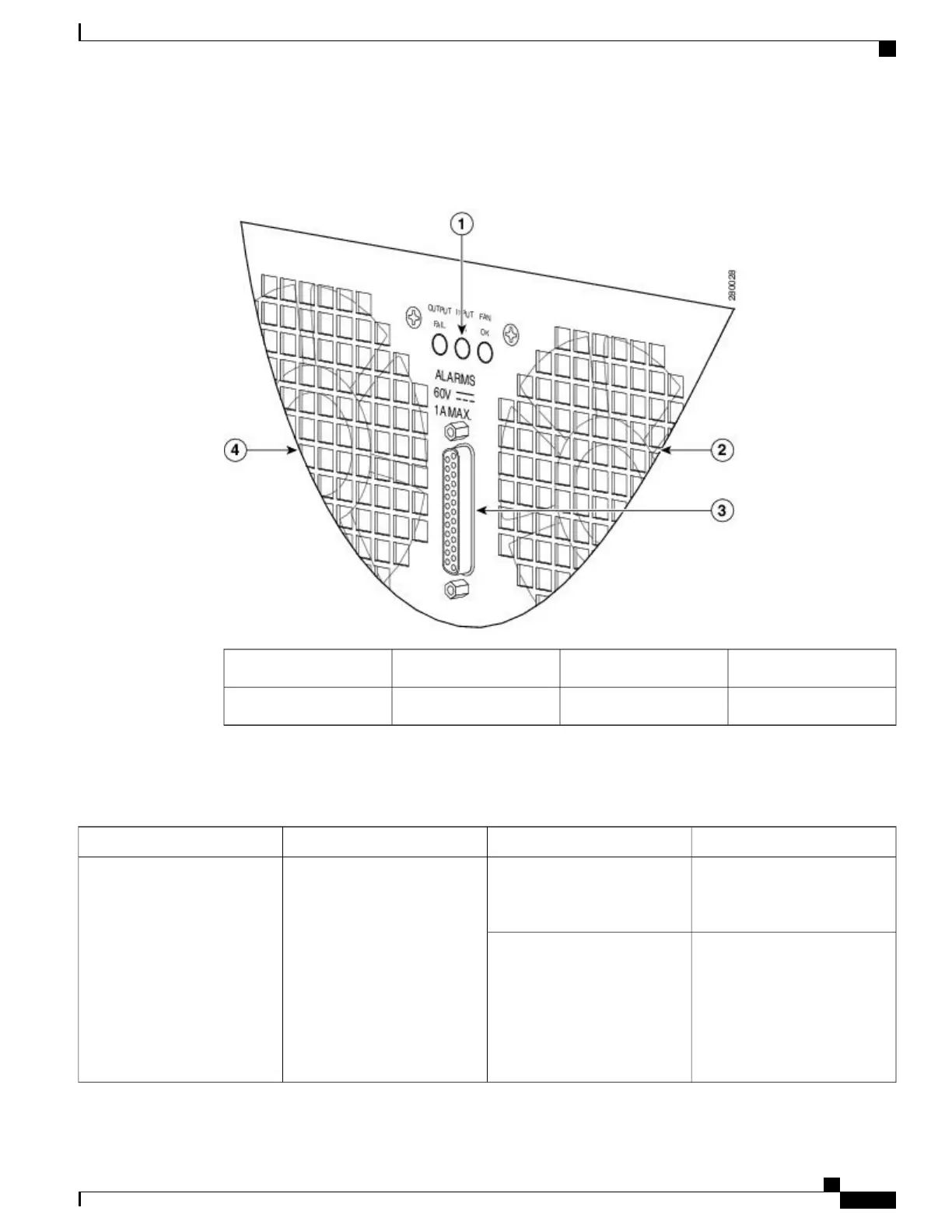

The following figure shows the AC power supply LEDs and DB -25 alarm connector.
Figure 14: Cisco ASR 1004 Router AC Power Supply LEDs and DB -25 Alarm Connector
DB-25 alarm connector3AC power supply LEDs1
AC power supply fan4Power supply fan2
The following table describes the power supply LEDs and connectors on the rear of the chassis.
Table 20: Cisco ASR 1004 Router AC Power Supply LEDs and Connector
DescriptionColorLEDLED Label
LED illuminates green to signal
that the AC power supply input
voltage is greater than 85 V.
GreenPower supply activityINPUT OK
If LED is not illuminated, then
the AC input voltage is less than
70 V or the power supply is
turned off. For an AC input
voltage between 70 V and 85V,
the INPUT OK LED can be
either on, off, or flashing
None
Cisco ASR 1000 Series Router Hardware Installation Guide
61
Cisco ASR 1000 Series Routers Component Overview
Cisco ASR 1004 AC Power Supply LEDs and Connector

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
