7. Other Field Service Ver. 1.0 Aug. 2005
64
bizhub 200/250/350
Maintenance

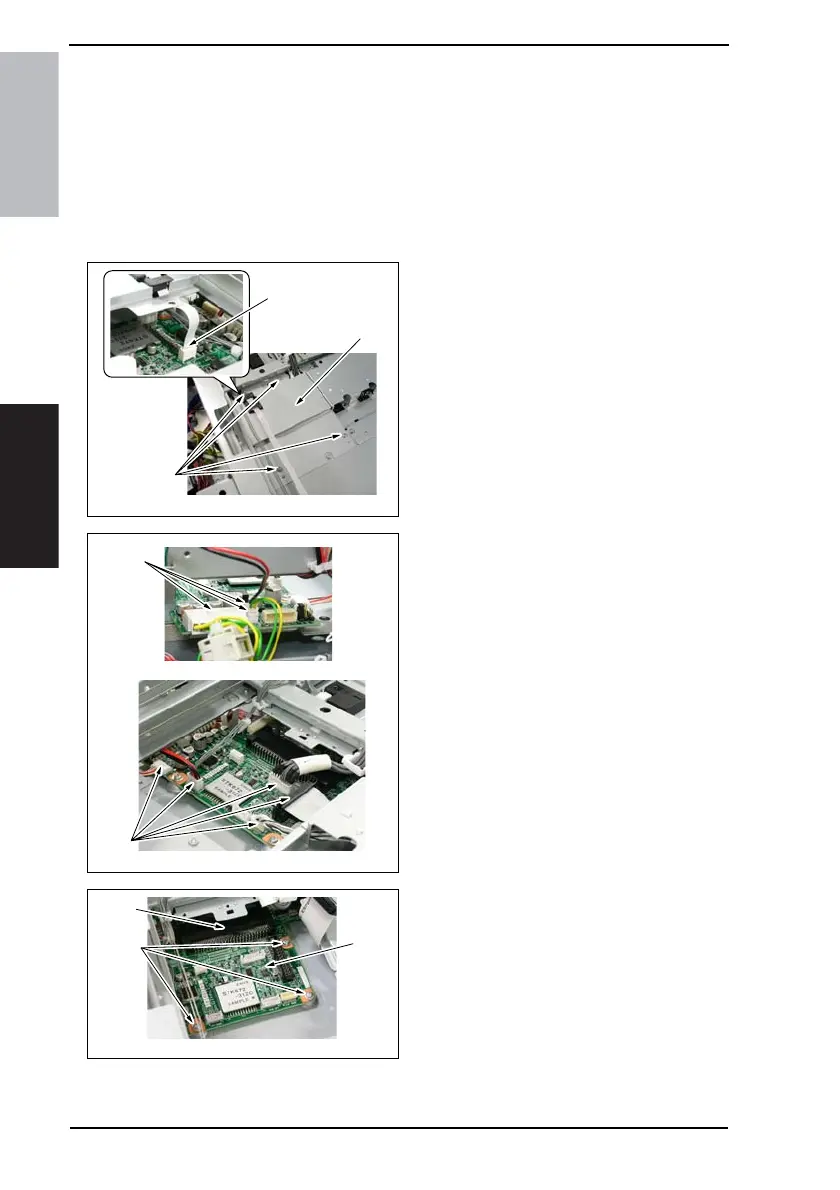

7.3.21 BCRS Board
1. Remove the Upper Rear Cover.
☞ 50
2. Remove the IR Upper Left Cover.
☞ 49
3. Remove the Front Holding Bracket.
☞ 49
4. Remove the Original Glass.
☞ 49
5. Remove four screws [1], flat cable
[2], and the BCRS Board cover [3].
6. Unplug eight connectors [3].
7. Remove three screws [4], disconnect
the connector [5], and remove the
BCRS Board [6].
4040F2C696DA
[3]
[2]
[1]
4040F2C697DA
[3]
[3]
4040F2C698DA
[4]
[5]
[6]
