Develop ineo 350 - Disassembly;Assembly List (Other Parts); Disassembly;Assembly Procedure

Field Service Ver. 1.0 Aug. 2005 4. Other
5
SD-502Maintenance
4.2 Disassembly/Assembly list (Other parts)
4.2.1 Disassembly/Assembly parts list
4.3 Disassembly/Assembly procedure

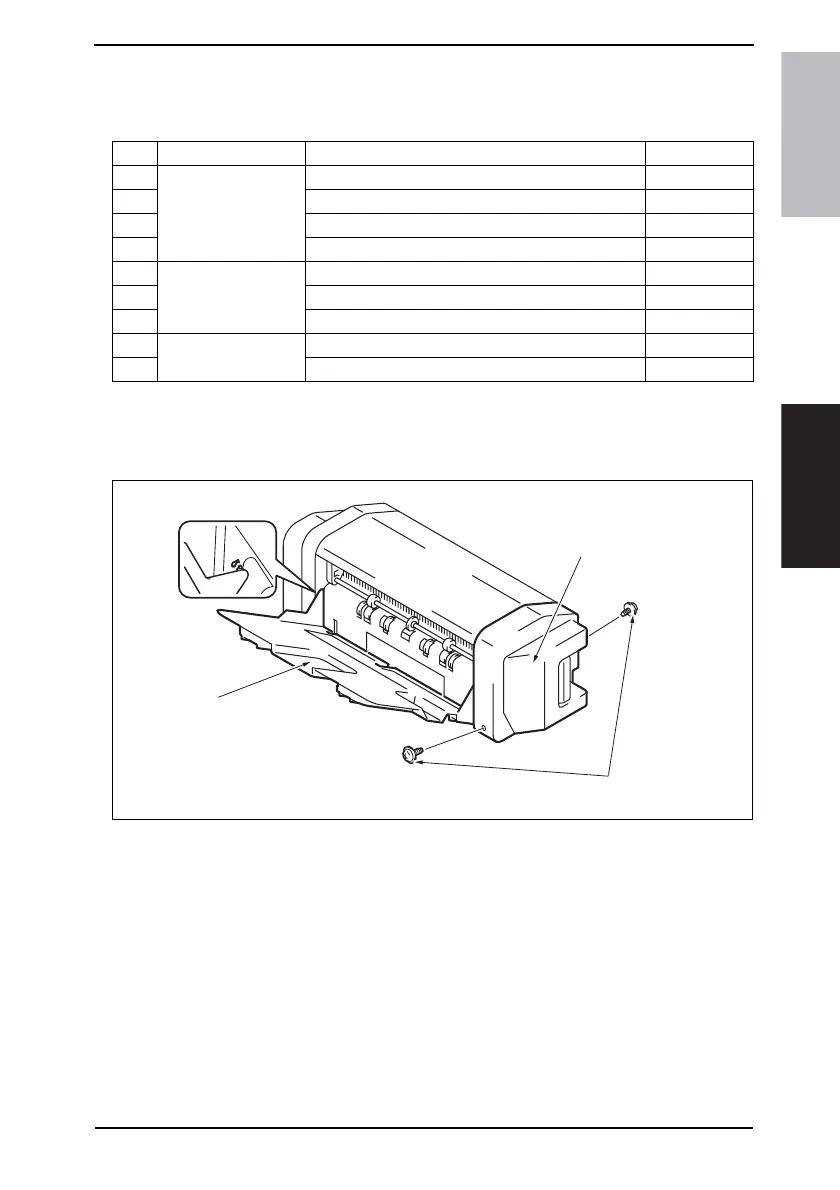

4.3.1 Paper Output Tray/Front Cover
1. Align the cutout and remove the Paper Output Tray [1].
2. Remove two screws [2], and remove the Front Cover [3].
No. Section Part name Ref.Page
1
Exterior parts
Paper Output Tray
☞ 5
2 Front Cover
☞ 5
3 Upper Cover
☞ 6
4 Rear Cover
☞ 6
5
Unit
Saddle Unit
☞ 7
6 Crease Unit
☞ 8
7 Stapler Unit
☞ 9
8
Others
In & Out Guide Drive Motor
☞ 13
9 Crease Roller
☞ 15
4511F2C500DA
[1]
[3]
[2]
