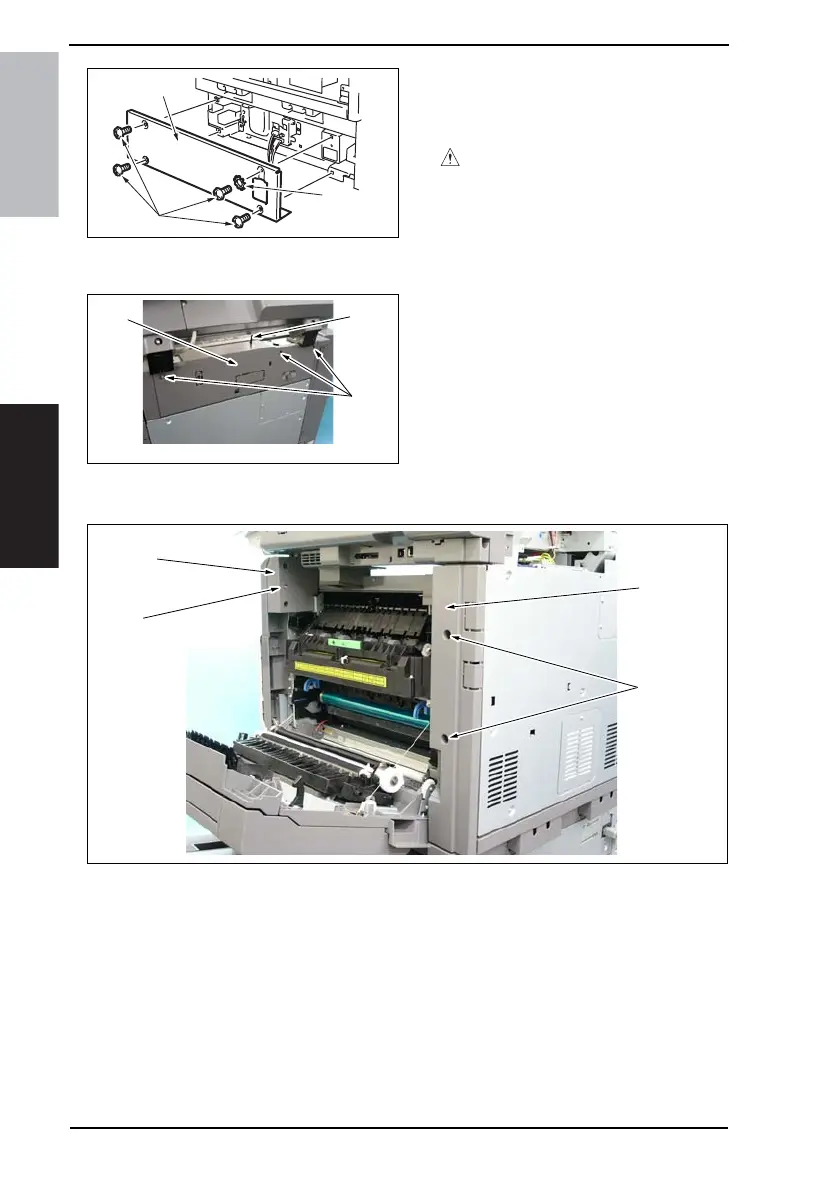

3. Remove the four screws [5], one
wave washer [6], and the Tray Rear
Cover [7].
CAUTION
• Make sure that the wave washer is
installed at the correct position.
7.3.3 Upper Rear Cover
1. Remove three screws [1] and, push-
ing down the actuator [2], remove the
Upper Rear Cover [3].
7.3.4 Rear Right Cover/Front Right Cover
1. Open the Right Door.
2. Remove two Screws [1], and remove the Rear Right Cover [2].
3. Remove the Screws [3], and remove the Front Right Cover [4].
4040F2C660DA
[6]
[5]
[7]
4040F2C662DA
[1]
[2]
[3]
4040F2C663DA
[1]
[2]
[3]
[4]
