Develop ineo 350 - Duplex Unit; Switch Back Unit

7. Other Field Service Ver. 1.0 Aug. 2005
76
bizhub 200/250/350
Maintenance

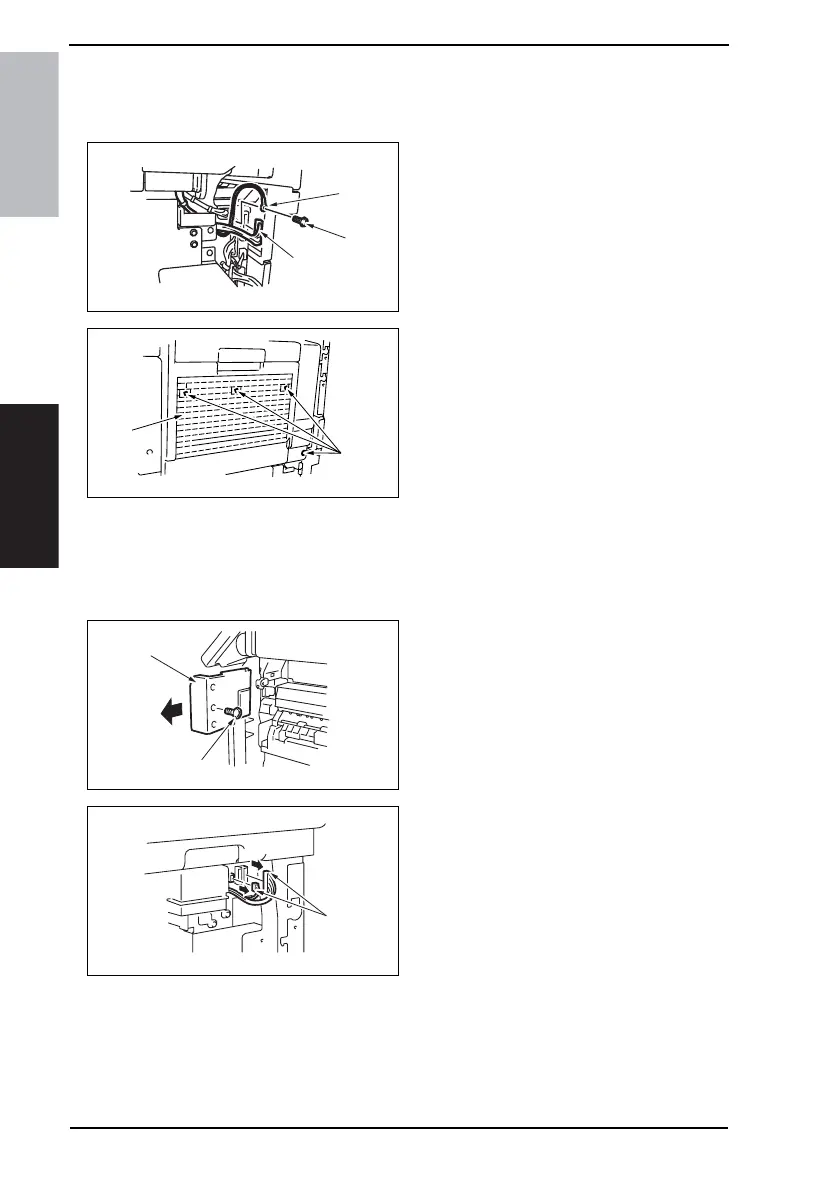

7.3.28 Duplex Unit
1. Remove the Lower Right Rear Cover.
☞ 49
2. Disconnect the connector [1] and
remove the screw [2] and ground
wire [3].
3. Remove four screws [4] and the
Duplex Unit [5].
7.3.29 Switch Back Unit
1. Open the Right Door.
2. Remove the Rear Right Cover.
☞ 50
3. Remove the screw [1] and the Front
Right Cover [2].
4. Unplug two connectors [3] of the
Switch Back Unit.
4040F2C569DA
[2]
[1]
[3]
4040F2C570DA
[4]
[5]
4040F2C560DA
[2]
[1]
4040F2C563DA
[3]
