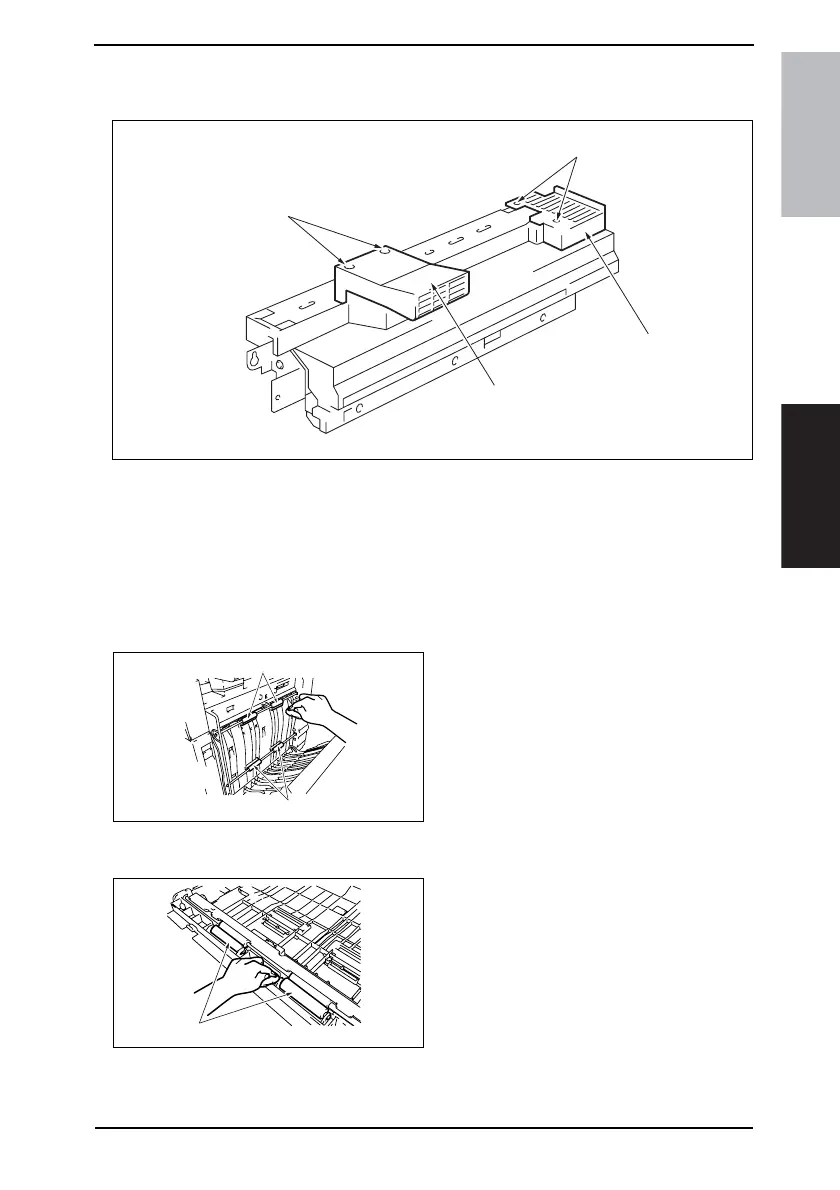

2.3.2 Switch Back Unit
A. Fan Motor Cover/Right Cover
1. Remove two screws [1] and Fan Motor Cover [2].
2. Remove two screws [3] and Right Cover [4].
2.4 Cleaning procedure
NOTE
• The alcohol described in the cleaning procedure represents the isopropyl alcohol.
2.4.1 Cleaning of the Duplex Unit Transport Roller/Roll 1 and 2
1. Open the Duplex Unit Door.
2. Using a soft cloth dampened with
alcohol, wipe the Duplex Unit Trans-
port Roller/Roll 1 and 2 [1] clean of
dirt.
2.4.2 Cleaning of the Duplex Unit Transport Roller/Roll 3
1. Remove the Duplex Unit.
2. Using a soft cloth dampened with
alcohol, wipe the Duplex Unit Trans-
port Roller/Roll 3 [2] clean of dirt.
4526F2C500DA
[2]
[4]
[3]
[1]
4040F2C502DA
[1]
[1]
4040F2C503DA
[2]
