Develop ineo 350 - Replacing the Bypass Tray Separation Roller Assy

Field Service Ver. 1.0 Aug. 2005 4. Periodical check
19
bizhub 200/250/350Maintenance

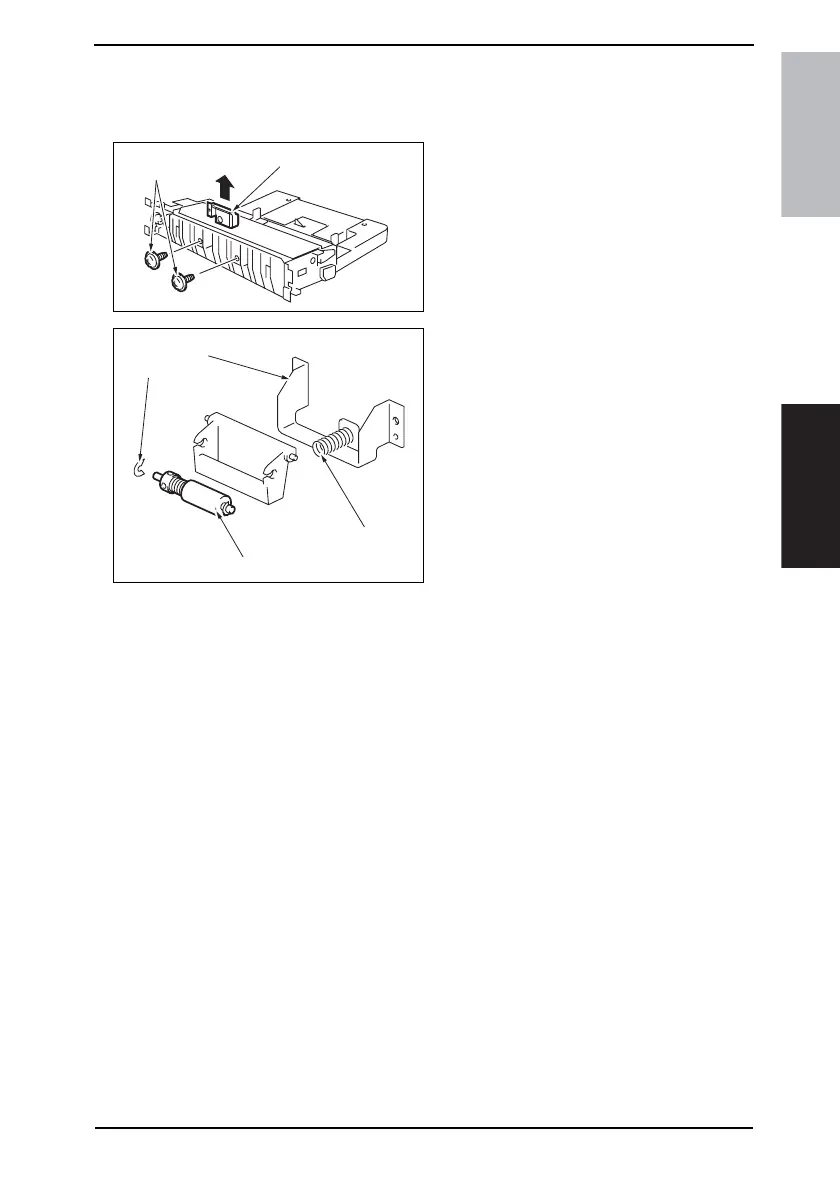

4.5.2 Replacing the Bypass Tray Separation Roller Assy
1. Remove the Multi Bypass Unit.
☞ 71
2. Remove two screws [1], and remove
Bypass Paper Separation Roller fix-
ing bracket Assy [2].
3. Snap off the C-clip [3], and remove
the spring [4] and the guide plate [5].
Remove the Bypass Paper Separa-
tion Roller Assy [6].
4. To reinstall, reverse the order of
removal.
5. Select [Tech. Rep. Mode] →
[Counter] → [Special Parts Counter]
→ [Bypass] and clear the counter.
NOTE
• Replace the Bypass Feed Roller
and the Bypass Separation Roller
Assy at the same time.
[2]
[1]
4037F2C515DA
4037F2C522DA
[3]
[5]
[4]
[6]
