7.4 Cleaning procedure
NOTE
• The alcohol described in the cleaning procedure represents the isopropyl alcohol.
7.4.1 Manual Bypass Feed Roller

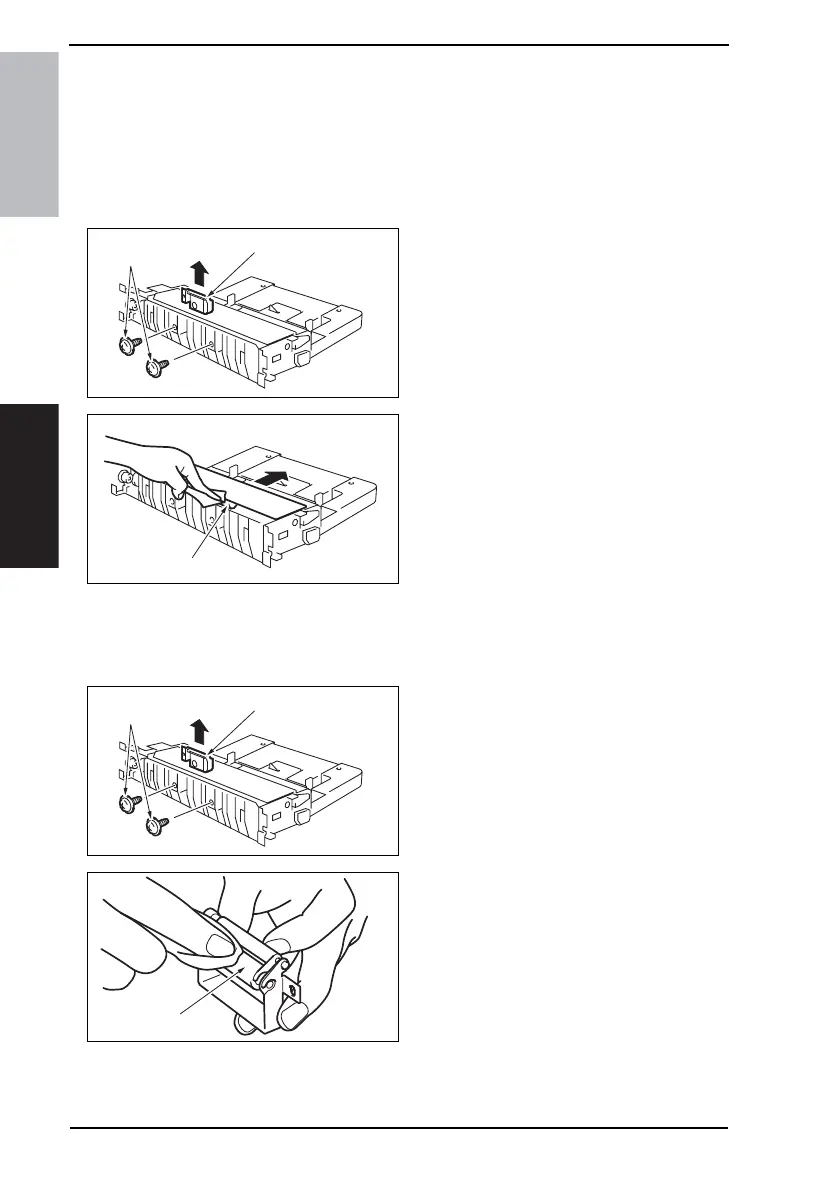

1. Remove the Manual Bypass Unit.
☞ 71
2. Remove two screws [1] and the Man-
ual Bypass Separation Fixing
Bracket Assy [2].
3. Using a soft cloth dampened with
alcohol, wipe the Manual Bypass
Feed Roller [3] clean of dirt.
7.4.2 Manual Bypass Separation Roller
1. Remove the Manual Bypass Unit.
☞ 71
2. Remove two screws [1] and the Man-
ual Bypass Separation Fixing
Bracket Assy [2].
3. Using a soft cloth dampened with
alcohol, wipe the Manual Bypass
Separation Roller [3] clean of dirt.
