8. Jam Display

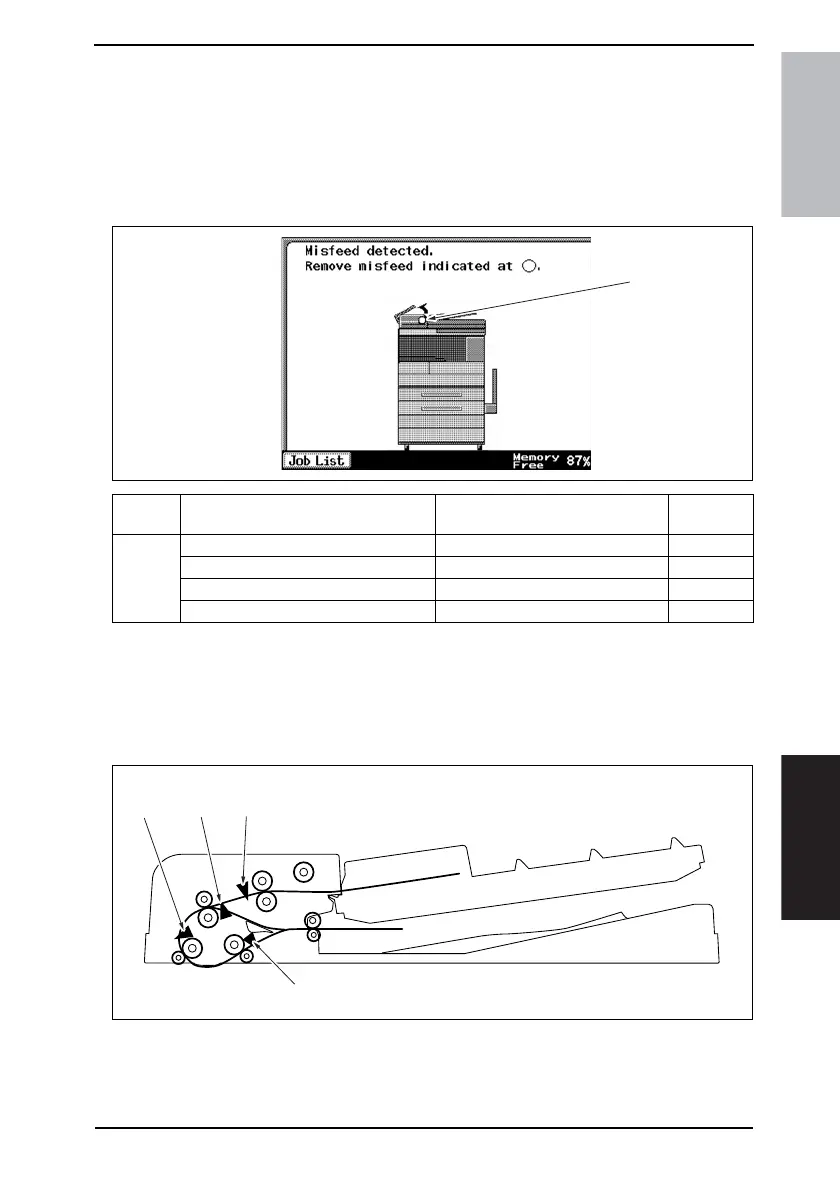

8.1 Misfeed display
• When misfeed occurs, message, misfeed location “Blinking” and paper location “Light-
ing” are displayed on the Touch Panel of the main unit.
8.1.1 Misfeed display resetting procedure
• Open the corresponding door, clear the sheet of paper misfeed, and close the door.
8.2 Sensor layout
Panel
display
Misfeed location Misfeed access location Action
[1]
Paper Take-Up section Paper Take-Up section Cover
☞ 28
Transport section Paper Take-Up section Cover
☞ 29
Turnover section Paper Exit section Cover
☞ 29
Paper Exit section Paper Exit section Cover
☞ 30
4344F4E503DA
[1]
[1] Original Detection Sensor PC8-ADF [3] Separator Sensor PC6-ADF
[2] Registration Sensor PC9-ADF [4] Exit/Turnover Sensor PC10-ADF
4344F4C500DA
[1] [2] [3]
[4]
