9. Remove the C-ring [11], and remove
the gear [12] and the bushing [13].
10. Remove two pins [14].
11. Remove the Feed Roller [15].
NOTE
• Use care not to lose the pin.
2.1.2 Replacing the Separation Roller
1. Open the Upper Door [1].
2. Hold the [2] sections in the figure,
and remove the cover [3].
3. Remove the Separation Roller Assy
[4].
NOTE
• Use care not to lose the spring at
the bottom side of the Separation
Roller Assy.
4. While opening up the holder [5],
remove the shaft [6].
NOTE
• Opening the holder too much can
break the holder.
4344F2C504DA

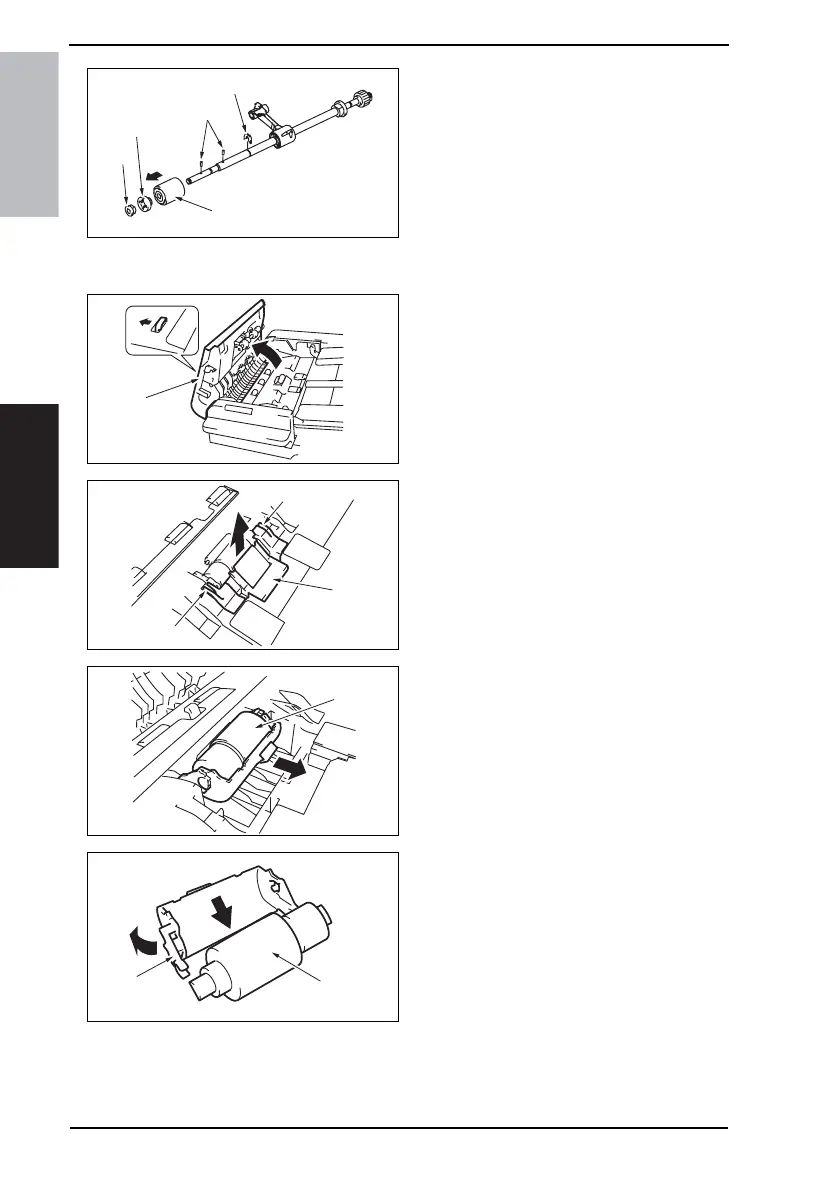

[11]
[14]
[15]
[12]
[13]
4344F2C500DA
[1]
4344F2C505DA
[2]
[2]
[3]
4344F2C506DA
[4]
4344F2C507DA
[6]
[5]
