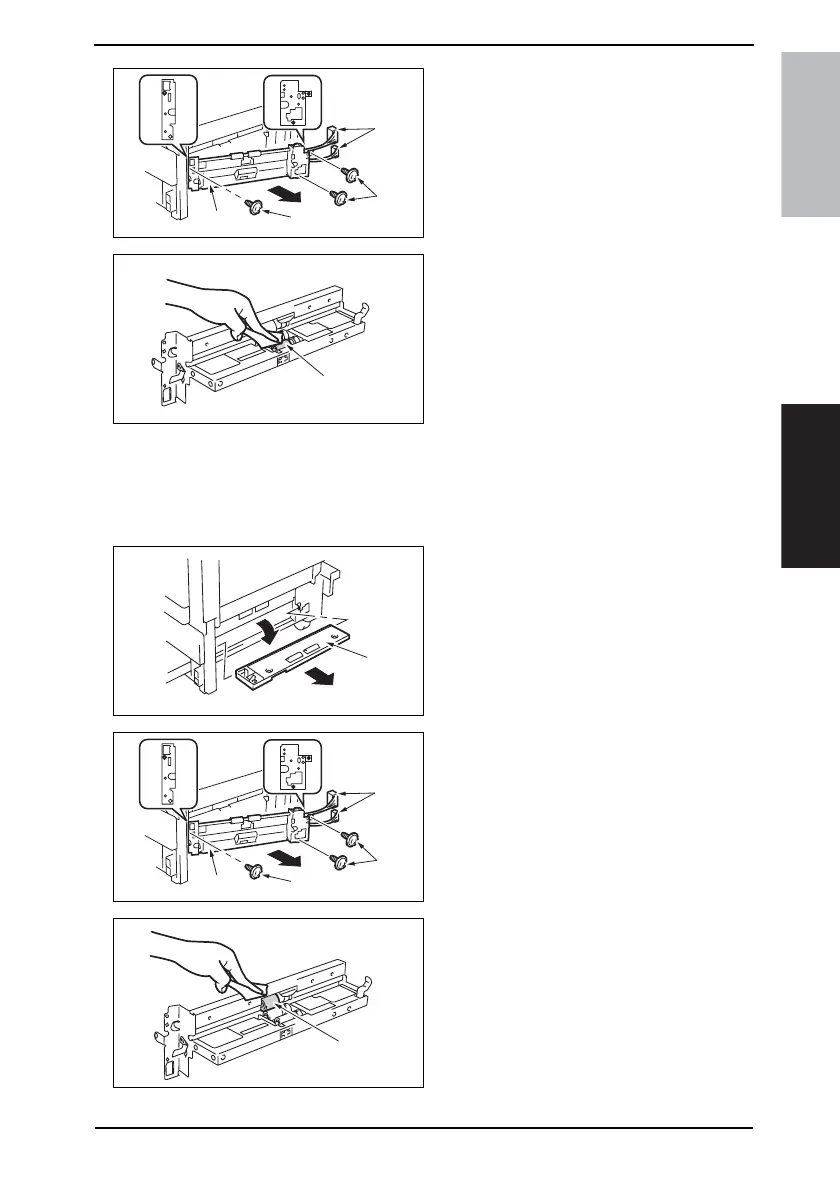

4. Remove two connectors [2].
5. Remove three screws [3] and the
Tray 2 Feed Roller Assy [4].
6. Using a soft cloth dampened with
alcohol, wipe the Tray 2 Pick-up
Roller [5] clean of dirt.
7.4.8 Tray 2 Separation Roller
1. Slide out the Tray 2.
2. Remove the Manual Bypass Unit.
☞ 71
3. Remove the Lower Right Cover [1].
4. Remove two connectors [2].
5. Remove three screws [3] and the
Tray 2 Feed Roller Assy [4].
6. Using a soft cloth dampened with
alcohol, wipe the Tray 2 Separation
Roller [5] clean of dirt.
4040F2C595DA
[2]
[3]
[3]
[4]
4040F2C532DA
[5]
4040F2C524DA
[1]
4040F2C595DA
[2]
[3]
[3]
[4]
4040F2C535DA
[5]
