4. Other Field Service Ver. 1.0 Aug. 2005
12
FS-508/PU-501/OT-601
Maintenance

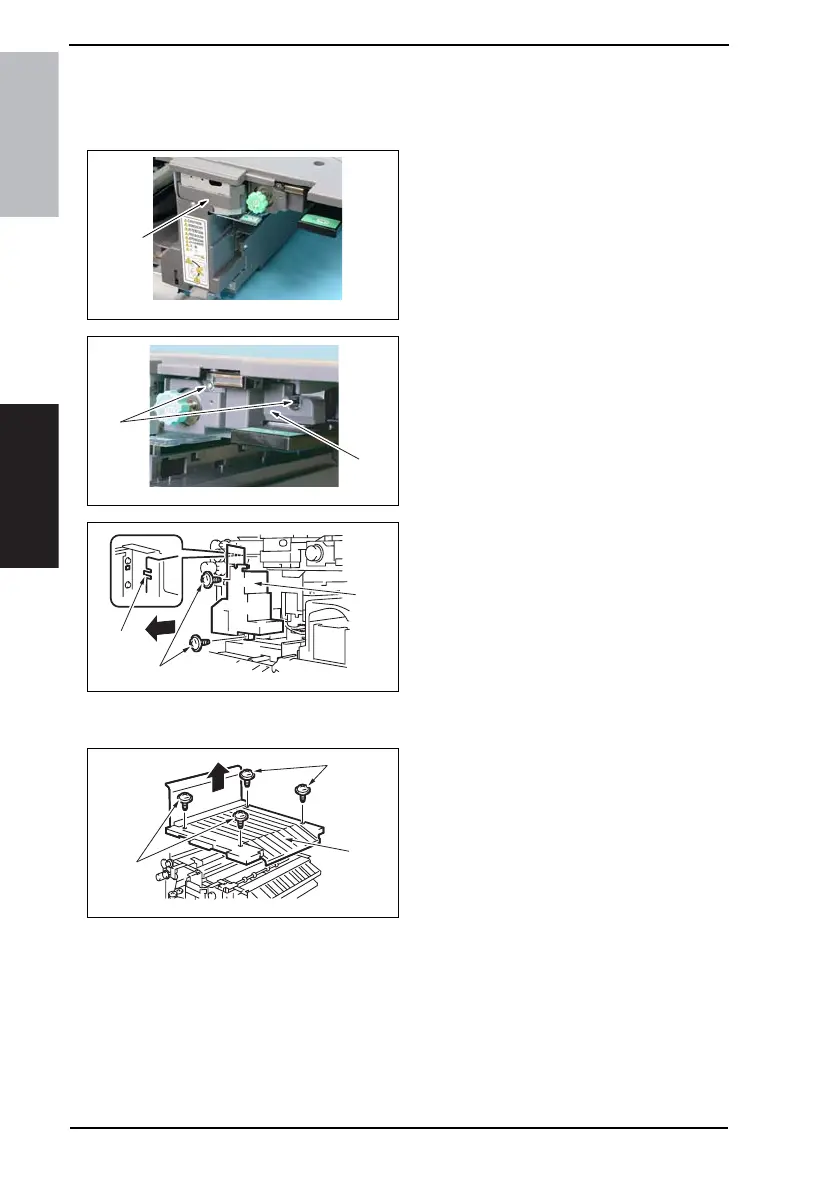

4.3 Disassembly/Assembly procedure
4.3.1 Horizontal Transport Upper Front Cover/Horizontal Transport Front Right
Cover/Horizontal Transport Lower Front Cover
1. Open the Front Door.
2. Unhook the tab, and remove the Hor-
izontal Transport Upper Front Cover
[1].
3. Remove two screws [2], and remove
the Horizontal Transport Front Right
Cover [3].
4. Remove two screws [4], and remove
the Horizontal Transport Lower Front
Cover [5].
NOTE
• At reinstallation, first fit the tab [6]
into position.
4.3.2 Horizontal Transport Upper Cover
1. Remove four screws [1], and remove
the Horizontal Transport Upper
Cover [2].
4349F2C533DA
[1]
4349F2C534DA
[2]
[3]
4349F2C517DA
[5]
[4]
[6]
4349F2C516DA
[1]
[1]
[2]
