Develop ineo 350 - 2 Periodical Check; Maintenance Procedure (Periodical Check Parts)

Field Service Ver. 1.0 Aug. 2005 2. Periodical check
3
SD-502Maintenance
Maintenance
2. Periodical check
2.1 Maintenance procedure (Periodical check parts)
NOTE
• The alcohol described in the cleaning procedure of Maintenance represents the
isopropyl alcohol.

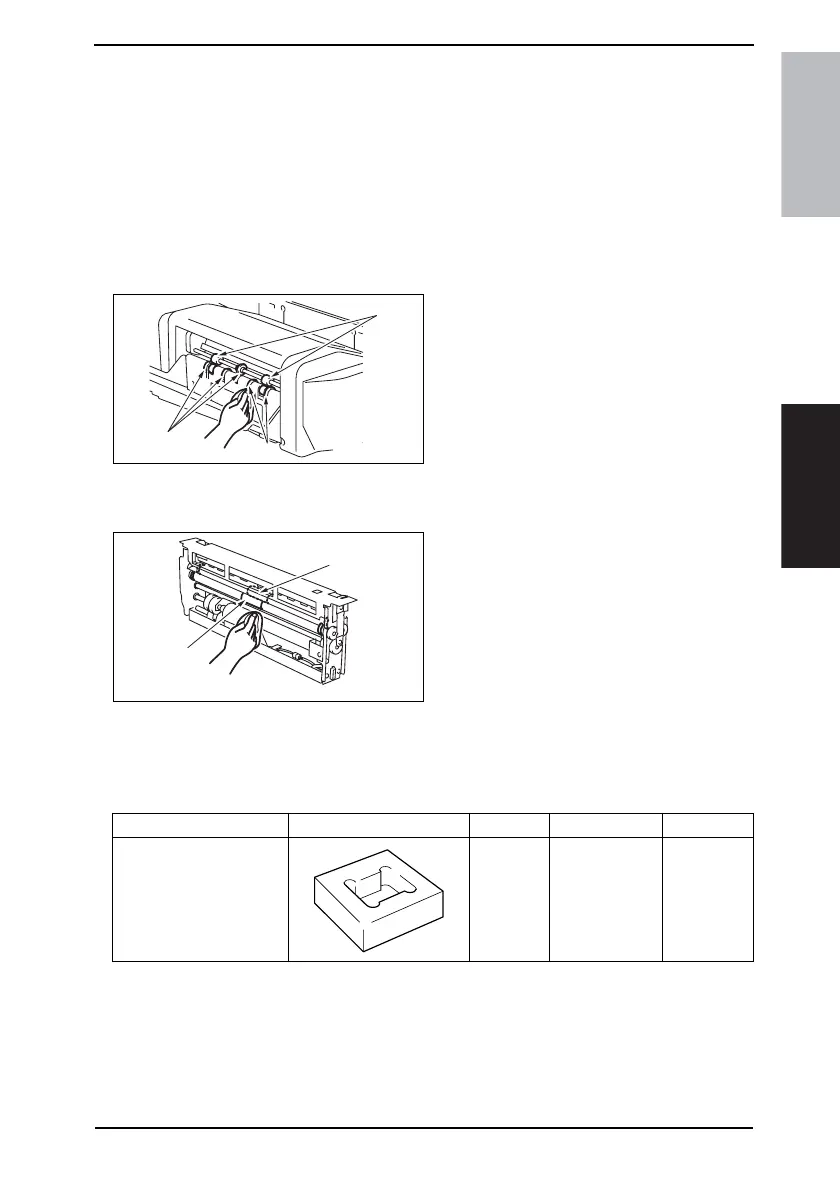

2.1.1 Cleaning of the Rollers and Rolls
1. Using a soft cloth dampened with
alcohol, wipe the roller [1] and roll
[2].
2. Remove the Crease Unit.
☞ 8
3. Using a soft cloth dampened with
alcohol, wipe the roller [3] and roll
[4].
3. Service tool
3.1 CE Tool list
4511F2C502DA
[1]
[2]
[2]
4511F2C506DA
[4]
[3]
Tool name Shape Personnel Parts No. Remarks
Stapler Unit Positioning Jig 1 4511-7901-01
