2. Periodical check Field Service Ver. 1.0 Aug. 2005
8
DF-605
Maintenance

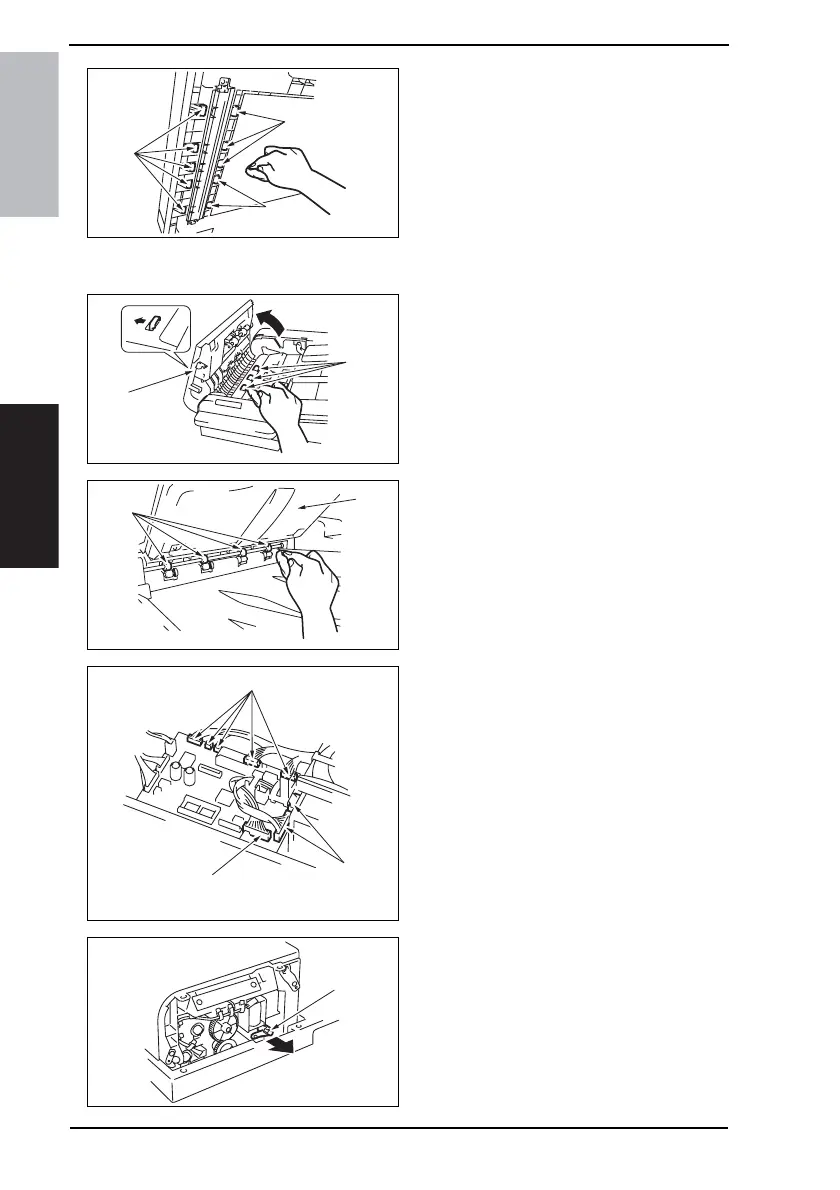

5. Open the Duplexing Document
Feeder.
6. Using a soft cloth dampened with
alcohol, wipe the roll [5].
2.1.5 Cleaning of Miscellaneous Rollers
1. Open the Upper Door [1].
2. Using a soft cloth dampened with
alcohol, wipe the roller [2].
3. Lift up the Original Feed Tray [3].
4. Using a soft cloth dampened with
alcohol, wipe the roller [4].
5. Remove the Front Cover and Rear
Cover.
☞ 11
6. Disconnect eight connectors [5] on
the board.
7. Remove the lever [6].
4344F2C512DA
[5]
[5]
[5]
4344F2C519DA
[1]
[2]
4344F2C520DA
[3]
[4]
4344F2C521DA
[5]
[5]
[5]
4344F2C530DA
[6]
To Next Page
