Field Service Ver. 1.0 Aug. 2005 23. Parts layout drawing
273
bizhub 200/250/350Appendix
Appendix
23. Parts layout drawing

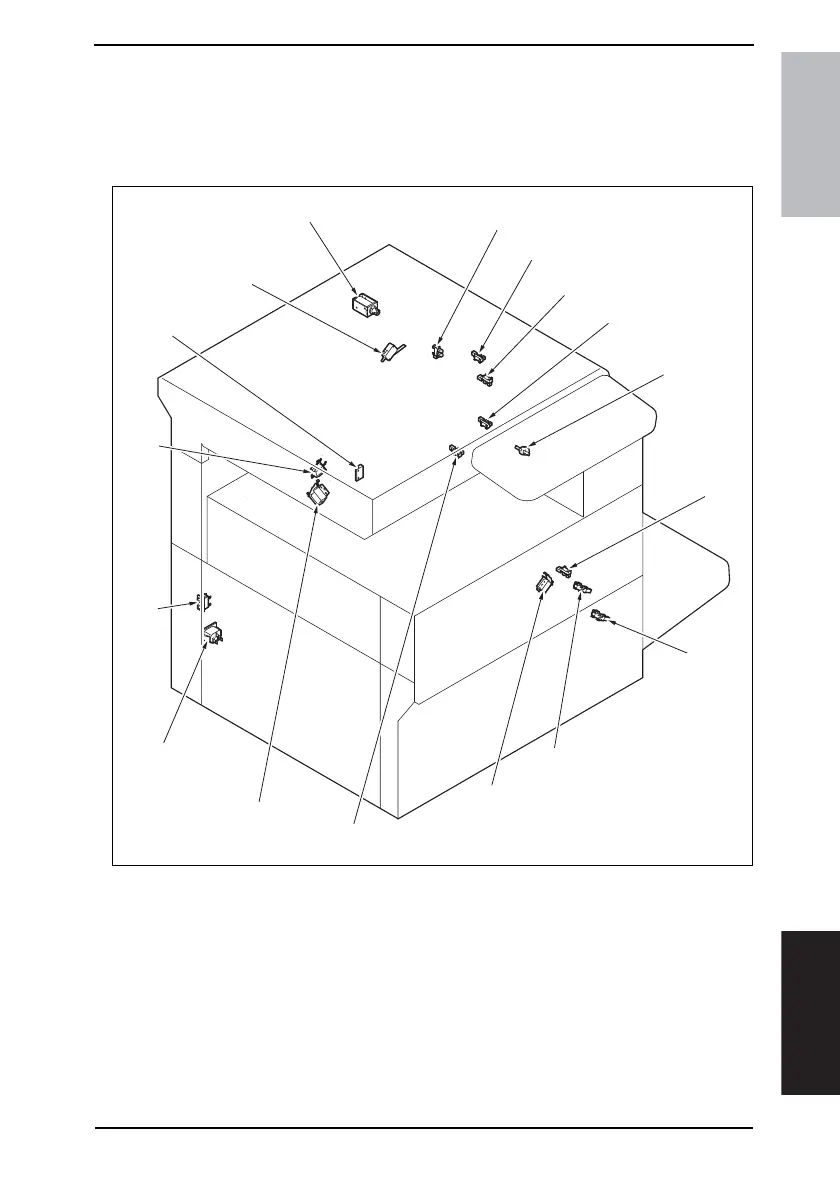

23.1 Main unit
[1] Duplex Unit Door Sensor (PC23) [10] Duplex Unit Lower Transport Sensor (PC25)
[2] Switch Back Unit Sensor (PC26) [11] Sub Hopper Solenoid (SL1)
[3] Duplex Unit Upper Transport Sensor (PC24) [12] AC Power Source
[4] Paper Exit Sensor (PC4) [13] Main Power Switch (S1)
[5] Fusing Roller Thermostat (TS1) [14] Main Hopper Solenoid (SL2)
[6] Bypass Lift Sensor (PC29) [15] Sub Hopper Empty Switch (S4)
[7] Right Lower Door Sensor (PC3) [16] Right Side Door Interlock Switch 1 (S2)
[8] Bypass Paper Empty Sensor (PC18) [17] Switchback Solenoid (SL4)
[9] Bypass Pick-Up Solenoid (SL3)
4040F5C500DA
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
