Develop ineo 350 - Scanner Motor

Field Service Ver. 1.0 Aug. 2005 7. Other
77
bizhub 200/250/350Maintenance

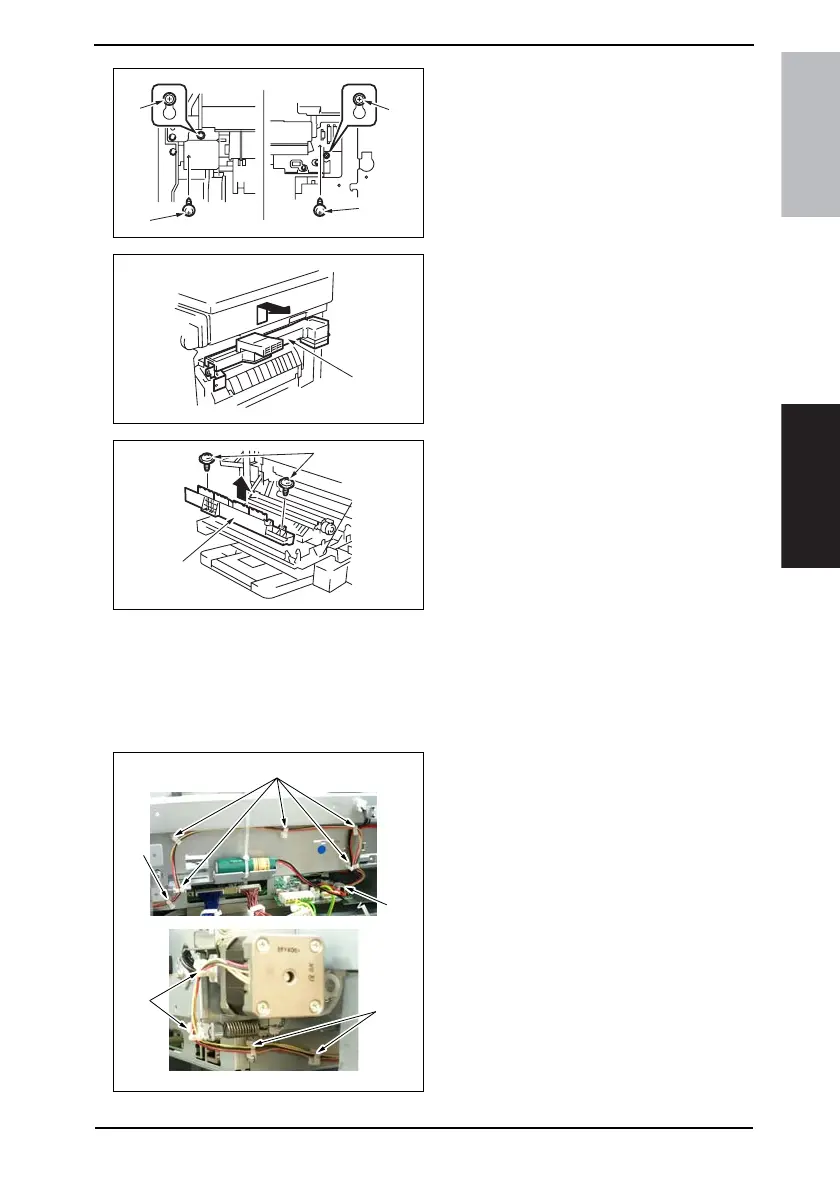

5. Loosen the screw [4] in front.
6. Remove the screw [5] in front.
7. Loosen the screw [6] in the back.
8. Remove the screw [7] in the back.
9. Remove the Switch Back Unit [8].
10. Remove two screws [9] and the
lower Switch Back Unit [10].
7.3.30 Scanner Motor
1. Remove the Upper Rear Cover.
☞ 50
2. Remove the IR Right Cover.
☞ 51
3. Remove ten wiring saddles [1] and
disconnect the connector [2].
4040F2C564DA
[4]
[5]
[6]
[7]
4040F2C565DA
[8]
4040F2C567DA
[10]
[9]
4040F2C699DA
[1]
[1]
[1]
[1]
[2]
