4. Periodical check Field Service Ver. 1.0 Aug. 2005
38
bizhub 200/250/350
Maintenance

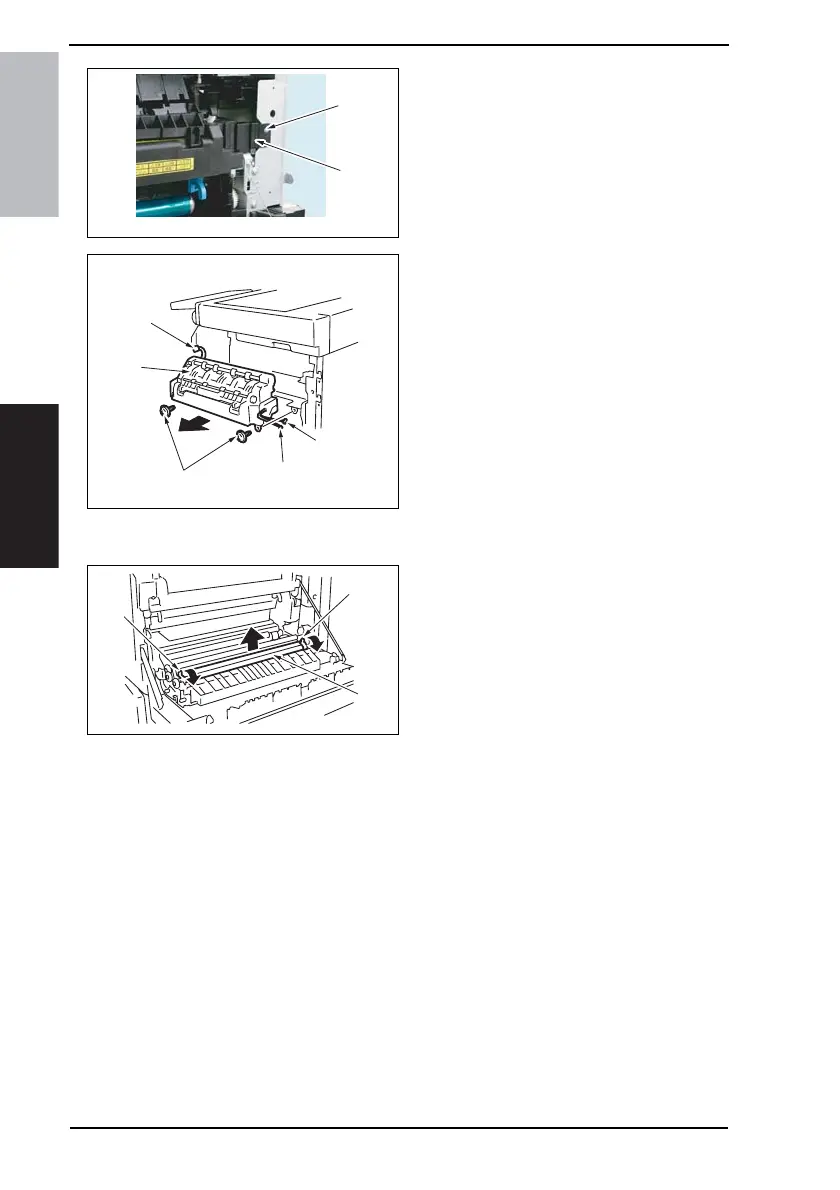

10. Remove the screw [9] and the Con-
nector Cover [10].
11. Remove two screws [11] and unplug
three connectors [12]. Then, remove
the Fusing Unit [13].
4.6.2 Replacement of the Transfer Roller Unit
1. Open the Right Door.
2. Pull down the knobs [1] forward and
remove the Transfer Roller [2].
4040F2C658DA
[9]
[10]
4040F2C566DA
[11]
[12]
[12]
[12]
[13]
4040F2C554DA
[2]
[1]
[1]
