3.2 Disassembly/Assembly/Cleaning list (Other parts)
3.2.1 Disassembly/Assembly parts list
3.3 Disassembly/Assembly procedure
3.3.1 Front Cover/Rear Cover/Original Feed Tray Rear Cover

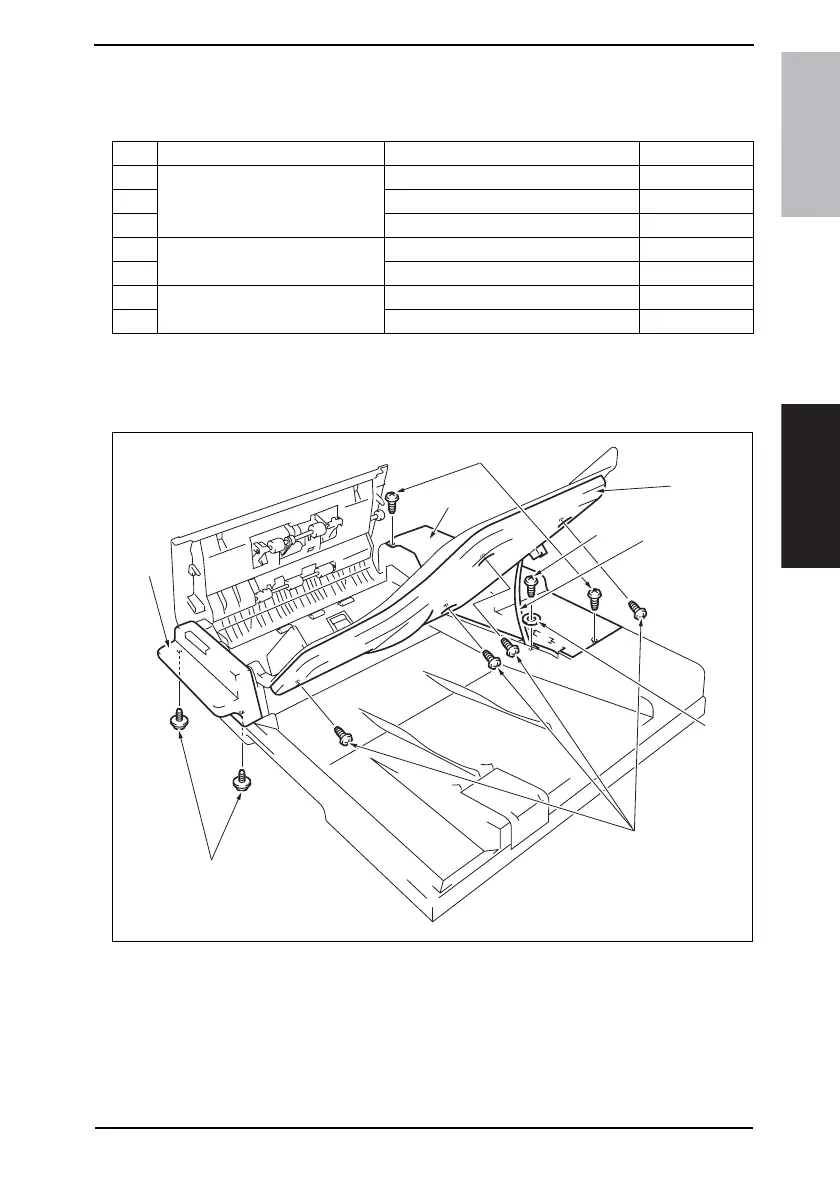

1. Remove two screws [1], and remove the Front Cover [2].
2. Remove two screws [3].
3. Lift up the Original Feed Tray, and remove the Rear Cover [4].
4. Remove the screw [5] and the washer [6], and remove the stopper [7].
5. Lift up the Original Feed Tray.
6. Remove four screws [8], and remove the Original Feed Tray Rear Cover [9].
No. Section Part name Ref.Page
1
Exterior parts
Front Cover
☞ 11
2Rear Cover
☞ 11
4 Original Feed Tray Rear Cover
☞ 11
5
Board and etc.
Main Control Board
☞ 12
6 Variable Resistor
☞ 12
7
Others
Complete Stamp Unit 2
☞ 14
8 Replace Stamp 2
☞ 15
4344F2C513DA
[8]
[9]
[1]
[3]
[4]
[5]
[6]
[7]
[2]
