Develop ineo 350 - Stapler Unit

4. Other Field Service Ver. 1.0 Aug. 2005
16
FS-508/PU-501/OT-601
Maintenance

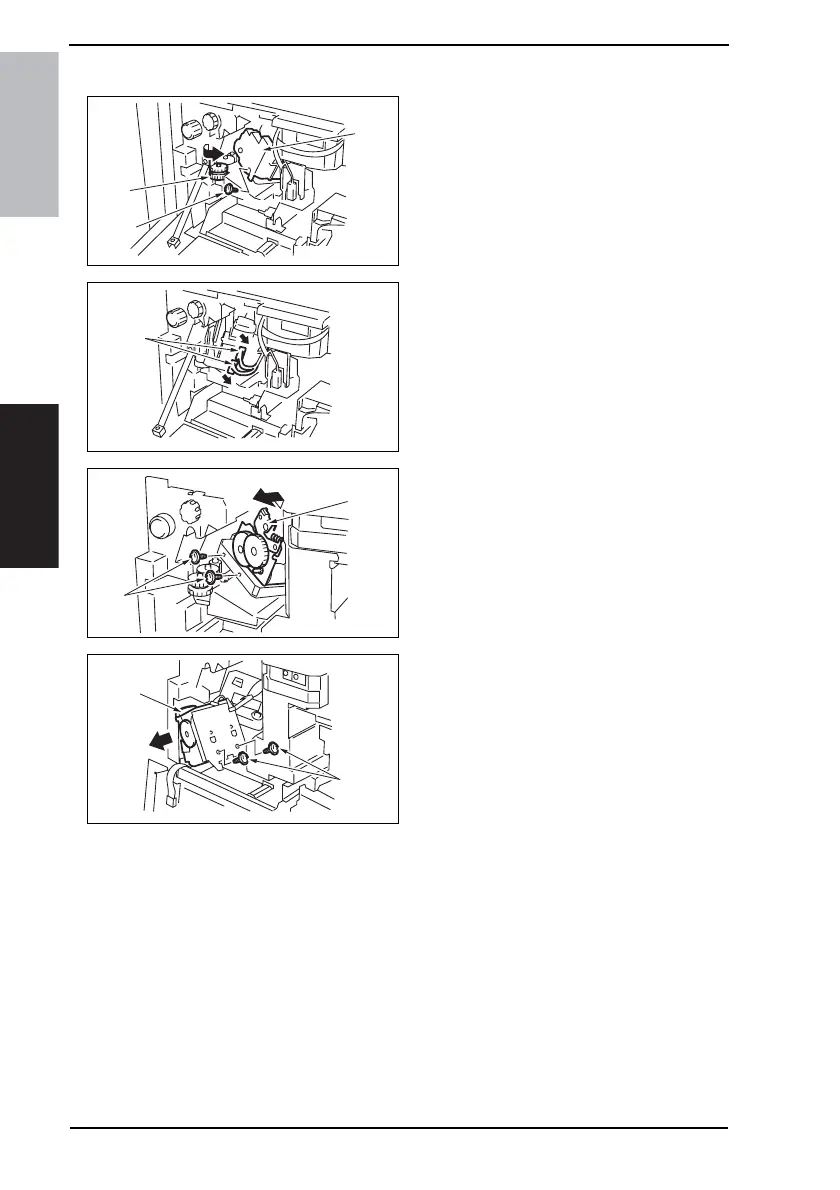

4.3.11 Stapler Unit
1. Open the Front Door.
2. Turn the dial [1], and move the sta-
pler forward.
3. Remove the Staple Cartridge.
4. Remove the screw [2], and remove
the cover [3].
5. Disconnect two connectors [4].
6. Remove two screws [5], and remove
the Stapler Unit Assy [6].
7. Remove two screws [7] and remove
the Stapler Unit [8].
4349F2C512DA
[2]
[3]
[1]
4349F2C513DA
[4]
4349F2C514DA
[5]
[6]
4349F2C515DA
[7]
[8]
