Develop ineo 350 - Mt-501 (Option)

Field Service Ver. 1.0 Aug. 2005 23. Parts layout drawing
285
bizhub 200/250/350Appendix
23.10 MT-501 (Option)

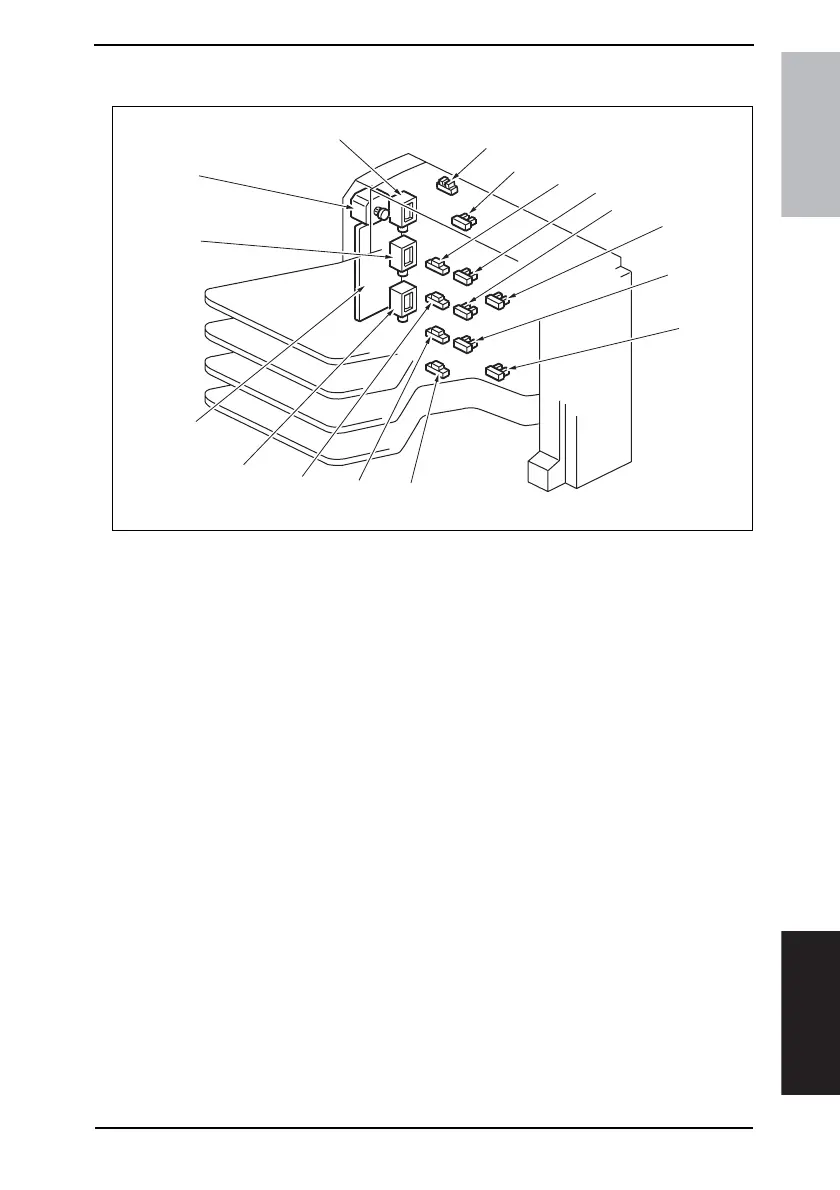

[1] Cover Open/Close Sensor (PC11-MK) [9] Paper Detection Sensor 1 (PC1-MK)
[2] Paper Full Detection Sensor 4 (PC8-MK) [10] Paper Detection Sensor 2 (PC2-MK)
[3] Paper Detection Sensor 4 (PC4-MK) [11] Paper Detection Sensor 3 (PC3-MK)
[4] Paper Full Detection Sensor 3 (PC7-MK) [12] Bin Entrance Switching Solenoid 1 (SL1-MK)
[5] Paper Full Detection Sensor 2 (PC6-MK) [13] Main Control Board (PWB-A MK)
[6] Upper Transport Sensor (PC9-MK) [14] Bin Entrance Switching Solenoid 2 (SL2-MK)
[7] Paper Full Detection Sensor 1 (PC5-MK) [15] Transport Motor (M1-MK)
[8] Lower Transport Sensor (PC10-MK) [16] Bin Entrance Switching Solenoid 3 (SL3-MK)
