Develop ineo 350 - Eeprom; Remounting of the EEPROM

7. Other Field Service Ver. 1.0 Aug. 2005
110
bizhub 200/250/350
Maintenance
7.8 EEPROM

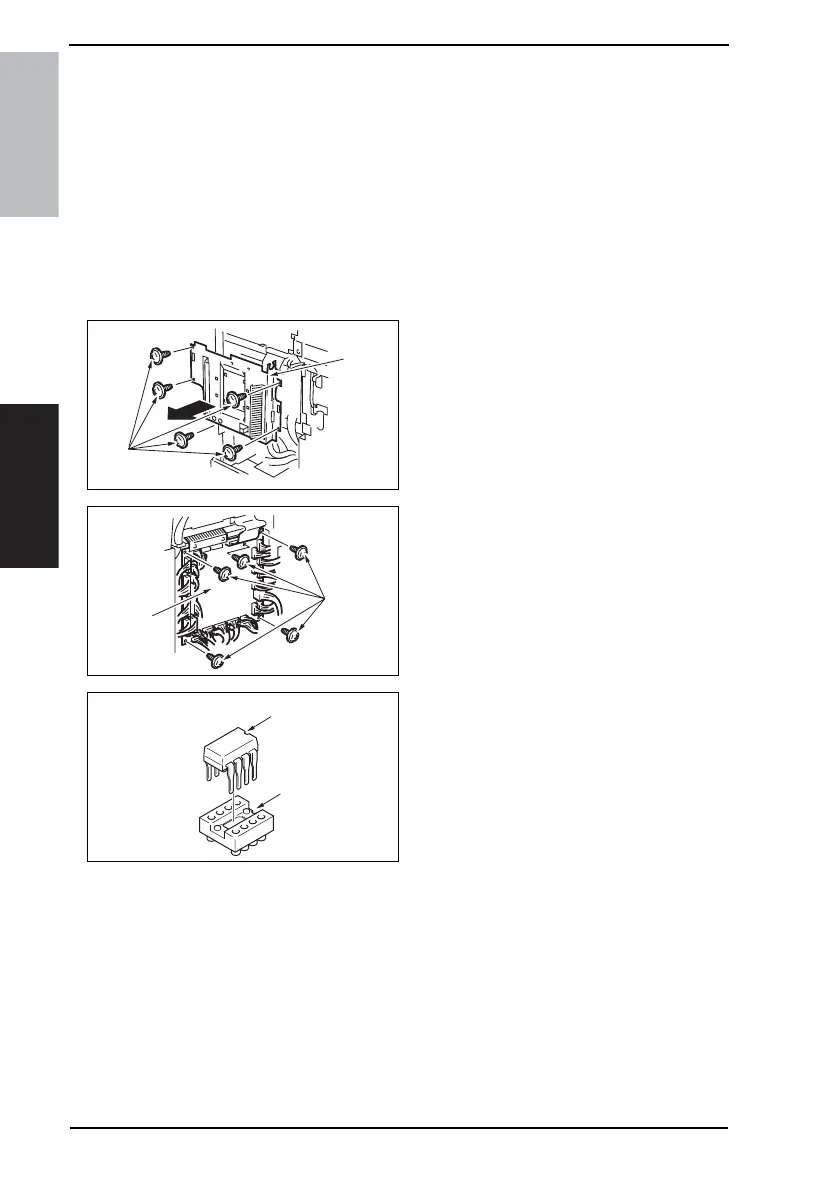

7.8.1 Remounting of the EEPROM
NOTE
• When the Mechanical Control Board is replaced with a new one, be sure to
demount the EEPROM (IC3A) from the old Mechanical Control Board and mount it
on the new Mechanical Control Board.
1. Remove the Upper Rear Cover.
☞ 50
2. Remove the Rear Cover.
☞ 51
3. Remove five screws [1] and Mechan-
ical Control Board Cover [2].
4. Unplug the all connectors.
5. Remove five screws [3] and Mechan-
ical Control Board [4].
6. Demount the EEPROM (IC3A) from
the new Mechanical Control Board.
7. Mount the EEPROM (IC3A) from the
old Mechanical Control Board to the
new Mechanical Control Board.
NOTE
• Note the alignment notch on the
EEPROM (IC3A) when mounting the
IC.
4040F2C561DA
[2]
[1]
4040F2C562DA
[3]
[4]
4040F2C501DA
A
A
